Tractor Trailer for Bruder – Laser Cut Model

🚜 Tractor Trailer for Bruder – Laser Cut Model (3×A4)

Title:

Wooden Tractor Trailer for Bruder – 3×A4 Laser Cut Kit

Description (max 500 characters):

A laser-cut wooden trailer designed for Bruder tractors, spread across 3×A4 sheets. The model includes all required parts, a hinged rear door, and a drawbar for tractor connection. Recommended build uses triple wheels glued together for strength, with thicker wooden skewers or rods as wheel axles. Perfect as a toy extension or model project.

Specifications:

Material: 3 mm birch plywood

Size: Fits 3×A4 laser cutting sheets

Features:

Hinged rear gate (openable)

Drawbar for tractor connection

Wheel axle ready (use stronger skewers/rods)

Recommended triple wheel layers glued for durability

Assembly: Glue required for parts and wheels

Tools & Materials:

xTool S1 (20W)

3 mm birch plywood (3×A4 sheets)

Strong wooden skewers / rods for wheel axles

Wood glue

Optional: Sandpaper, paint, clear varnish

Laser Settings (xTool S1 – 20W):

Cutting: 100% power, 6–8 mm/s, Air Assist ON

Engraving (optional details): 35–40% power, 120 mm/s, 318 LPI

Step-by-Step Instructions:

Prepare the design

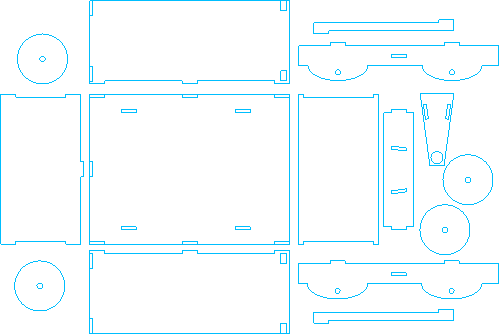

Import the trailer vector file (3×A4) into xTool Creative Space.

Check scale matches Bruder tractor proportions.

Cut all parts

Use 3 sheets of 3 mm plywood.

Keep small pieces organized.

Assemble the base

Glue the side panels, bottom, and front panel.

Attach the hinged rear gate.

Wheels & axles

Glue wheels in triple layers for strength.

Insert axles using wooden skewers or rods.

Drawbar connection

Assemble and attach the drawbar for Bruder tractor hook-up.

Finishing

Sand edges, paint or varnish if desired.

Test hinge and rolling function.

Uses:

Bruder tractor extension trailer

Toy farm equipment

Laser-cut wooden model project

Educational assembly kit
