Gymnast Flip Toy
Make It Move Contest
Instruction
Information
Combining precise laser engineering with classic mechanical toy design, this project creates the flipping gymnast toy.
Design & Engraving: Laser cut and detailed using the xTool F1 laser engraver.
Mechanism: Mounted onto dual control sticks.
Functionality: By applying manual pressure to the lower handles, the top mechanism twists and releases, driving the articulated gymnast through dynamic somersaults and acrobatic flips.
Instruction

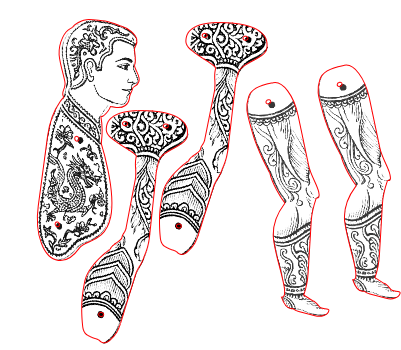

Step1: Making the Parts of the Man
Download the file and open it.
There are 2 canvas for making the parts.
1st one is for marking one side and cutting out the parts, 2nd one is for marking the other side.
The moving man is made from 3mm basswood.
Once it is opened , you will be able to see 2 canvas, open the 1st one and properly align, click on start. this will engrave the man and cut out the man.
Once its completed. Open the 2nd canvas, put it board upside down horizontaly and engrave the other side of the man.
Step2: Tie the pieces.
Tie the Pieces like shown in the image using a plastic thread. Make sure it is freely Moving.
Step3: Final Step.
Take 2 bamboo sticks, seperate it with a piece of bamboo stick in an H shape, as shown in the image.
Tie the Engraved human excatly same as the image.
When you apply pressure on the bottom, it will spin.
