Personalized Mom Wooden Keychain with Children's Names.

Instruction

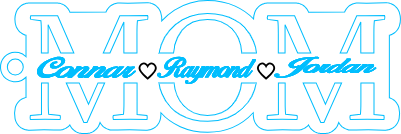

Mom Keychain1.xs
Mom Keychain1
.xs
Application scenario
Laser processing (50min)
Machine & module
xTool M2
20W
Compatible xTool Machine
P3
F2
F2 Ultra UV
F2 Ultra(Single)
F2 Ultra
F1 Ultra
F1
F1 Lite
S1
P2S
P2
M1 Ultra
M1
D1 Pro 2.0
D1 Pro
D1
Laserbox
Material used
3mm Walnut Plywood
gift
8
394

Information

      I made this keychain for myself out of Walnut plywood.


Instruction

1

Step1

Use any font you would like for the word Mom and the Kids names. Create an offset for external only and be sure to edit out all the interior nodes until satisfied with how the offset looks and set output to cut. I prefer to have a solid background. I made a rectangle that was longer than the word mom and horizontally centered it over the word mom and subtracted to cut the word mom in half. I then centered mom back over the offset and set it to cut. I placed the kid's names and selected both engrave and score. I find that the engraving really becomes much more pronounced when scoring it as well. I then placed a heart between each name and selected cut. I then grouped everything except the offset and moved it to the side. I made the hole by making a circle .2 inches and did an offset of .039 then created a compound path and selected cut. I placed the circle on the offset where I liked it making sure it was vertically centered and combined them. I then placed the offset back over the wording making sure it was centered appropriately and grouped it together.
