Flying pterodactyl dinosaur as a mobile for the children's room with 70cm wingspan

Instruction

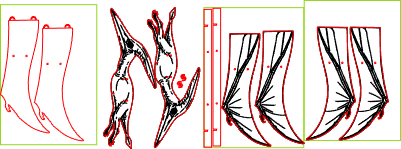

Pteranodon flying.xs

Pteranodon flying

.xs

Show 1 more

Application scenario

Laser processing (70min)

Machine & module

xTool P3

80W

Compatible xTool Machine

M2

10W, 20W

F2 Ultra UV

5W

F2

15W

F2 Ultra

40W

F1 Ultra

20W

M1

5W, 10W

D1

5W, 10W, 20W

D1 Pro

5W, 10W, 20W, 40W

P2

55W

F1

10W

S1

10W, 20W, 40W

M1 Ultra

10W, 20W

P2S

55W

Material used

1/8"(3mm) Birch Plywood

gift

127

2084

Information

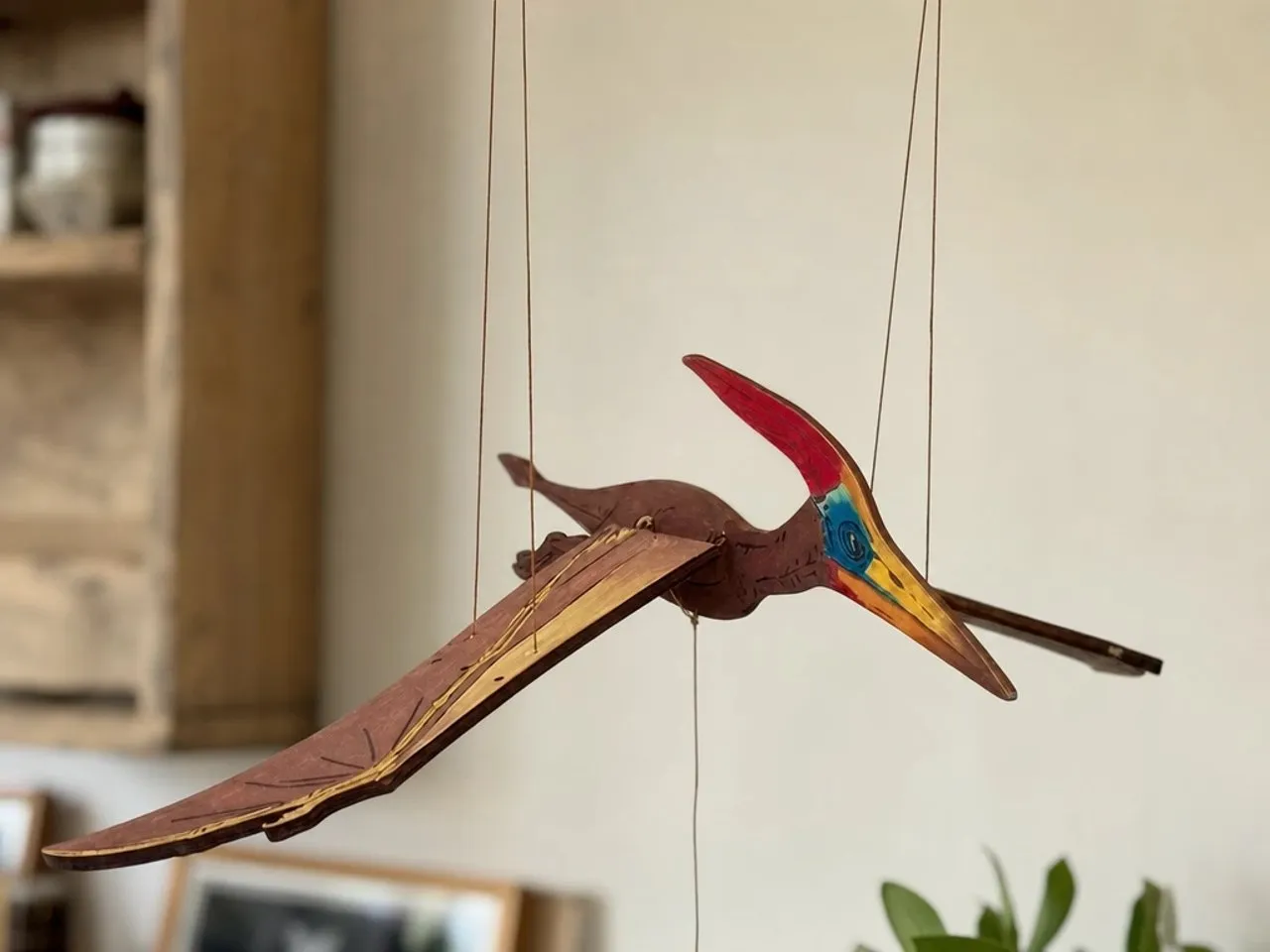

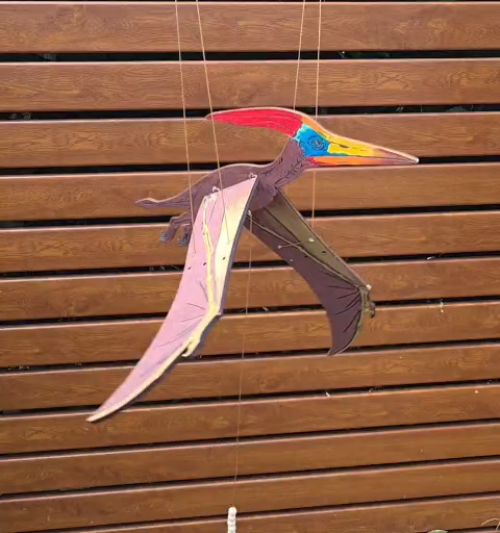

      A majestic floating pterodactyl with a fantastic wingspan of 70 cm. I painted the model with acrylic pencils. But also in nature, the mobile is an absolute eye-catcher and a must-have for every dinosaur fan

Instruction

1

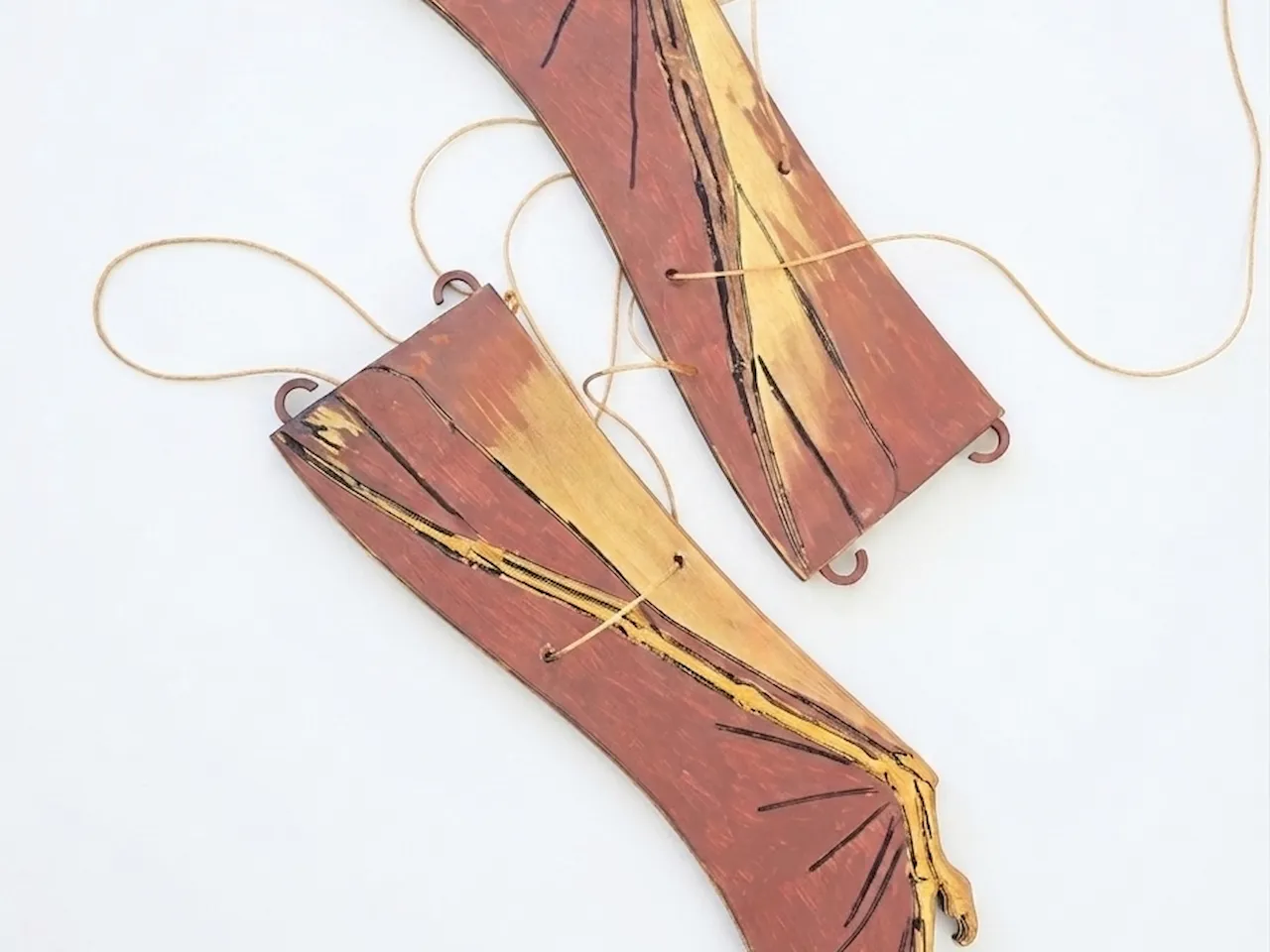

Step1

Flying pterodactyl dinosaur as a mobile for the children's room with 70cm wingspan instruction: step 1 -

Preview

First, the wings are glued. The wings are made up of 3 layers:

1st layer: Engraved wings

2nd layer: Wings with eyelets (without engraving)

3rd layer: Engraved wings

2

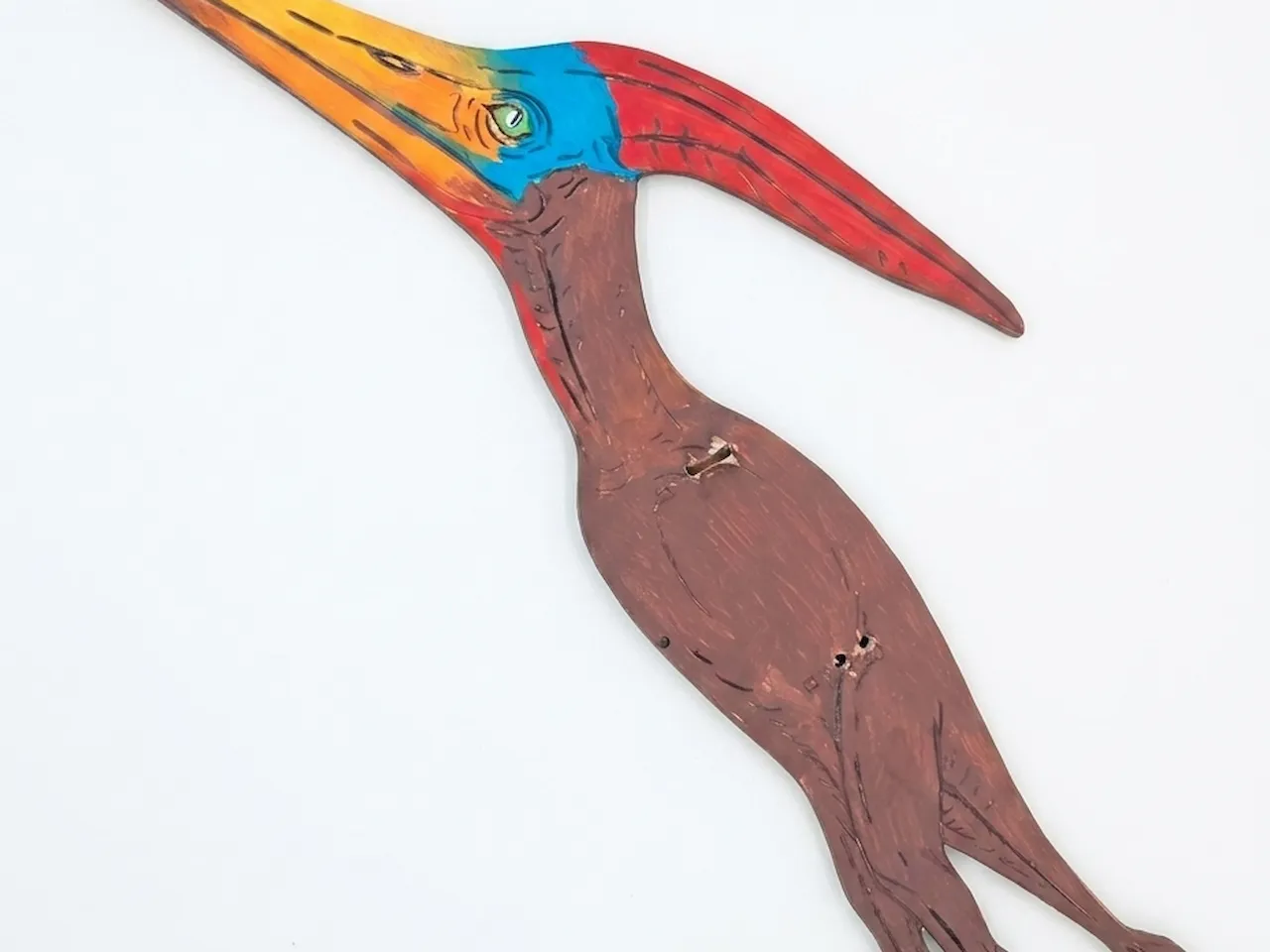

Step2: Bird body

Flying pterodactyl dinosaur as a mobile for the children's room with 70cm wingspan instruction: step 2 - Bird body

Preview

Then glue the two bodysuits of the bird on top of each other.

3

Step3: Wings

Flying pterodactyl dinosaur as a mobile for the children's room with 70cm wingspan instruction: step 3 - Wings

Preview

As soon as the front eyelets are firmly glued, hook the wing in and glue the rear eyelet. Attention: Do not insert the eyelet too deep - a wing should also be mounted on the opposite side.

4

Step4: Suspension

Now the wings are provided with a nylon cord or similar and a string with a wooden bead is attached to the belly of the bird.

Hook the loops into the crossbar, done.
