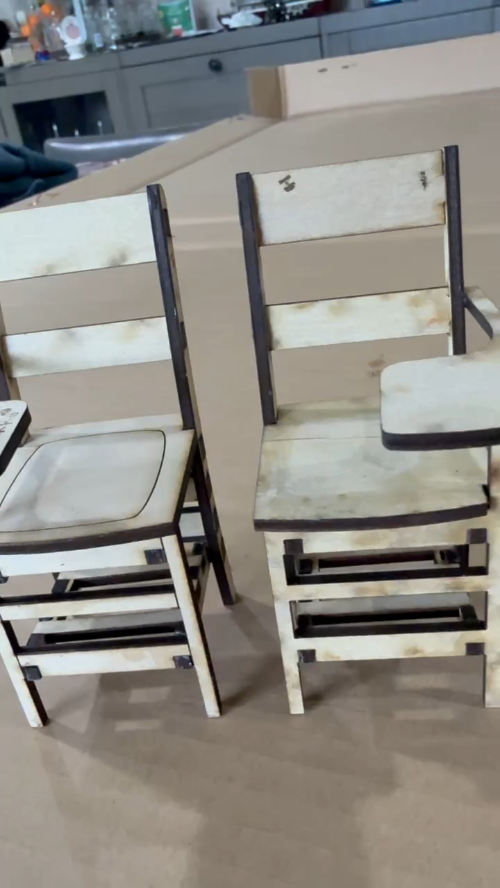

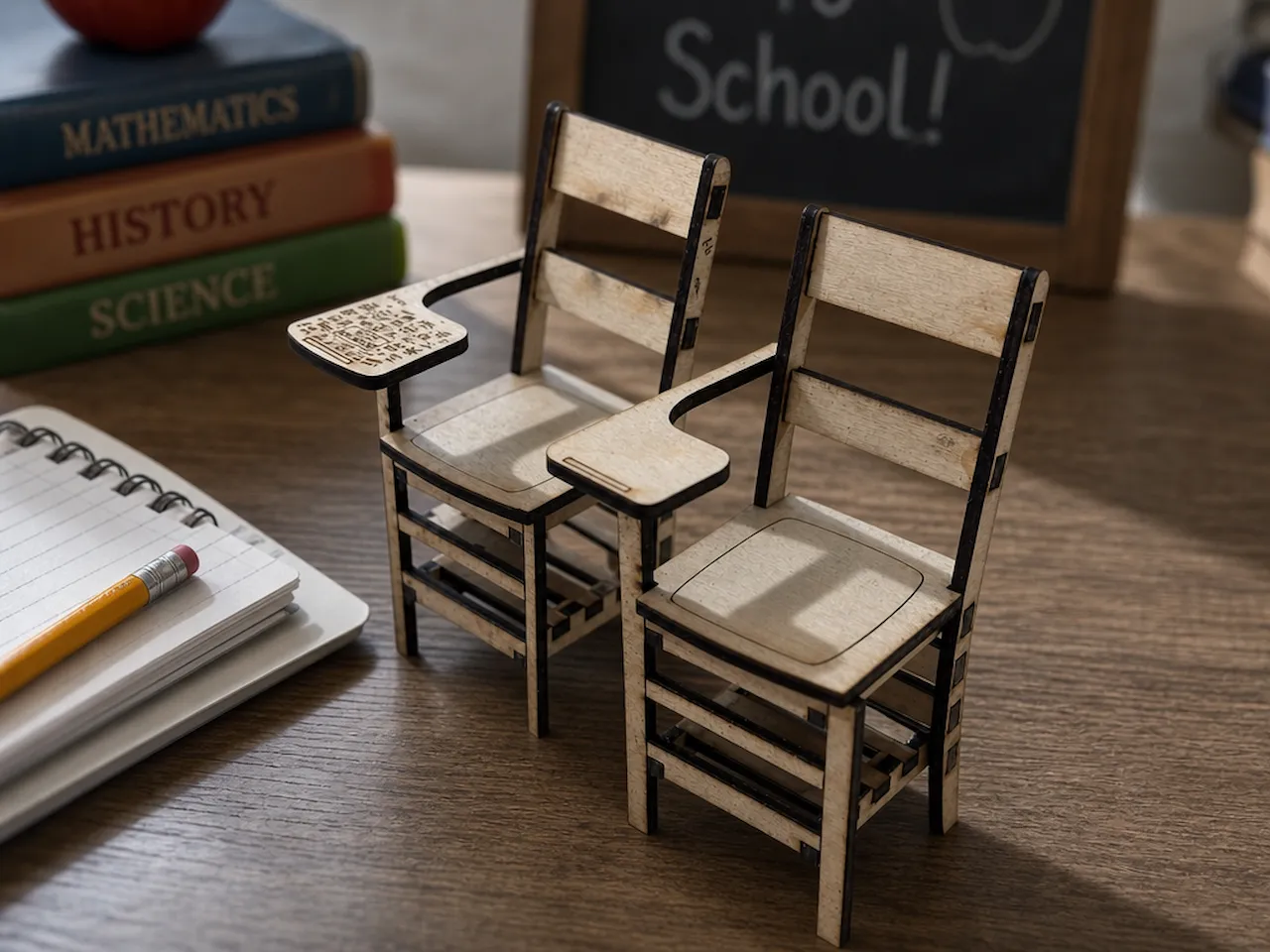

Miniature wooden school college desk chairs with attached writing tablets

Instruction
SchoolDeskOld(2).xcs
SchoolDeskOld(2)
.xcs
Application scenario
Laser processing
Machine & module
xTool S1
40W
Compatible xTool Machine
P3
F2
F2 Ultra UV
F2 Ultra(Single)
F2 Ultra
F1 Ultra
F1
F1 Lite
P2S
P2
M1 Ultra
M1
D1 Pro 2.0
D1 Pro
D1
Laserbox
M2
Material used
1/8"(3mm) Birch Plywood
gift
78
1222

Information

      Everyone remembers these desks... where homework got ignored, notes got passed, and masterpieces were carved into the desktop instead of written on paper.
This miniature laser-cut school desk is my tribute to those classroom memories. Build it as a clean, brand-new desk or choose the detention version complete with the kind of desktop artwork every school seemed to have.  Just flip the front panel and desktop for both  left and right-handed versions because those little details reallly matter, especially if you’re paying close enough attention to a “lefty” to make them feel seen.

It's a quick, satisfying build that's sure to spark a few "I remember those!" conversations.

#2026backtoschoolcontest

https://vt.tiktok.com/ZSXpeBDB7/






Instruction

1

Step1: Load desired file and process

Miniature wooden school college desk chairs with attached writing tablets instruction: step 1 - Load desired file and process
Preview
Miniature wooden school college desk chairs with attached writing tablets instruction: step 1 - Load desired file and process
Preview

Choose your desire desk style, the blank first day of school new desk,… or the used detention desk of despair!! 😈


https://vt.tiktok.com/ZSXpeBDB7/



 Load file and process on a piece of 3mm birch.

Xtool S1
Processing bed tray in top position.
Cut Speed 90% 11mm/sec.
Engrave 40% 200mm/sec.
Score 60% 50mm/sec

2

Step2: Assemble Chair

Lay out chair piece and familliarize yourself with the assembly by watching video.

Begin by assembling the back of the chair, followed by the front and the book shelf. Allow glue to set partly.

 With glue setting, assembly the front and back halves of the chair together.
Allow glue to partly set once again.

 Stand chair up and make sure it is straight and square then glue your seat and desktop in place.

For a left handed chair, simply reverse the chair front so the desk support is on the left side. Design will work in either direction 😉
