2 Hearts Colors Aluminum Medallion F2 IR
Instruction

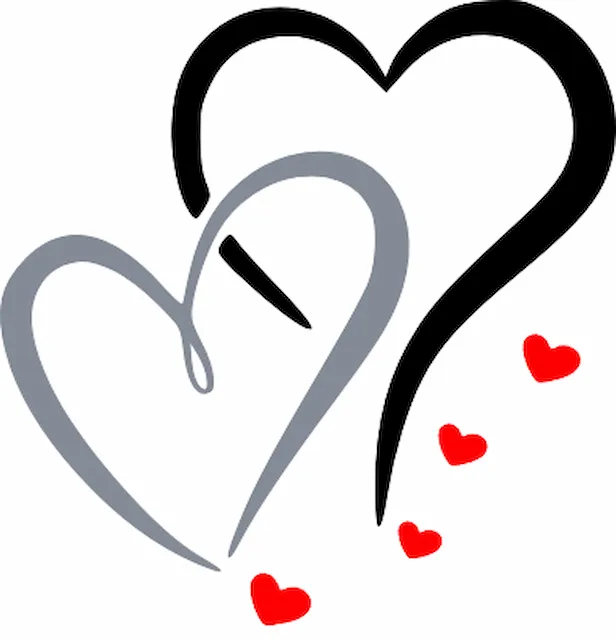

Double coeurs
.xs
Application scenario
Laser processing (18min)
Machine & module
xTool F2
5WCompatible xTool Machine
F2 Ultra UV
F2 Ultra（Single）
F2 Ultra
Material used
1/32"(0.5mm,Ga.25) 1060 Aluminum
12
580
Instruction
1
Step1: Prerequisites
-- Tools and materials -- - xTool F2 (5W IR module) - Aluminum medallion - xTool Creative Space (XCS) - Isopropyl alcohol - Microfiber cloth
Set the infrared preheat to "ON" in the F2 settings
2
Step2: Preparation
- Clean the aluminum medallion with ISO alcohol and a microfiber cloth (Smooth Side)
- Open the attached file in xTool Studio, and enable IR warm-up
- Autofocus on the medallion
- On the left, identify the 2 object lists "1 Color" and "2 Black"
- Select the 2 lists to resize and position "2 Hearts" correctly on your medallion
3
Step3: Gravure des couleurs 1/2
- Enable the entire "1 Colors" listDisable
- the "2 Black" listStart
- the engraving
- After engraving, leave the medallion in place in the F2, and disable the entire "1 Colors" list
4
Step4: Gravure des contours en noir 2/2
- Activate the "2 Black" listCheck
- that the entire "1 Colors" list is disabled
- Start burning
- If you find that the black is not deep enough for you, restart "2 Black"
5
Step5: Result
Preview
Take the medallion out of the F2 and clean the entire engraved side with ISO alcohol and a microfiber.
Dry well and contemplate the result.
Good engraving
