Wooden Box for Vertical Bar Pendant

Instruction

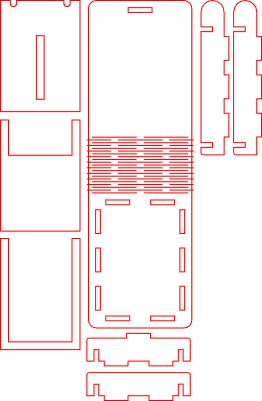

Schmuckkästchen - Vertical Bar

.xs

Application scenario

Laser processing (40min)

Machine & module

xTool S1

40W

Compatible xTool Machine

F2 Ultra UV

F2 Ultra（Single）

F2 Ultra

F1 Ultra

F1 Lite

P2S

M1 Ultra

D1 Pro 2.0

D1 Pro

Laserbox

Material used

1/8"(3mm) Basswood Plywood

Holzleim

608

Information

      This simple wooden box is the perfect gift wrapping and at the same time a stylish storage for Vertical Bar necklaces. The box can be easily made of 3 mm thick plywood. It has a hinged lid and plug connections.
For a secure hold, some wood glue should be used for the plug connections.
For further individualization, a personal engraving can be applied, e.g. on the inside or outside of the lid.

Inside there is a shapely recess for a vertical bar necklace, which holds the piece securely and elegantly displays.

Instruction

Step1

Preview

In the first step, the five required parts are laid out for the wooden box.

Step2

Preview

In the second step, the two side panels are inserted into the bottom/lid.
It is recommended to put some wood glue on the contact surfaces apply.

Step3

Preview

In the third step, the front and back are inserted into the side panels and the bottom/lid. Please make sure that the part with the additional recess on the top is mounted at the front.
It is recommended to apply some wood glue to the contact surfaces.

Step4

Preview

In the last step, place the three inserts in the wooden box.
Please make sure that the two inserts with the cutouts mounted the right way around so that the chain can later be guided down through the small recesses of the visible insert.
