The Mobius ring

Instruction

莫比乌斯环图纸

.dxf

Application scenario

Laser (180min)

Machine & module

xTool P2

50W

Material used

1/8"(3mm) Basswood Plywood

3074

Information

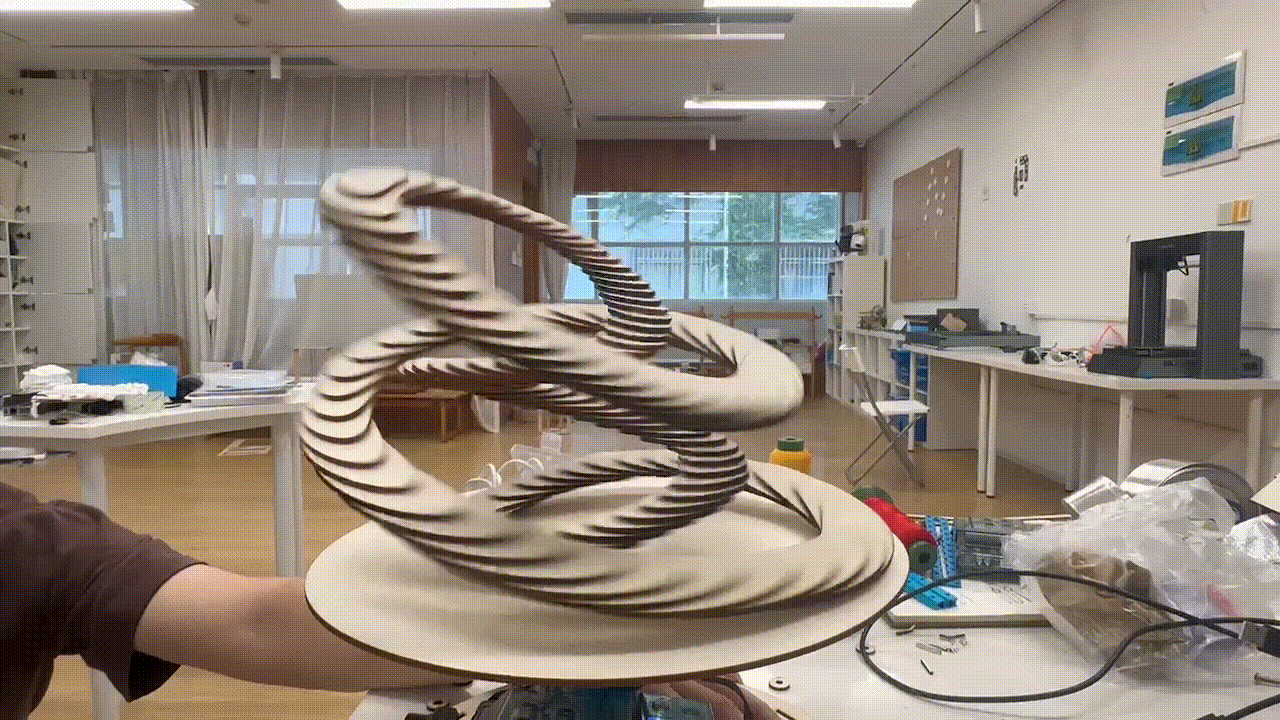

      The Mobius ring was designed with the aid of Rhino modeling, and was sliced, and the slices were connected successively according to the number to form the Mobius ring, and it was fixed on the disc equipped with a motor at the bottom. When the disc was rotated, a visual effect of infinite circulation would appear.

Instruction

Step1: The six drawings were cut out of A4 size 3mm basswood boards and arranged in numbered order

Preview

Cut six planks, according to the 3mm basswood planks of A4, in the order of numbering

Step2: They are connected in turn according to the model and number

Preview

According to the model photo and number, the slices are connected one by one to form a Möbius ring

Step3: Mount the motor on the disc

Preview

The motor is mounted on the disc, and the child core pie and its expansion board are installed, and the program is set so that the disc can be rotated.
