[Laser cut and engrave] Happy Birthday Piggy Bank Money Box — Project made with xTool P2S machine for Birthday.

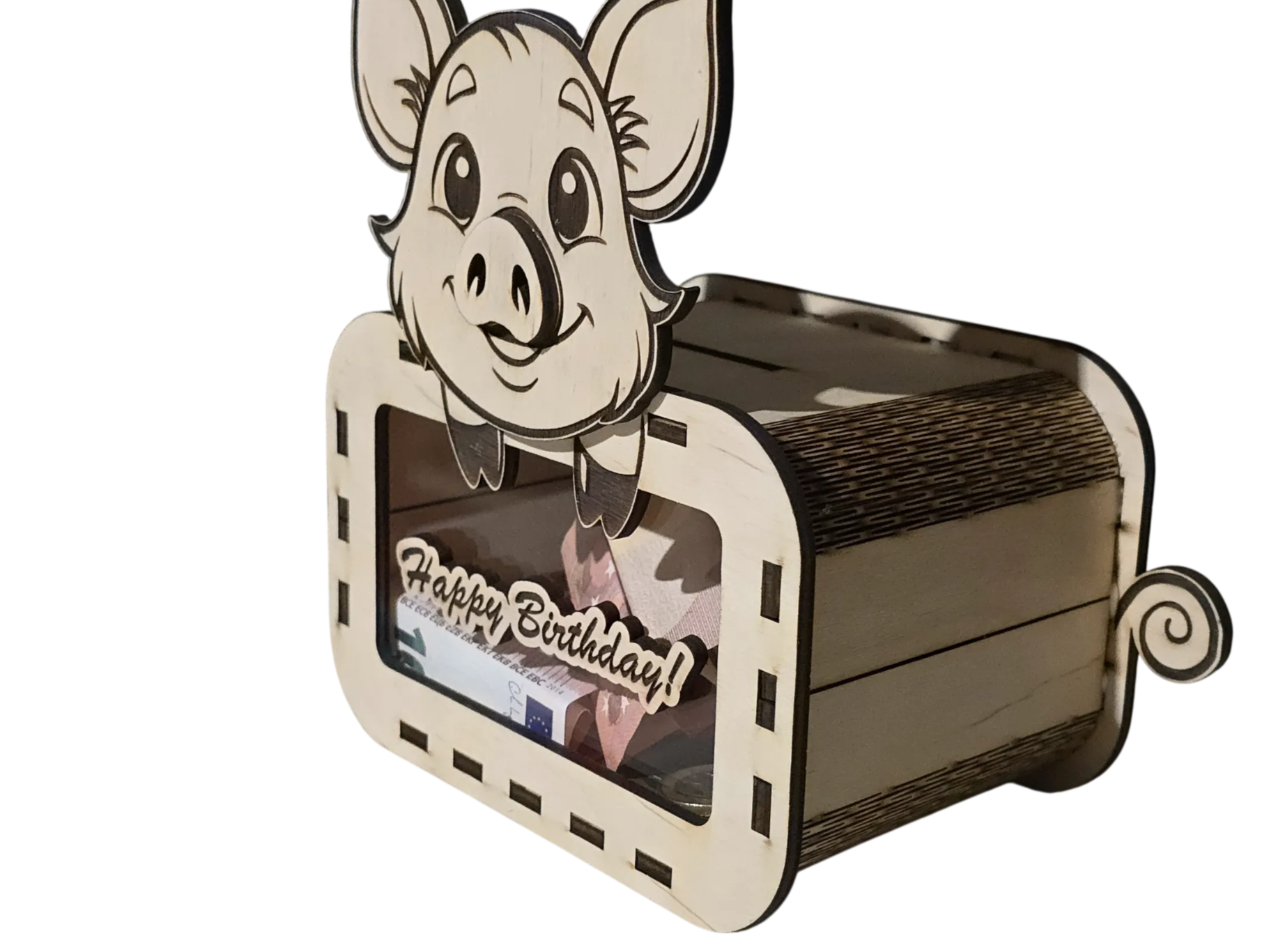

Happy Birthday Piggy Bank Money Box

Craft the Birthday Contest

Instruction

PIGPIG

.xcs

Application scenario

Laser processing

Machine & module

xTool P2S

55W

Material used

Birch Wood

3mm

4mm

258

Information

      🐷 Customizable Piggy Bank – Laser Cut Design

Hi everyone! 😊

I'm excited to share my latest laser-cut project: a cute and fully customizable piggy bank that's perfect as a birthday gift, baby shower gift, or a unique keepsake for any age.

✨ Features:

Compatible with 3 mm and 4 mm plywood
Easy to personalize with names or custom text
Clean, beginner-friendly assembly
Designed for efficient laser cutting

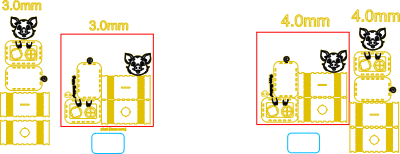

To make production faster, I also created an optimized cutting version where shared cutting lines are merged. This reduces unnecessary laser movements, shortens cutting time, improves material efficiency, and results in a cleaner workflow.

I put a lot of care into making this design both practical and fun to customize. I hope you enjoy it as much as I enjoyed creating it!

Thank you for checking it out, and good luck to everyone participating! ❤️

https://www.instagram.com/p/Dae9p6ljWvV/?utm_source=ig_web_copy_link&igsh=MzRlODBiNWFlZA==

CrafttheBirthdayContest

Instruction

Step1

Preview

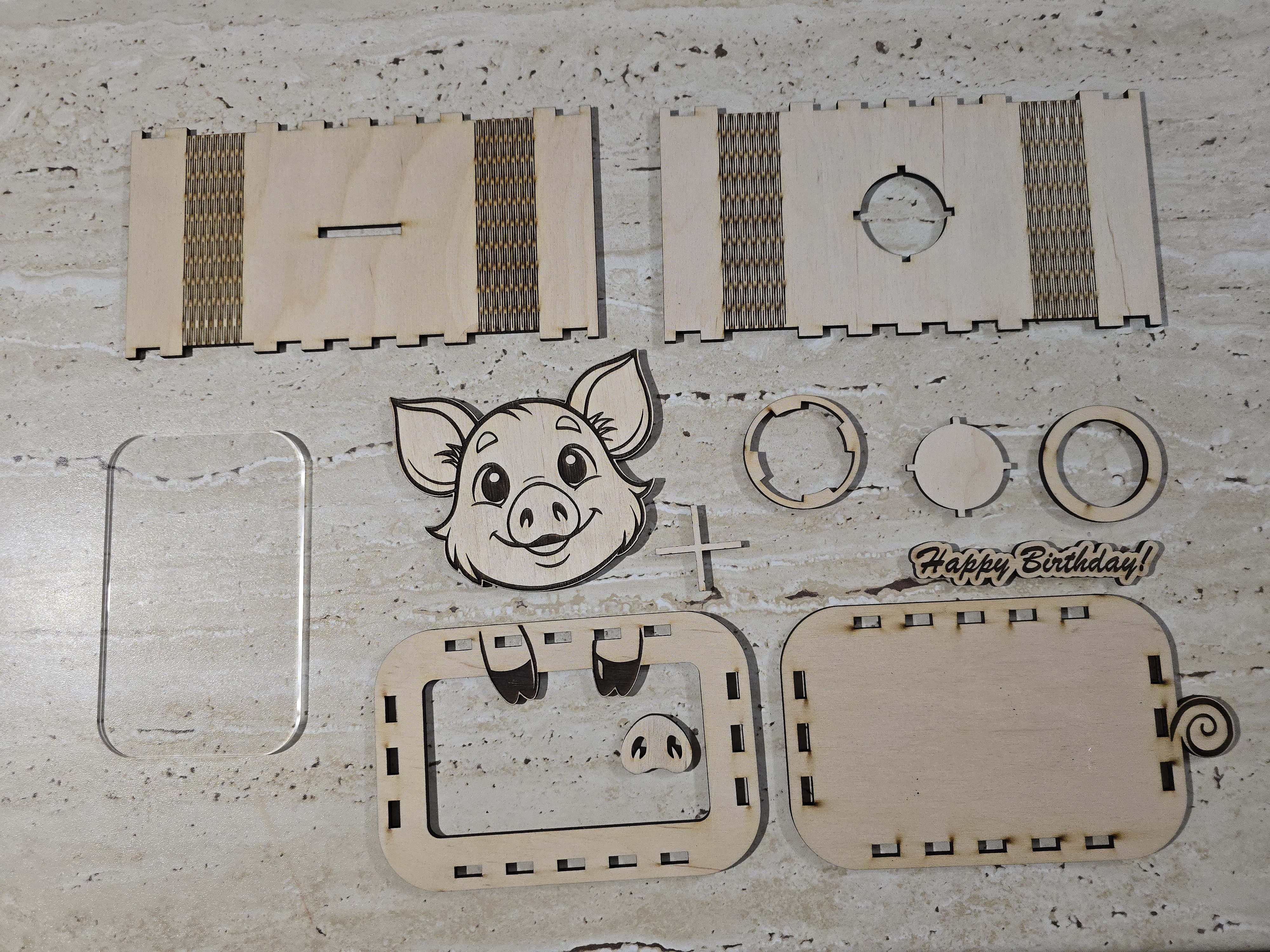

All the parts required for the bushing were laser-cut and engraved.

Step2

Preview

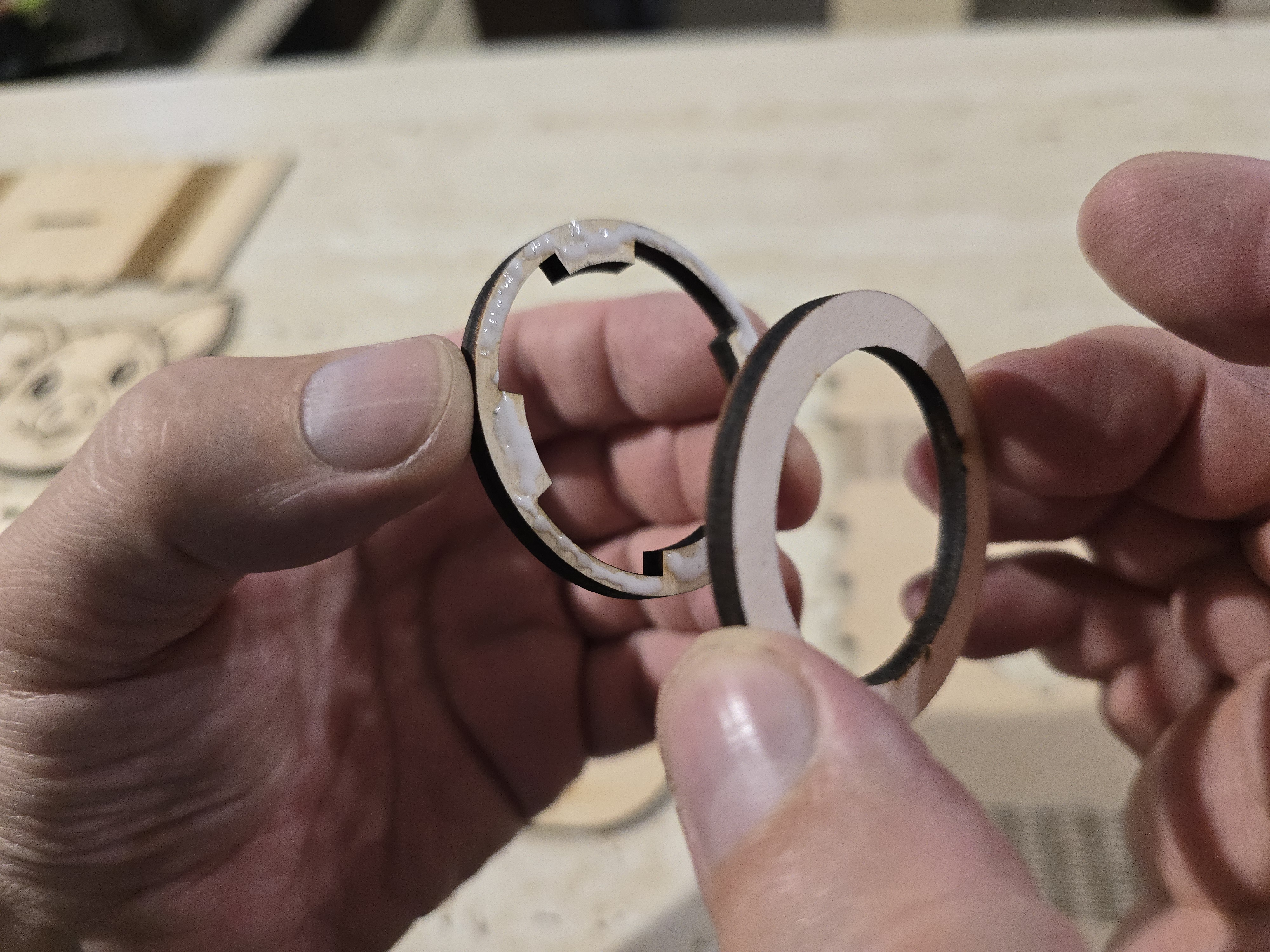

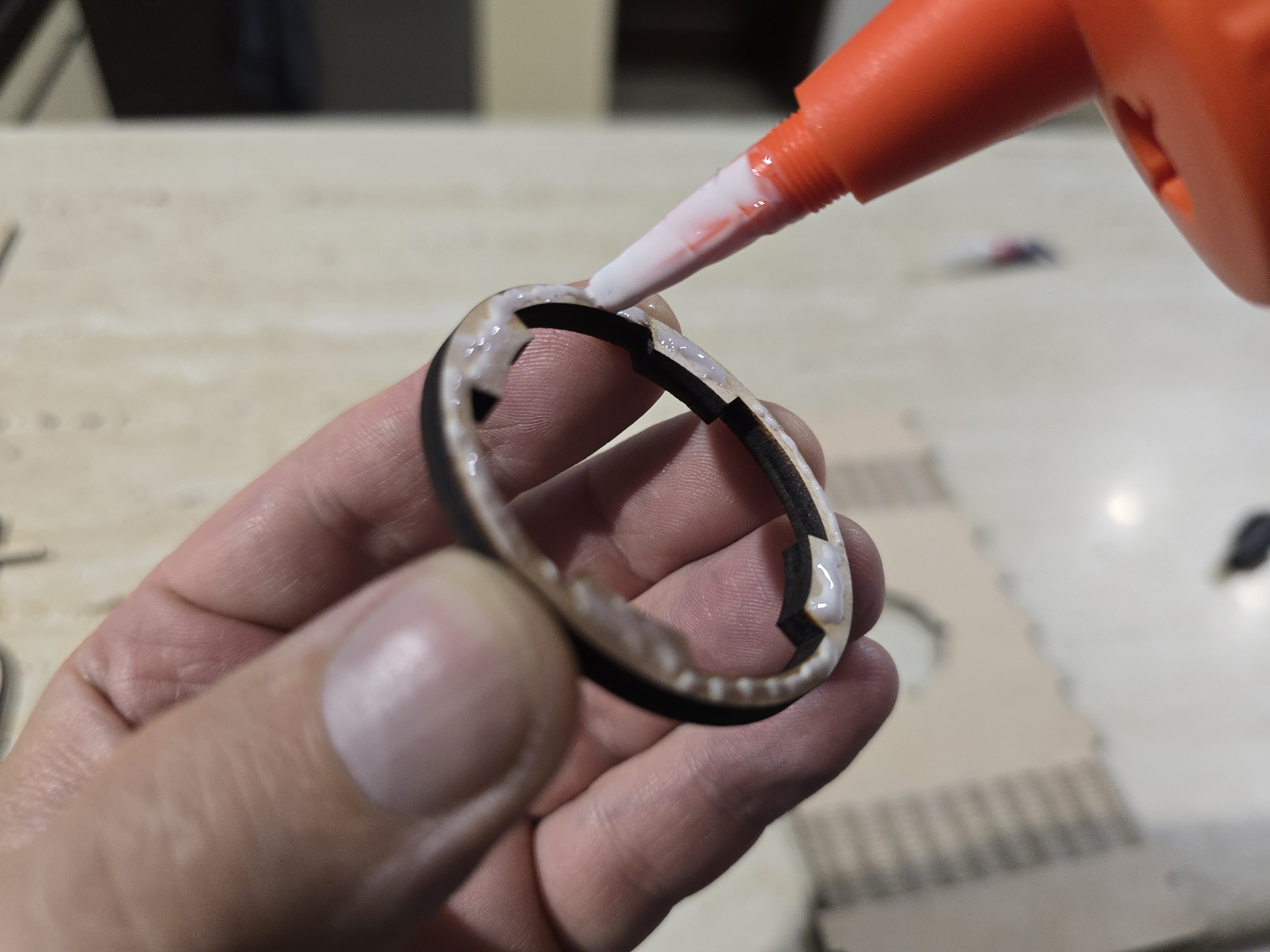

I applied wood glue to the first component and assembled the parts together.

Step3

Preview

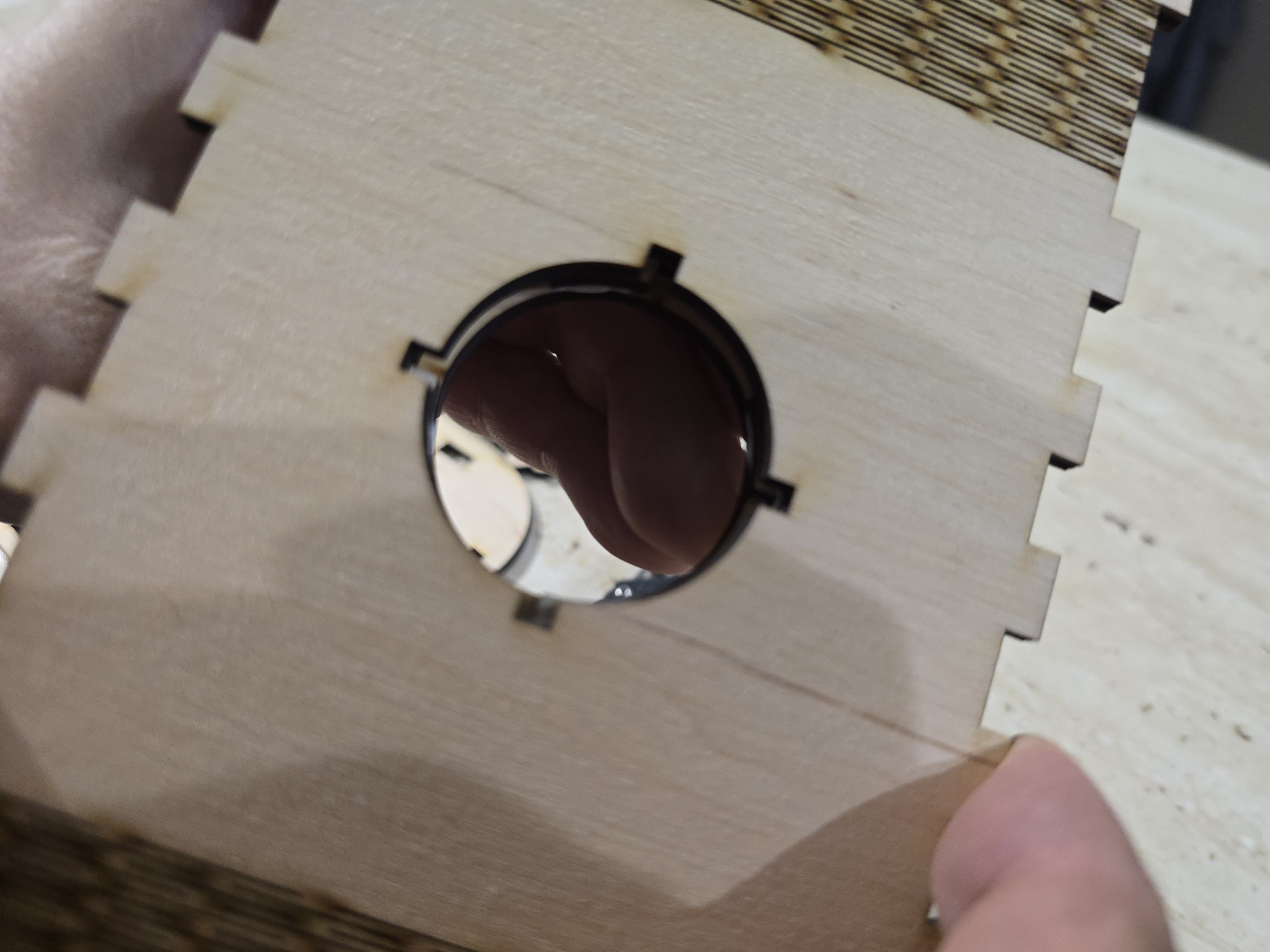

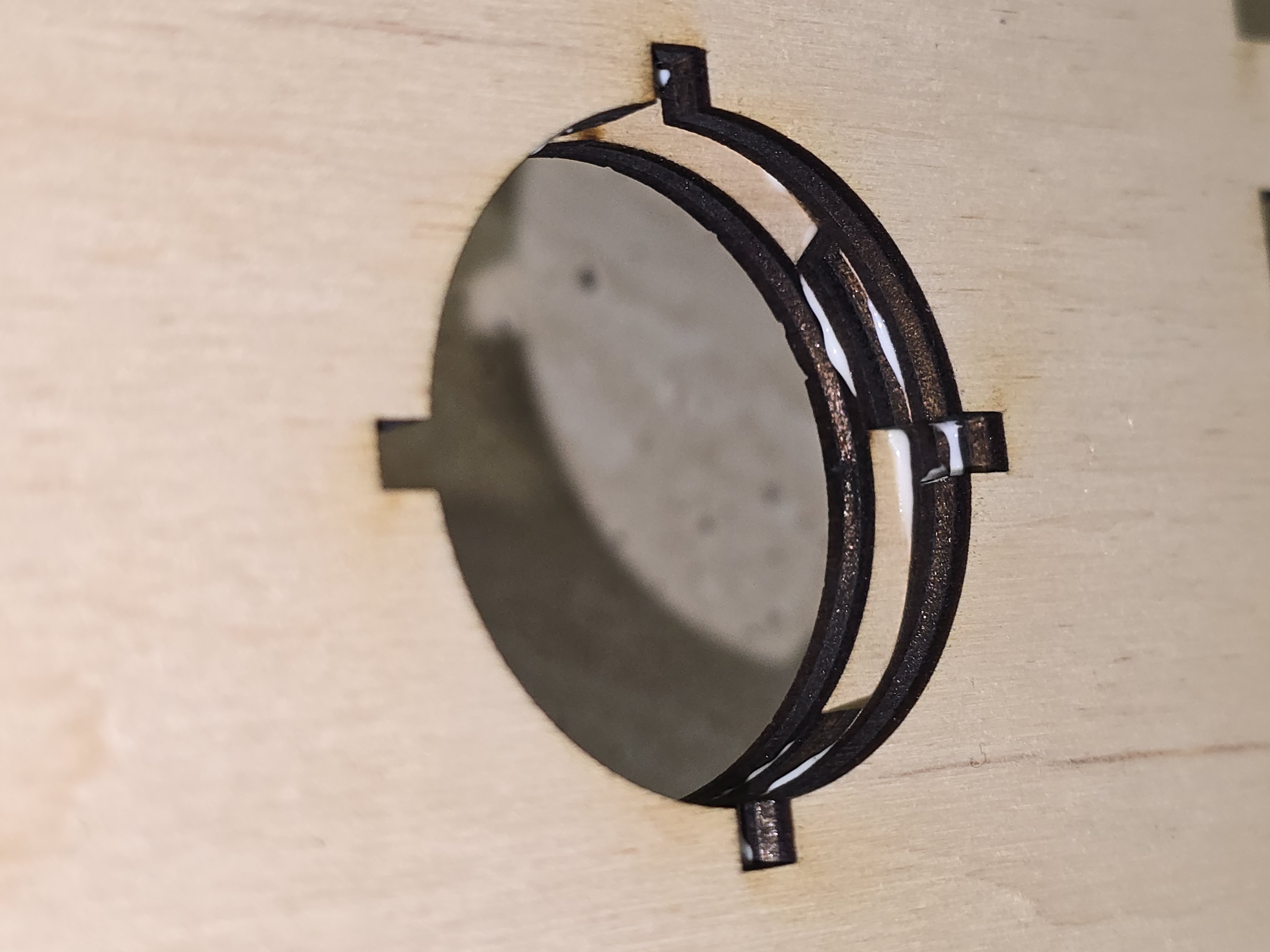

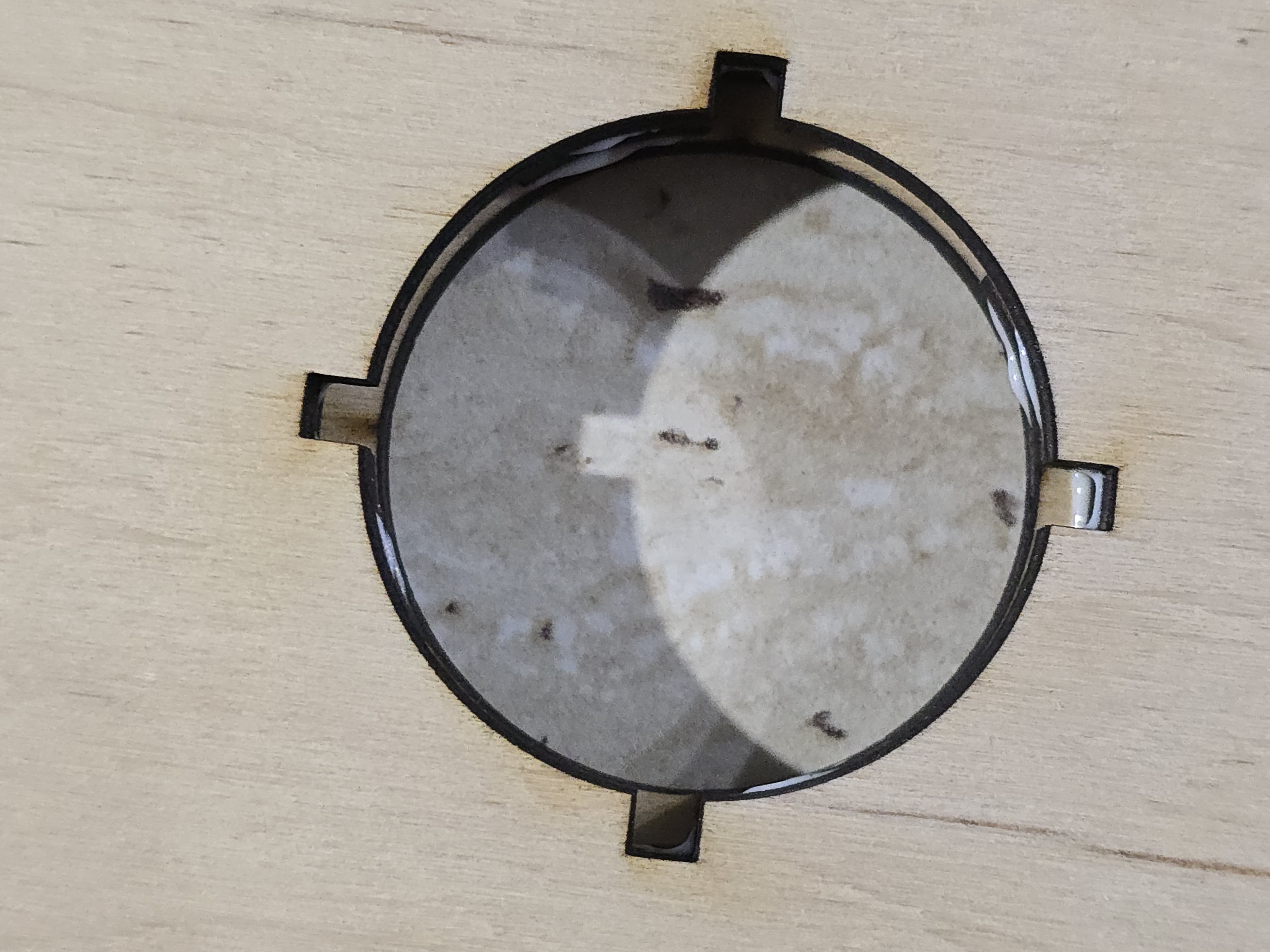

Once the parts are assembled, the bottom of the bushing comes next. It shouldn’t be glued onto the very bottom surface—instead, this protruding section will sit inside the bushing. That’s why you need to be careful about where you apply the glue and how you align the parts, because the placement is critical. If it’s not positioned correctly, the locking mechanism won’t function properly.

In the video, I demonstrate the correct alignment using the tip of a knife. The point of the knife shows where the edge should go—this part needs to match up with the other component I’m indicating.

Step4

Preview

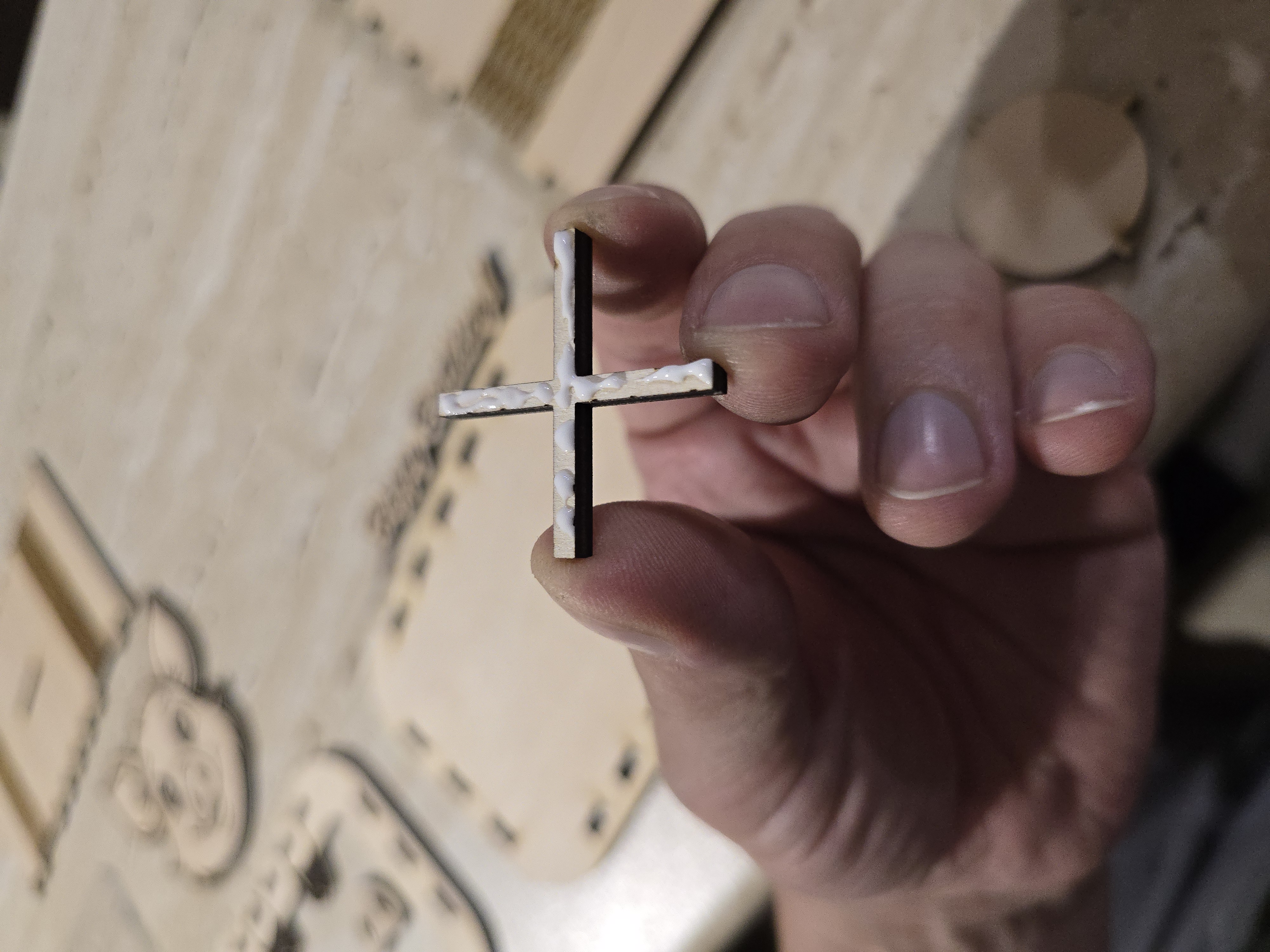

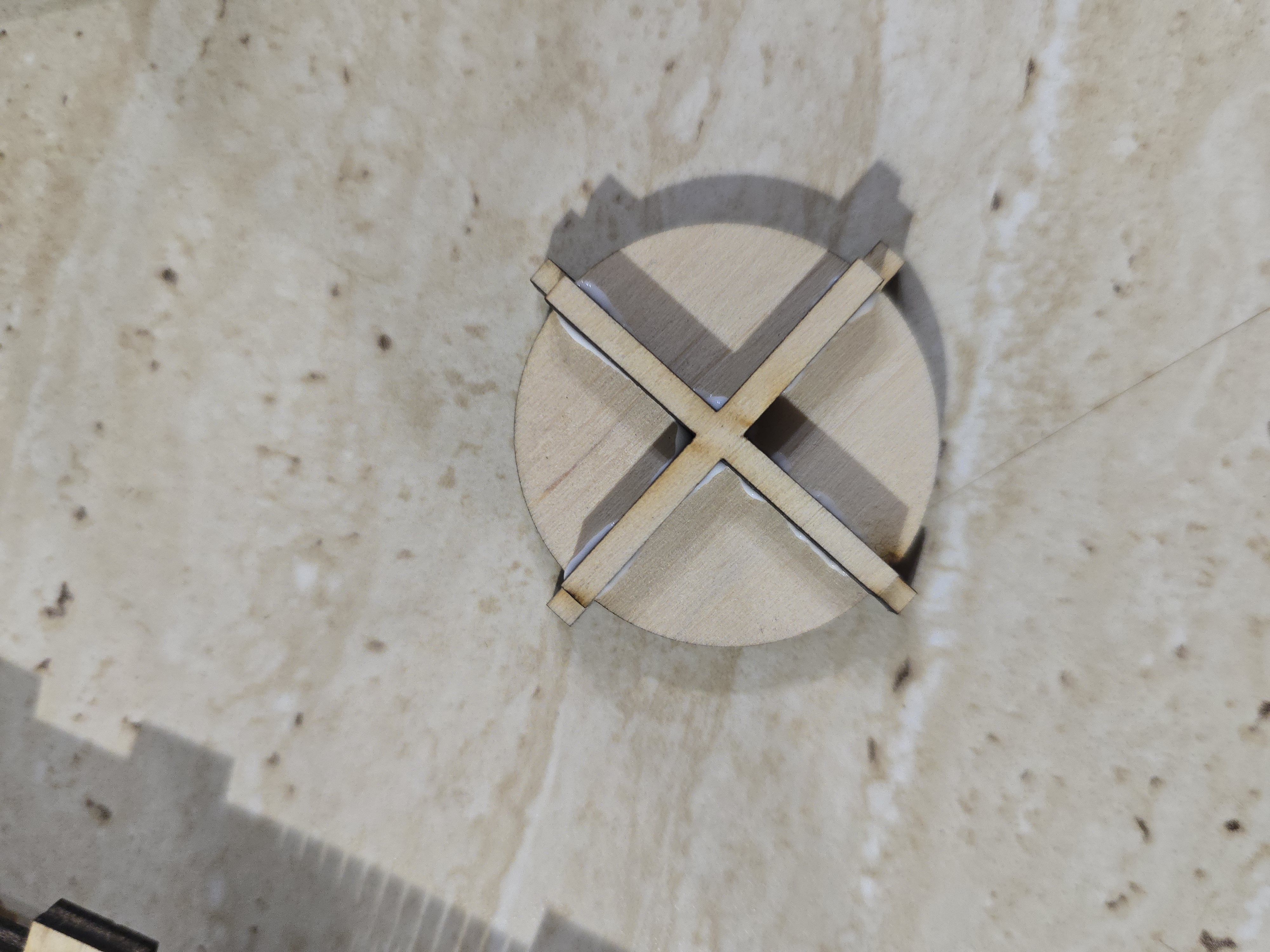

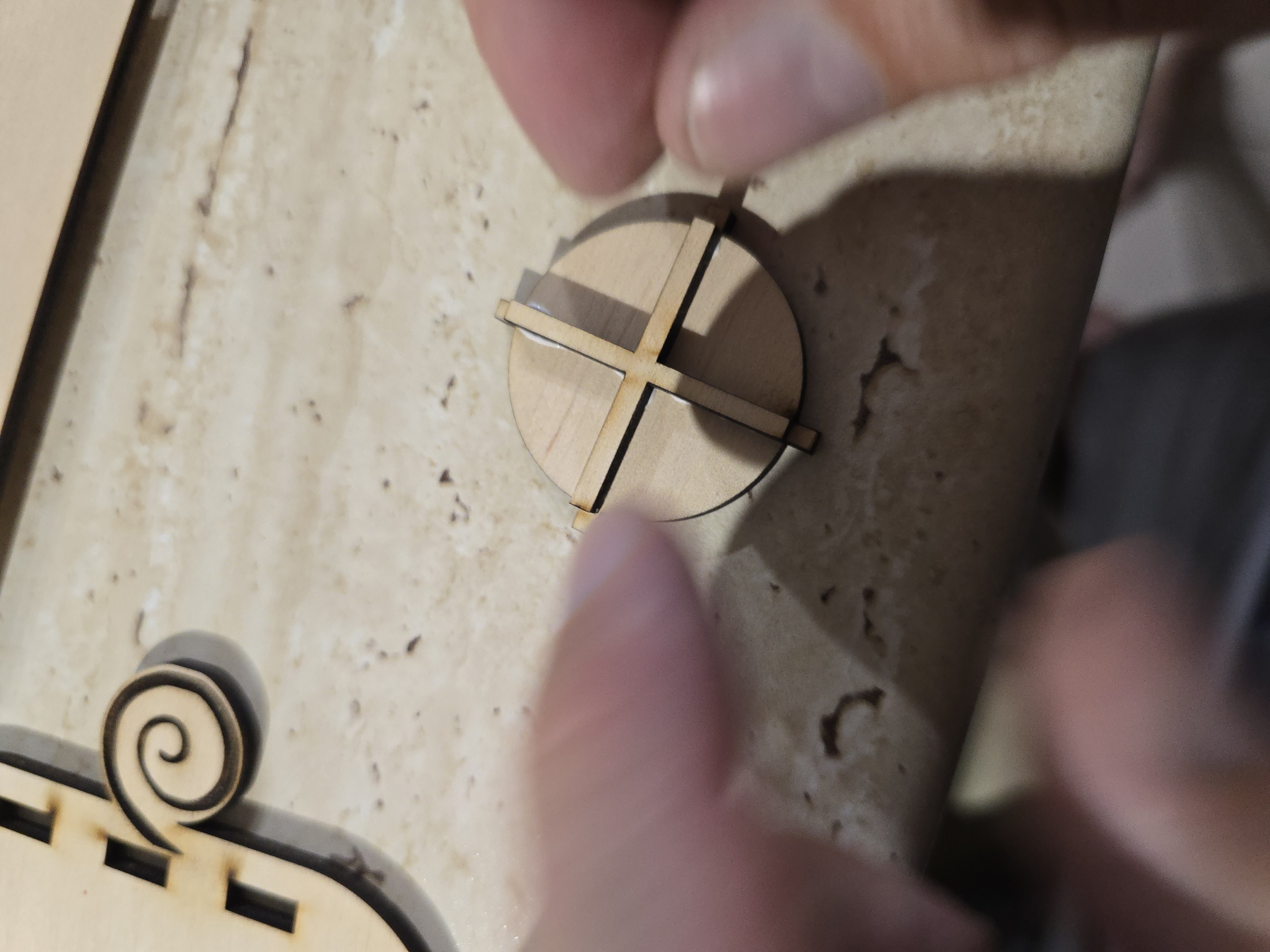

After this, the closing plug is also glued in place.

Step5

Preview

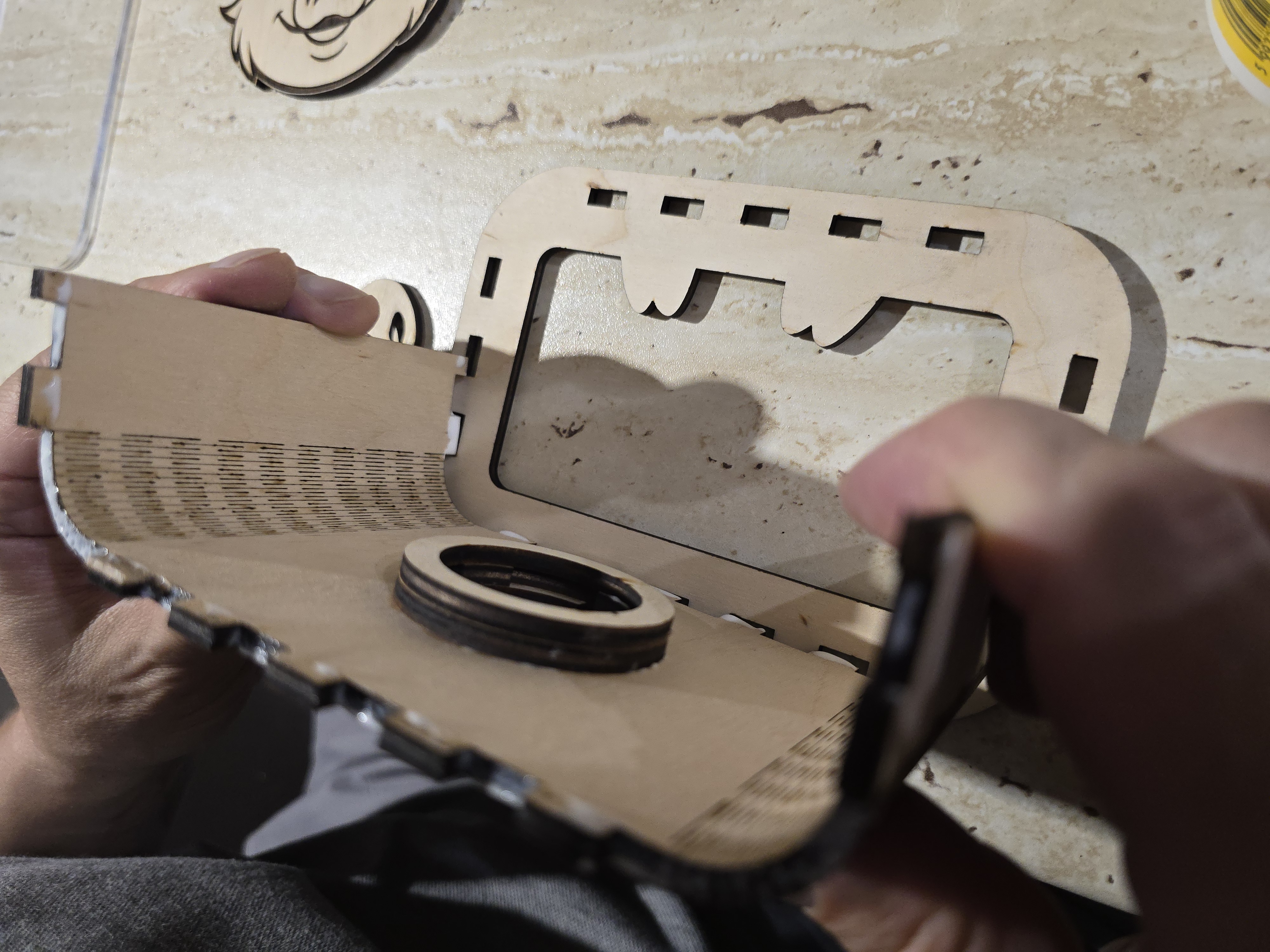

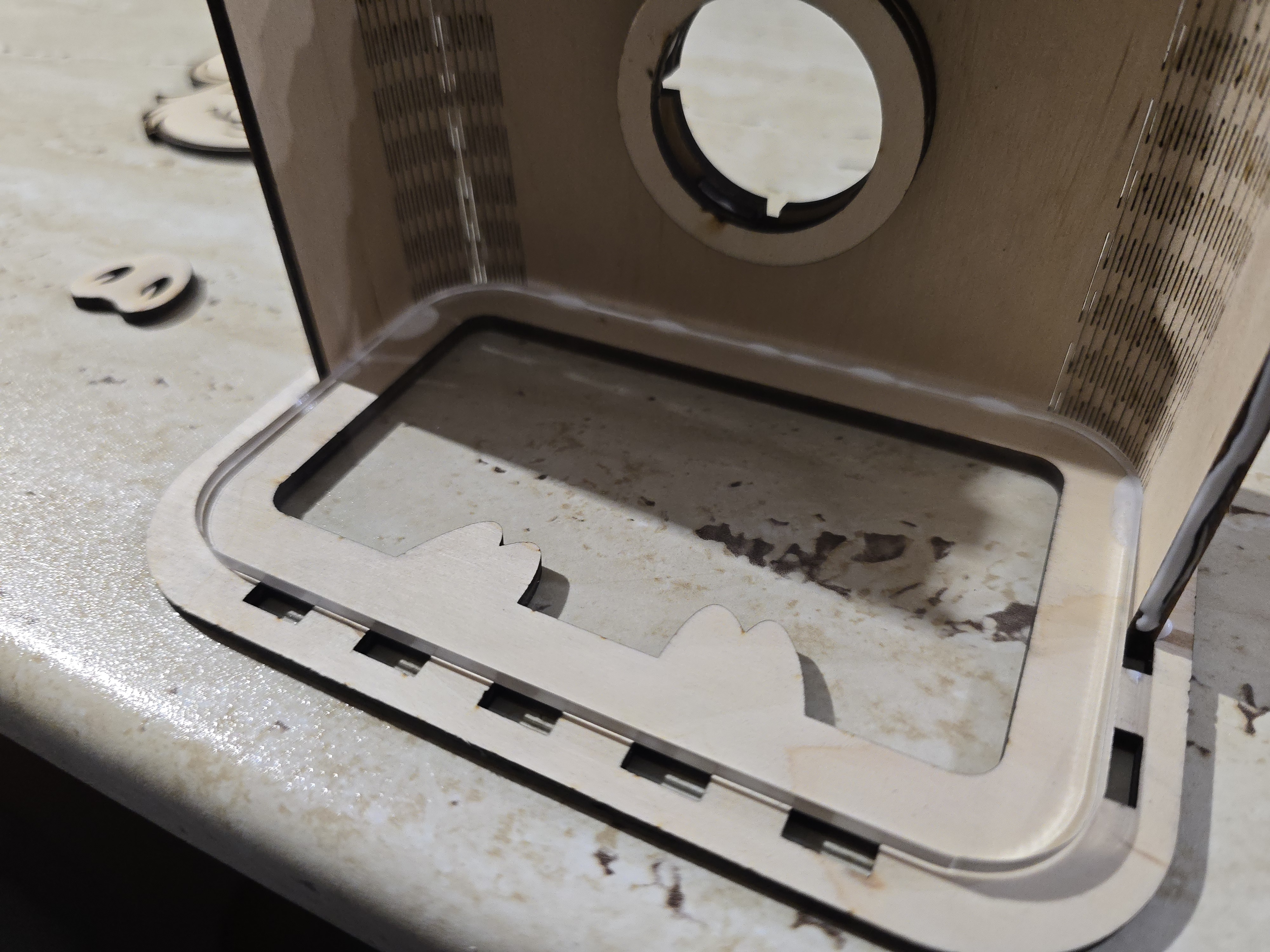

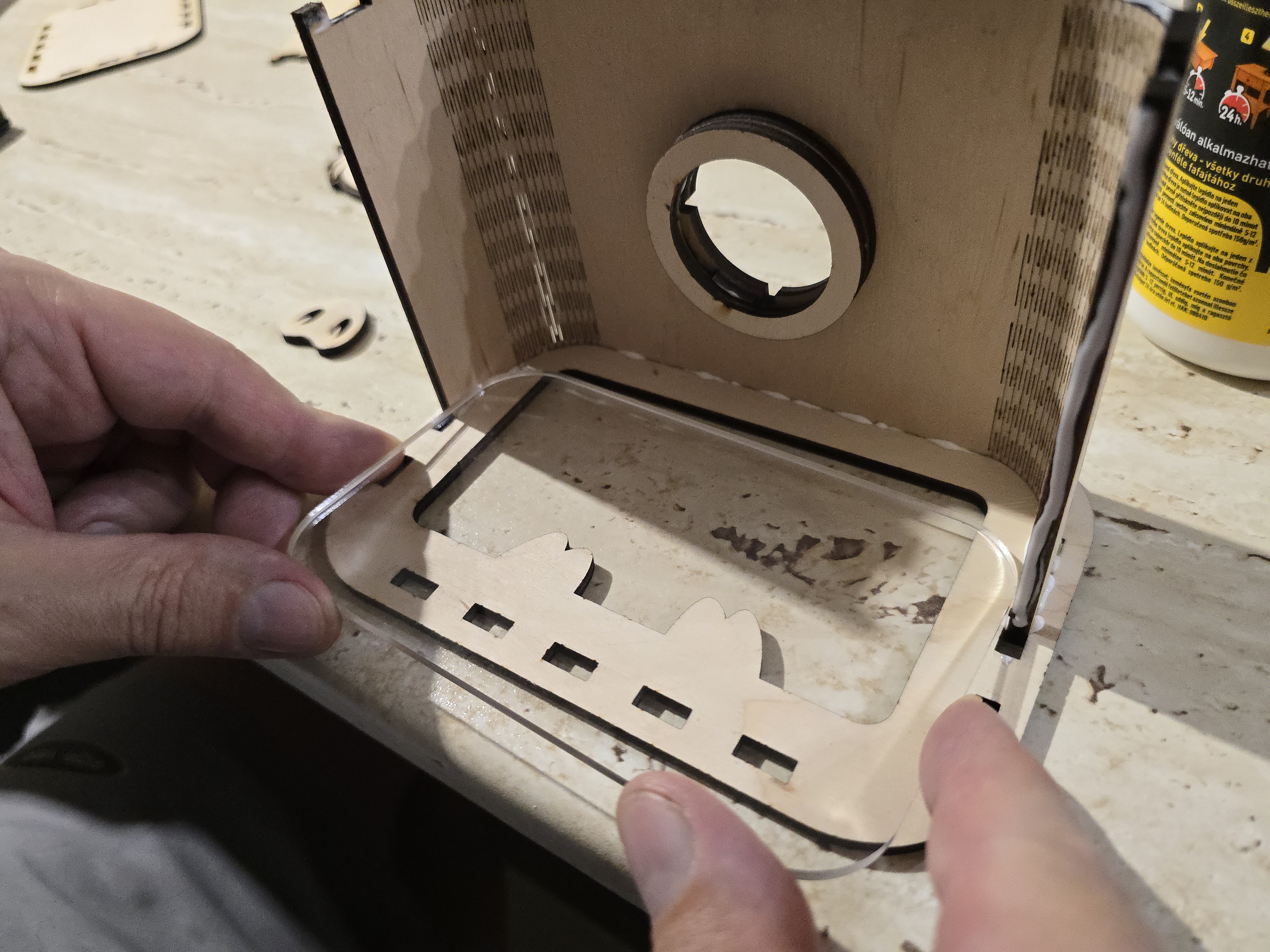

Next, one of the side pieces can be attached. It’s best to start with the side that will come into contact with the acrylic (plexiglass). The acrylic sheet can also be fitted into place, and a small amount of glue can be applied underneath it as well. In my case, I also used wood glue underneath.

Step6

Preview

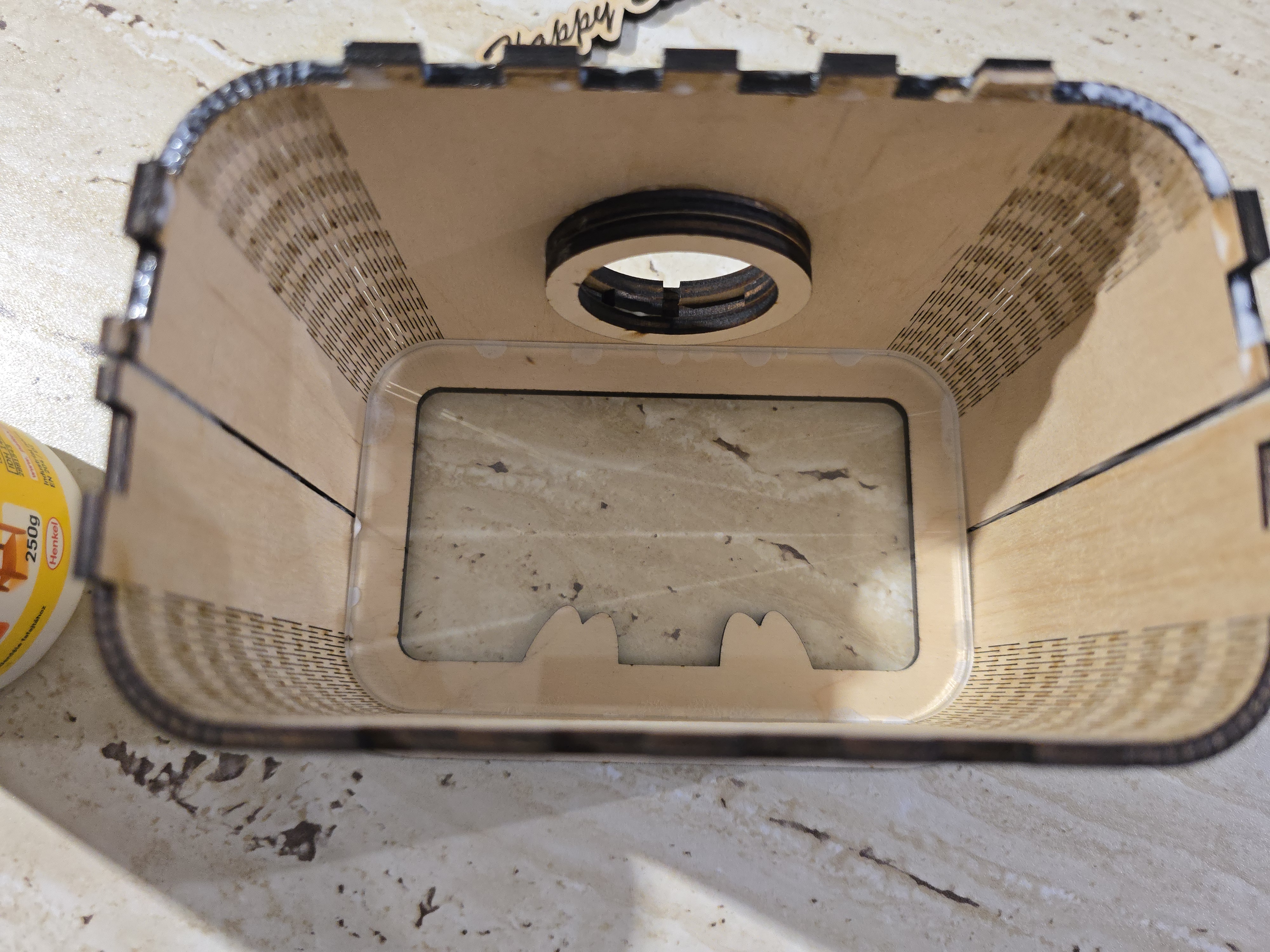

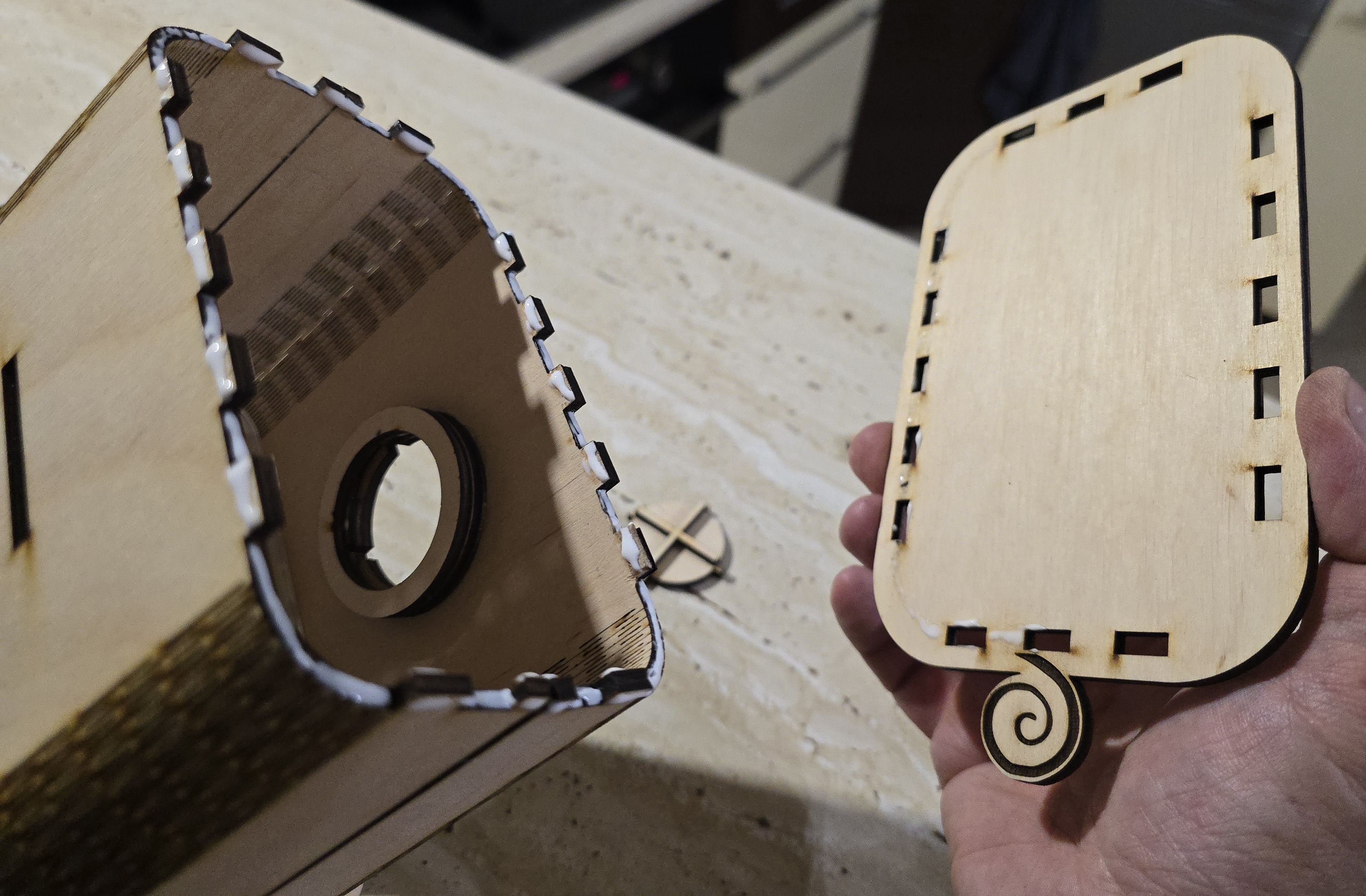

ext, the other side can be attached as well. It’s better to work a bit faster here, because it’s preferable if the glue hasn’t fully set yet—otherwise it will be harder to fit the back panel on properly. So the back panel can also be placed on, with a bit of adjustment to make sure everything lines up correctly.

Step7

Preview

2 More images

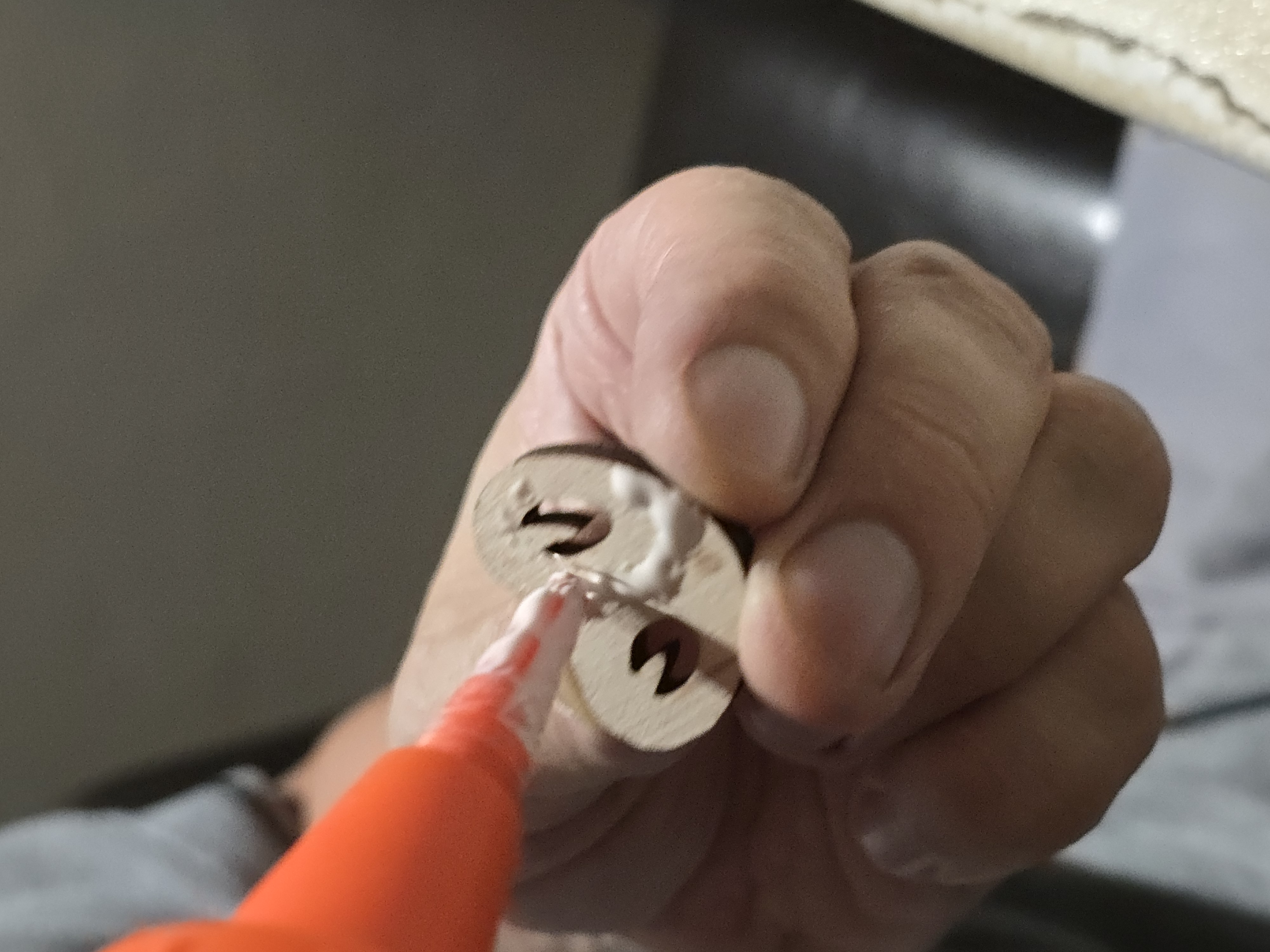

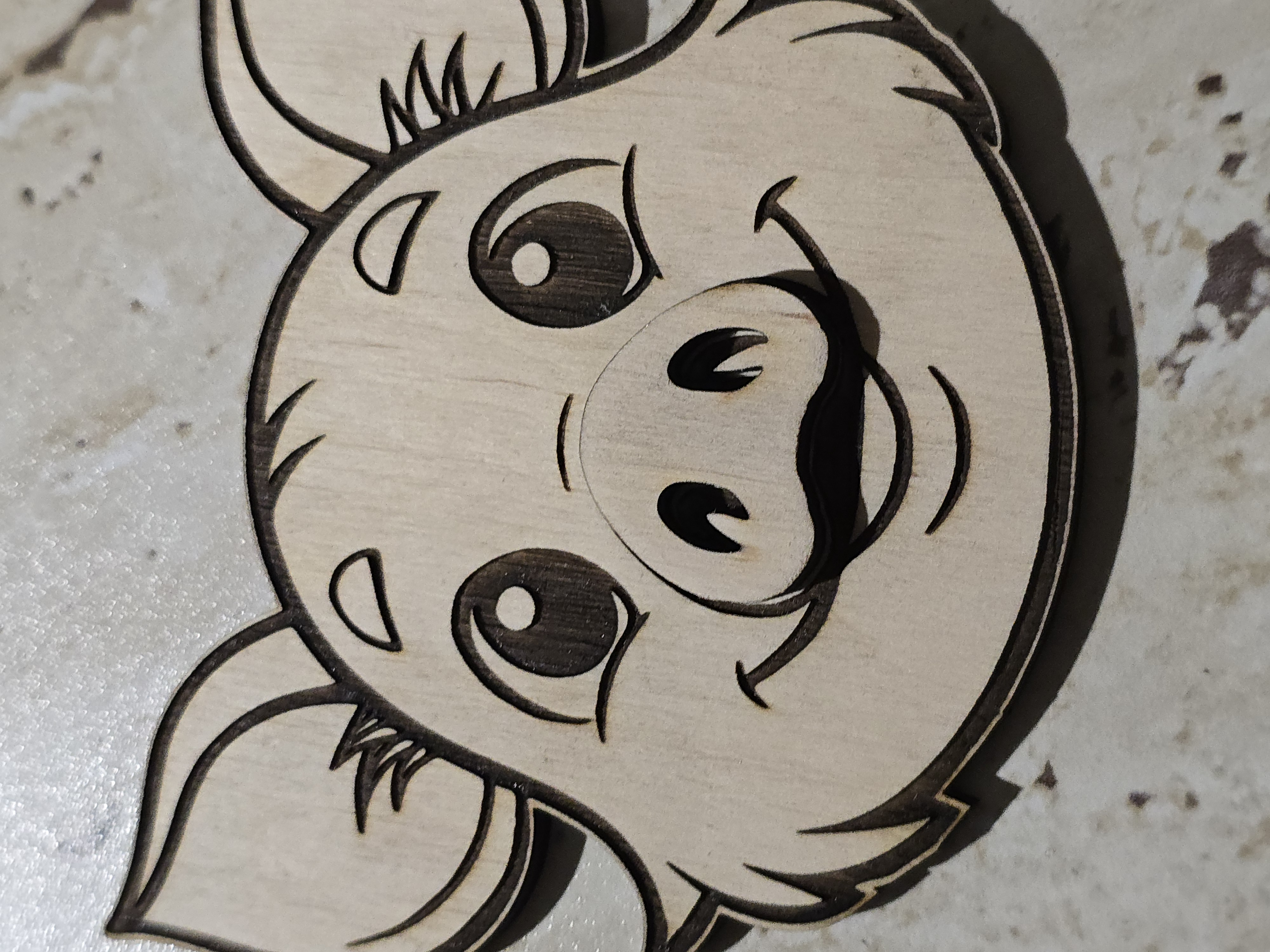

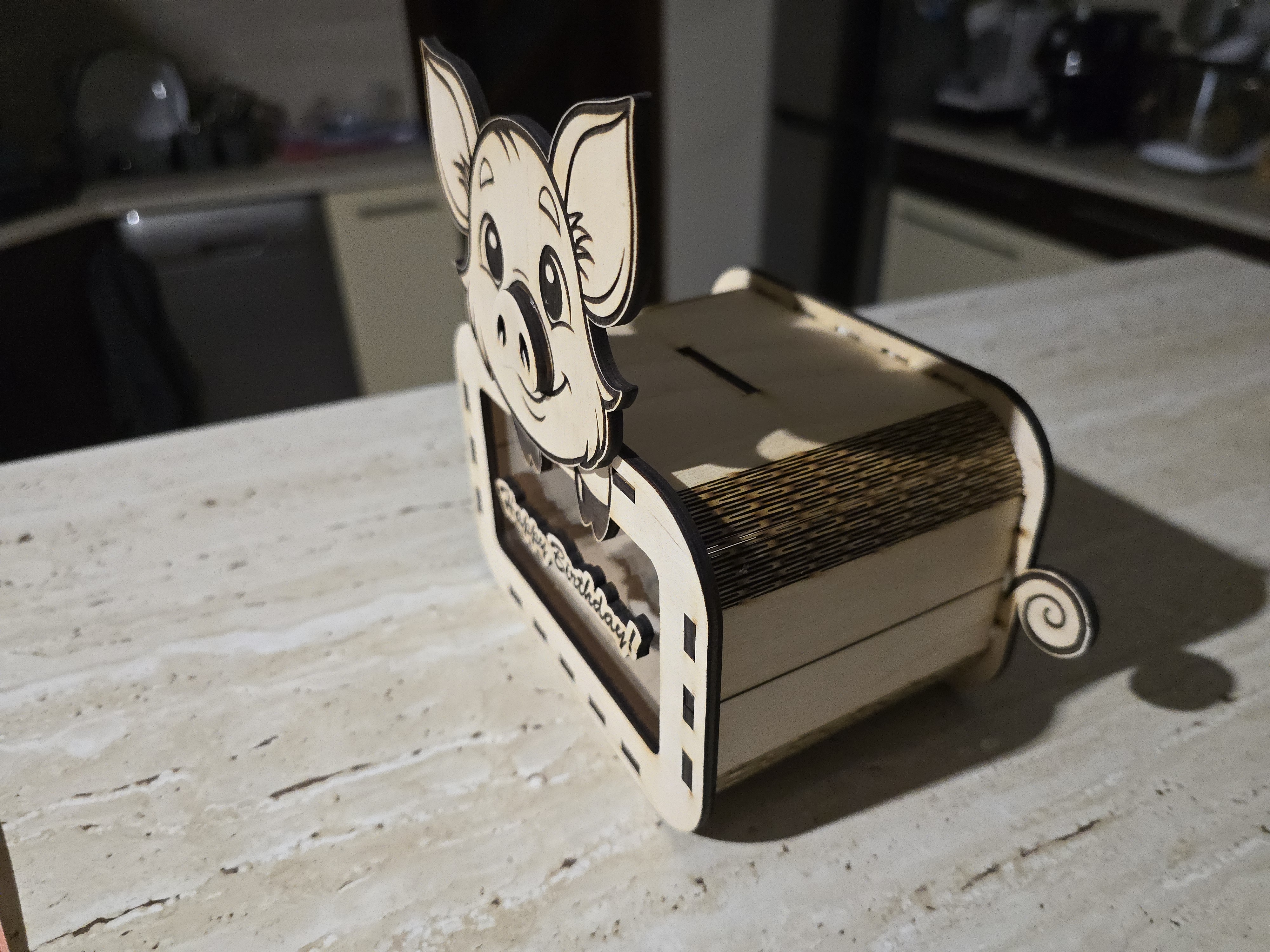

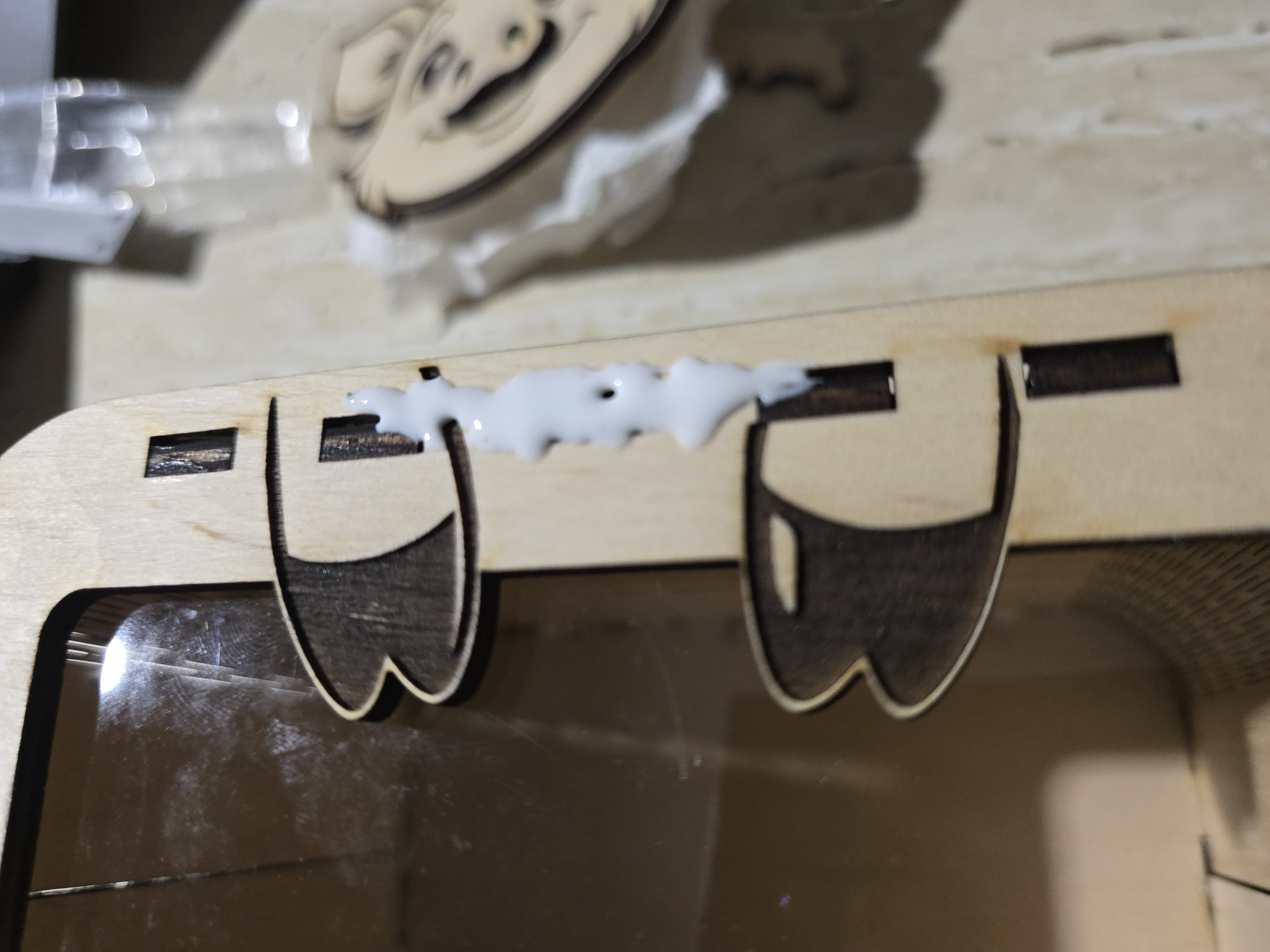

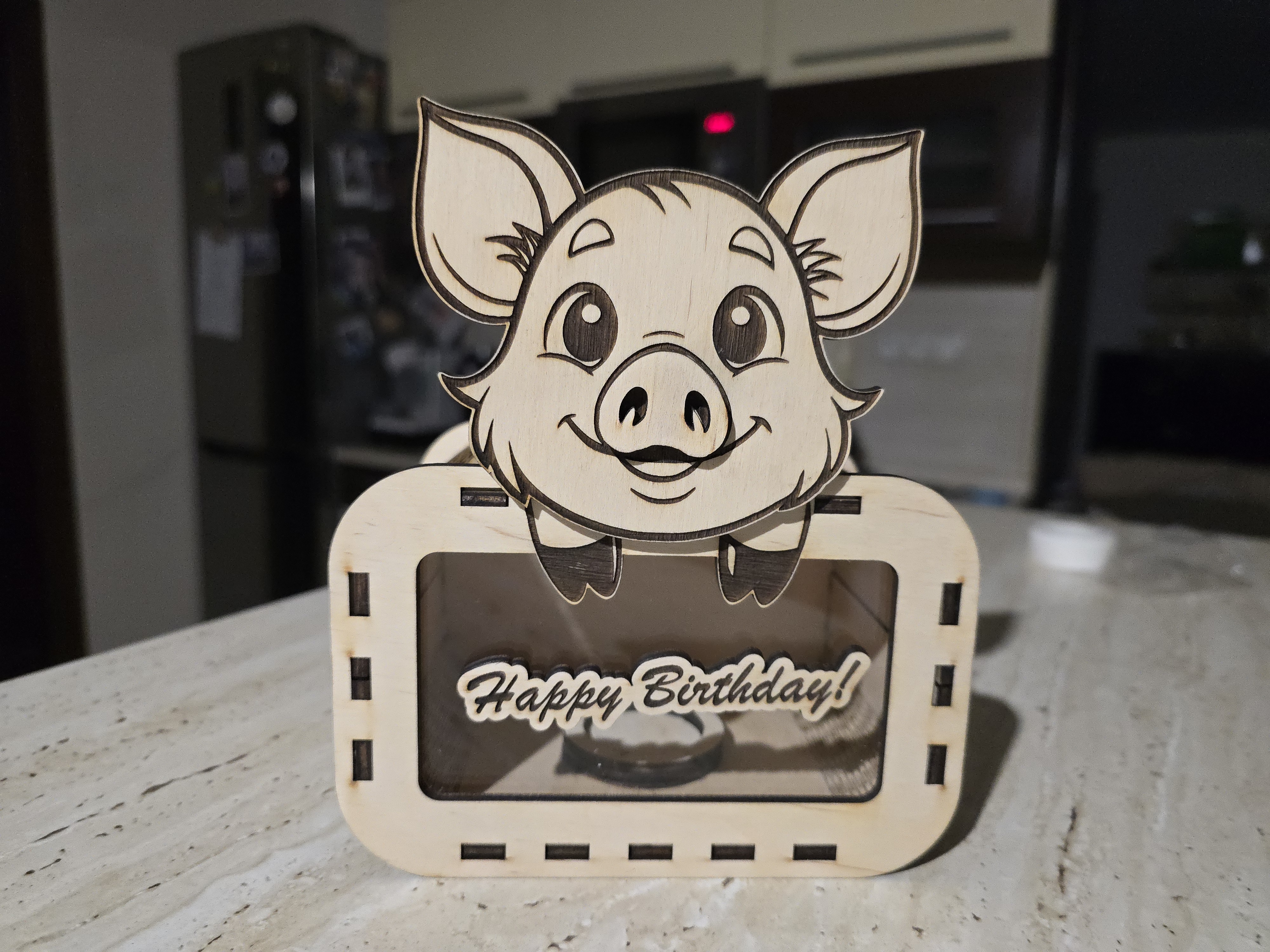

Then the pig’s snout and head are placed into position. Then you need to wait until the glue is completely dry. Don’t close it before that—only once it’s fully dry—otherwise the plug might get stuck inside
