[Laser cut and engrave,Inkjet printing] Happy Birthday Heart Photo Frame Greeting Card — Project made with xTool M2 machine for Birthday.

Happy Birthday Heart Photo Frame Greeting Card

Craft the Birthday Contest

Instruction

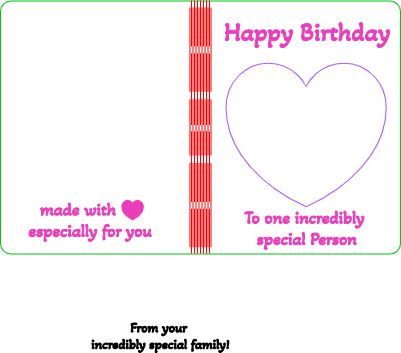

card.template

.xs

Application scenario

Laser processing、Inkjet printing (15min)

Machine & module

New

xTool M2

10W

Compatible xTool Machine

New

20W

F2 Ultra UV

15W

80W

F2 Ultra

40W

F1 Ultra

20W

5W, 10W

5W, 10W, 20W

D1 Pro

5W, 10W, 20W, 40W

55W

10W

10W, 20W, 40W

M1 Ultra

10W, 20W

P2S

55W

Material used

1/8"(3mm) Basswood Plywood

287

Information

      I wanted to create a unique card for my mom’s 75th birthday.  Something that she would enjoy and cherish. I used a template for the fold that I found on Atom so that I could create the cuts needed for the fold. I then created something special with 1/8" basswood. Utilizing the heart for the image I created with my family (I am not showing the printed image of family for anonymity reasons). I added magnets to keep the card closed. For the final card I presented to my mom I used a paper insert to add some color behind the heart.  I created all of this on my Xtool M2.

CrafttheBirthdayContest

Instruction

Step1: select your options

Preview

Step 1 turn on engraving and cutting layers. Do not turn on inside engraving layer.

Step 2 go to process settings …. And make sure the parameter is set to process by layer.

Step 3 process the engraving and cut

Engraving set to 40 power, 180 speed, 1 pass and 100 lines

Cut set to 100 power, 4 speed, 1 pass, Constant power

Step 4a: flip card to expose the inside for internal engraving or color printing.

Step 4 b: I have the M2 so I chose to attach a white background and print the internal words.

Step 5a: If you have an M2 color print an image on the heart and glue heart in place so that it lines up with the heart cut out.

Step 5b: If you have laser only, either create an engraved image or decorate the card however you wish.

Step 6: attach magnets to keep the card closed. I bought these on Amazon for pretty cheap. Make sure you have the two sides of the magnet that connect otherwise they will fight each other and the card will not stay closed.
