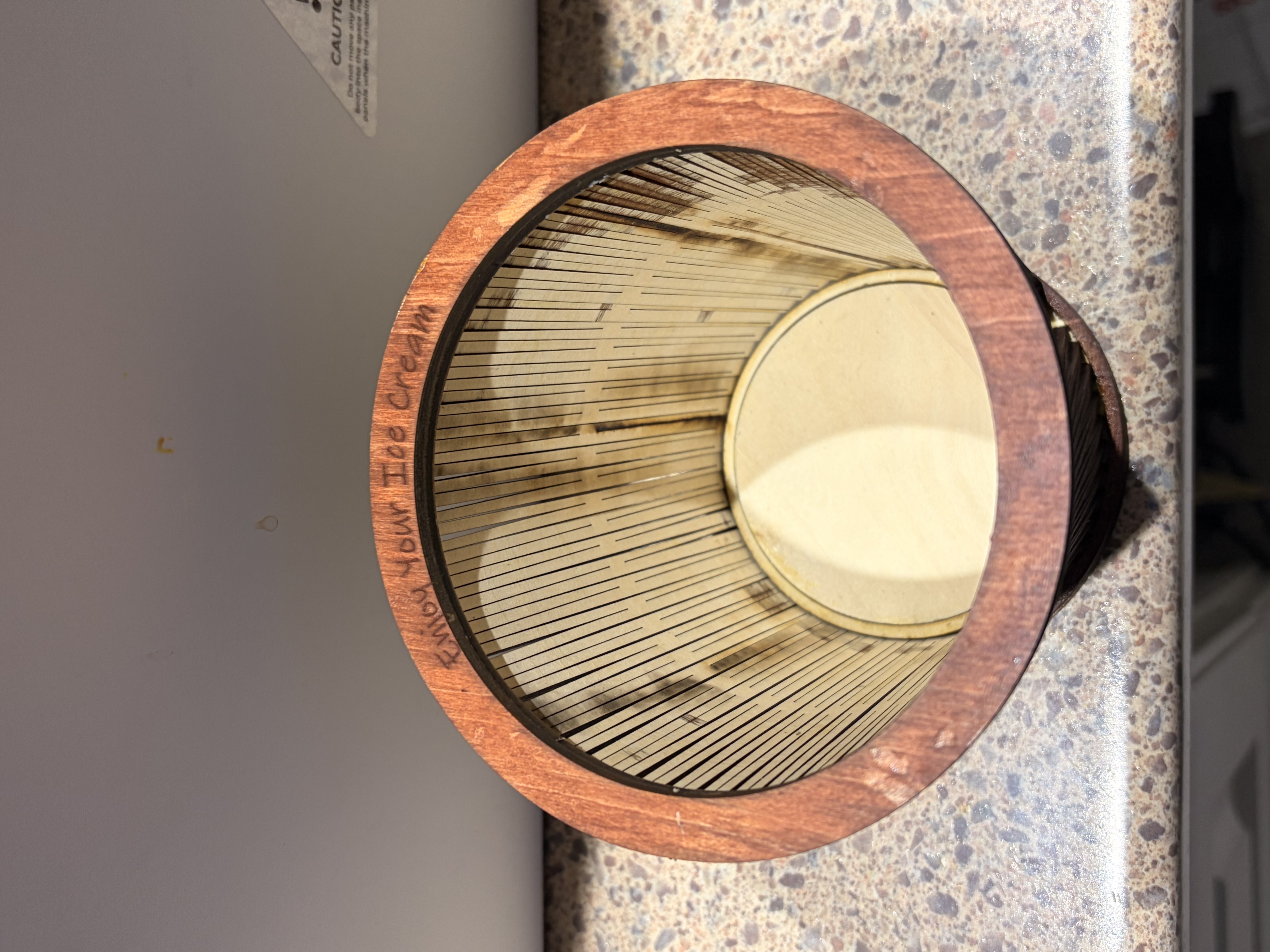

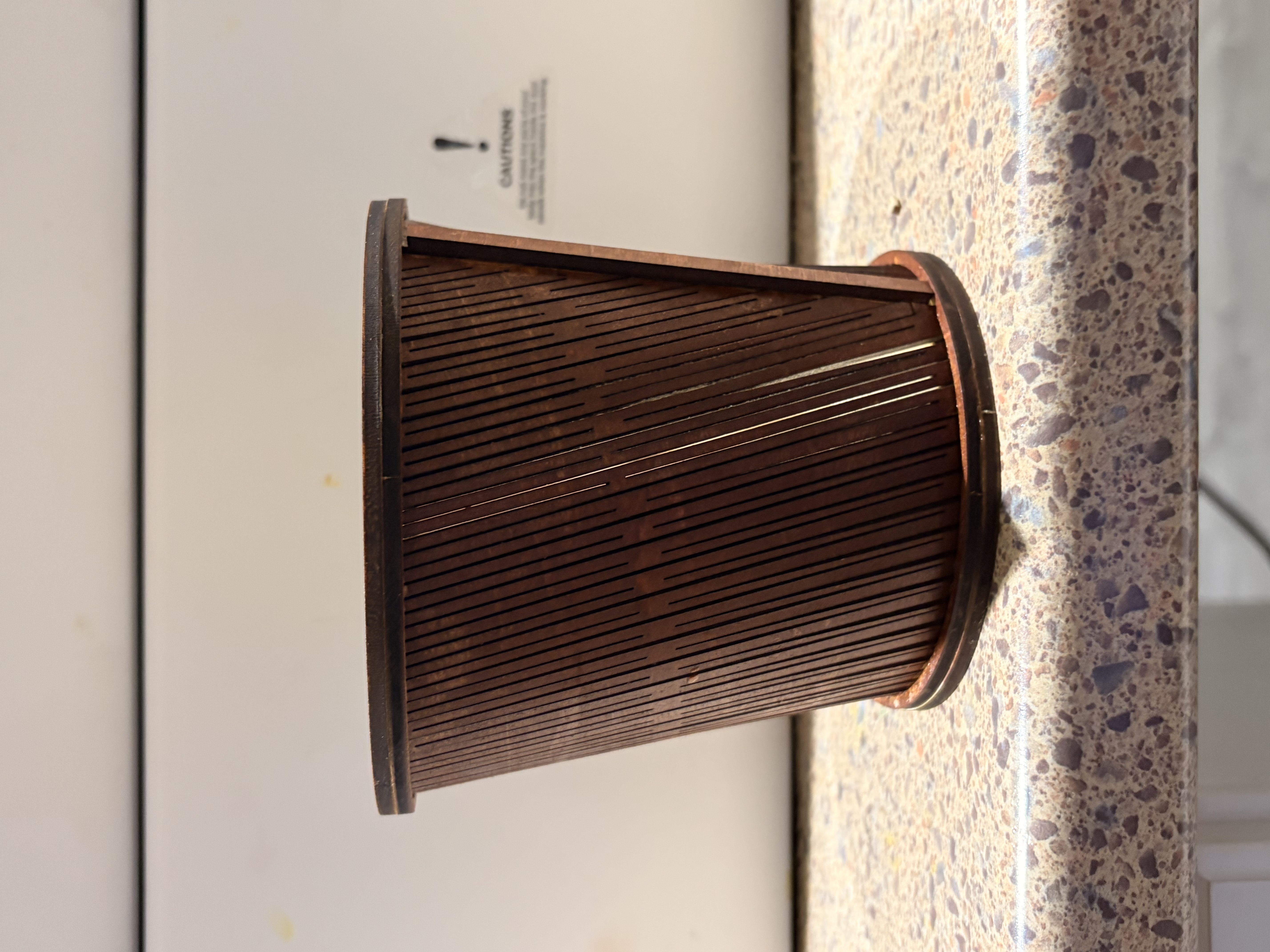

Live hinge pint ice cream holder that Insulates

Instruction
This project is empowered by AImake
PintHolder.xs
PintHolder
.xs
Application scenario
Laser processing
Machine & module
xTool P2
55W
Compatible xTool Machine
New
M2
10W, 20W
F2 Ultra UV
5W
F2
15W
P3
80W
F2 Ultra
40W
F1 Ultra
20W
M1
5W, 10W
D1
5W, 10W, 20W
D1 Pro
5W, 10W, 20W, 40W
F1
10W
S1
10W, 20W, 40W
M1 Ultra
10W, 20W
P2S
55W
Material used
1/8"(3mm) Basswood Plywood
gift
98
Source Image Generated with AImake
Tap to View Prompt and Remix It!
atomm-ai-image
view prompt

Information

      Keep your hand warm and your ice cream cold with this laser cut piny holder.


Instruction

1

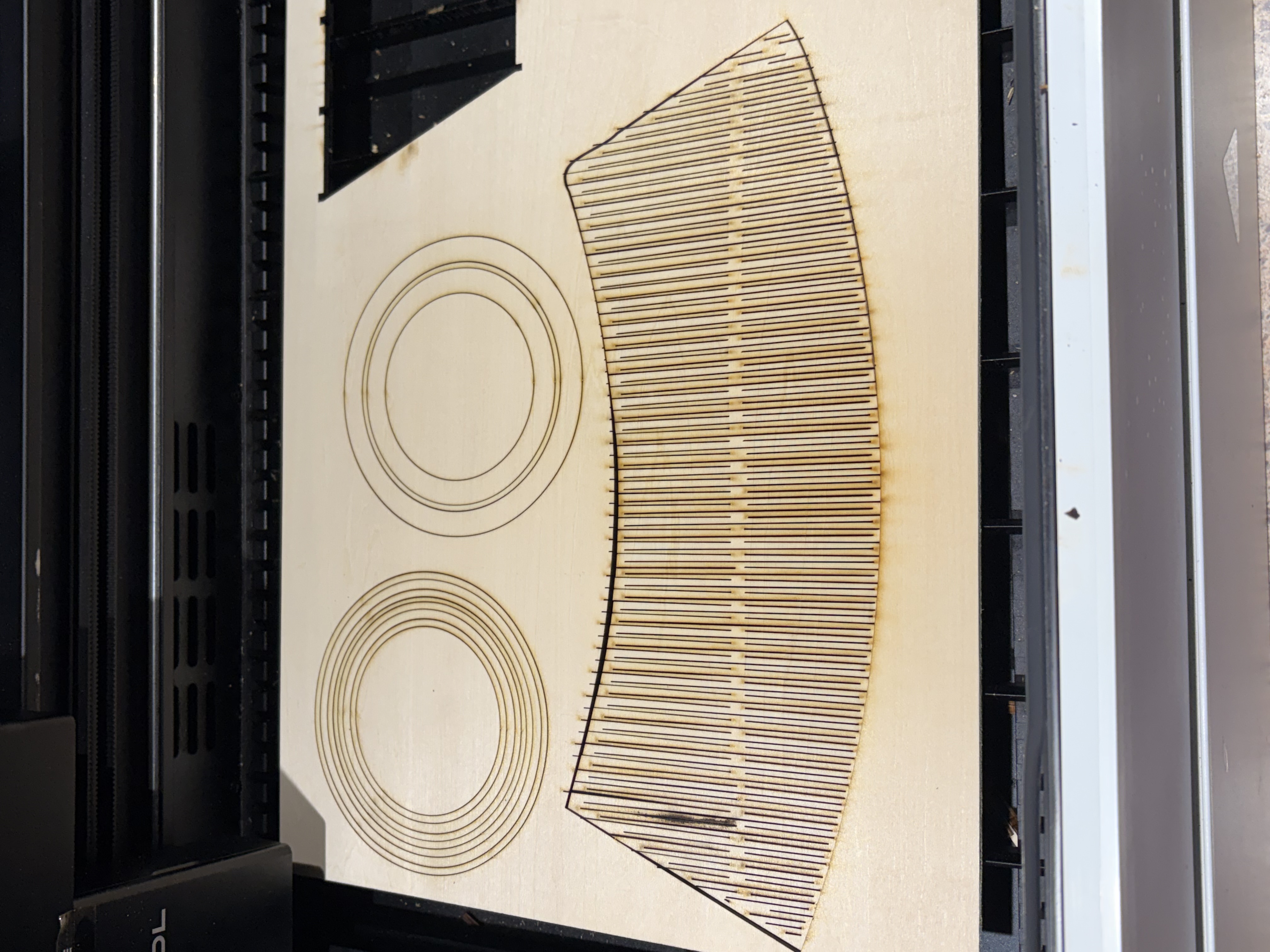

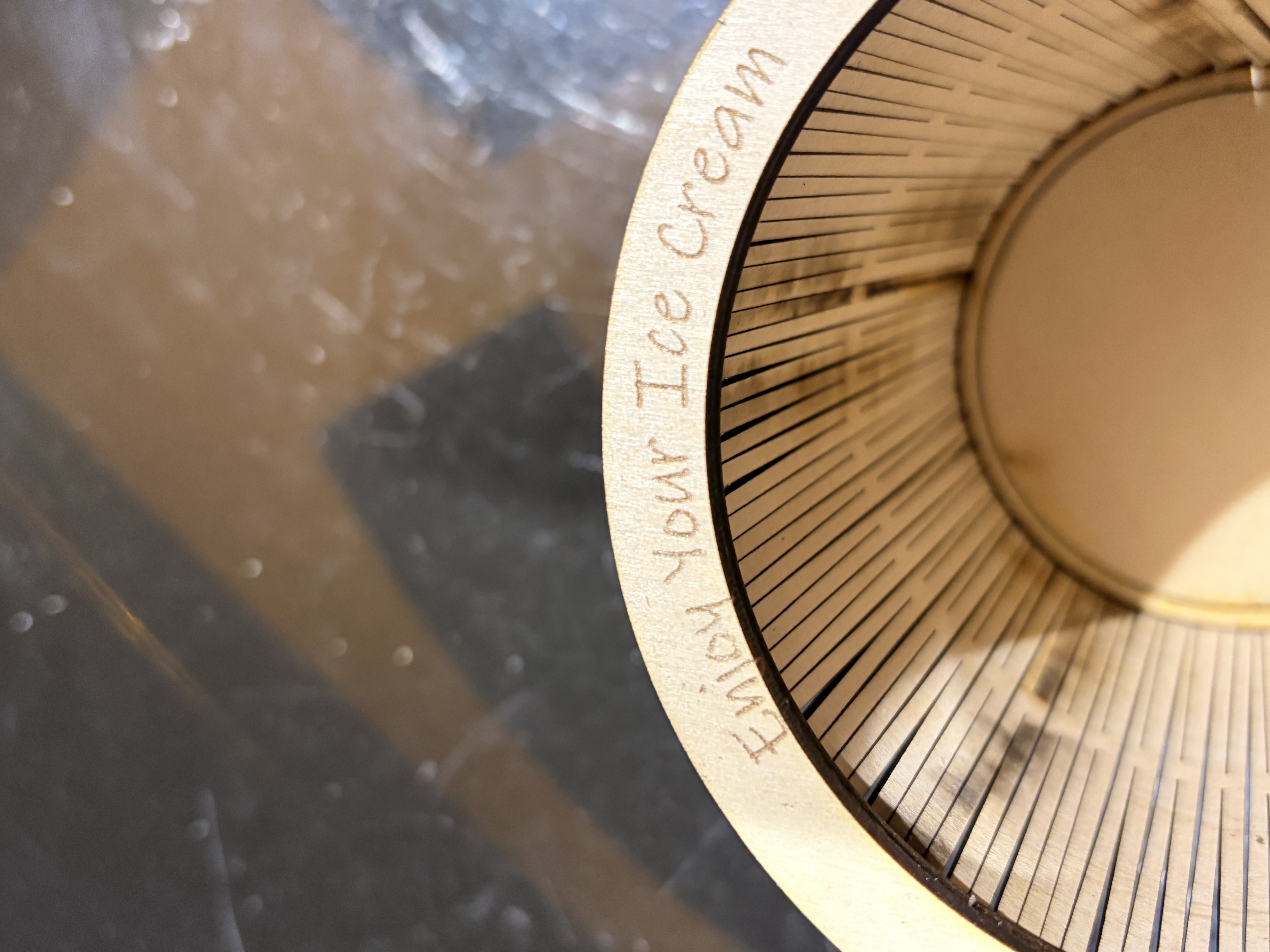

Step1: Customize Top Lid if Desired then Cut

Live hinge pint ice cream holder that Insulates instruction: step 1 - Customize Top Lid if Desired then Cut
Preview
Live hinge pint ice cream holder that Insulates instruction: step 1 - Customize Top Lid if Desired then Cut
Preview

This idea of mine took all day !  After failing, I did my homework and learned about conical frustums.   Tapered cyclinders are harder to make than I thought!
 It’s rewarding to take an idea and successfully finish it though. Now my Ben and Jerry’s won’t melt as quickly.

2

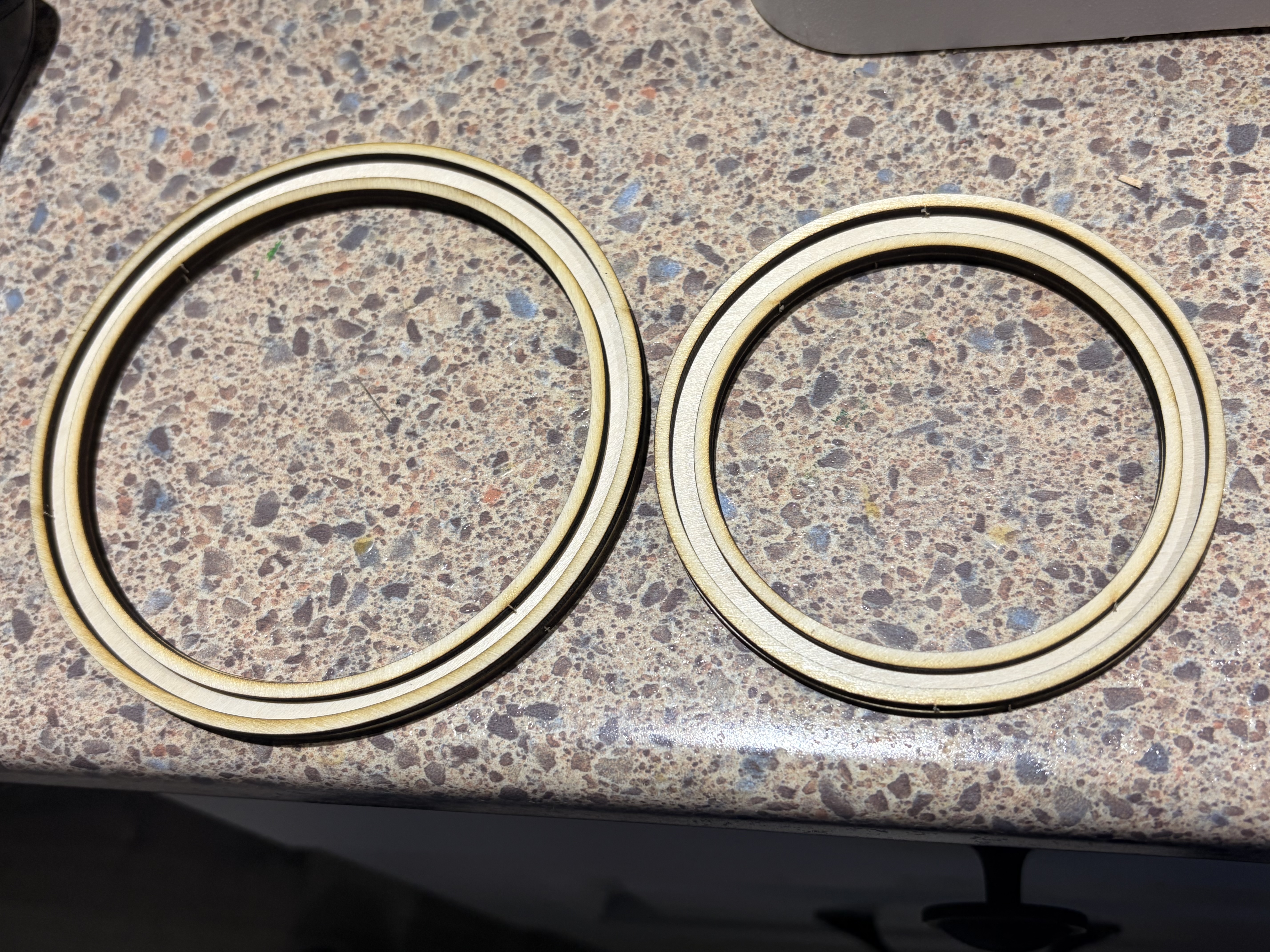

Step2: Glue rings to top and bottom

Live hinge pint ice cream holder that Insulates instruction: step 2 - Glue rings to top and bottom
Preview

I designed this so the wall can snuggle fit in the grooves. Start with the smaller bottom and run a bead of glue.  Place and gently spread the shorter end of the wall until touching then get ready to add the larger top ring.  I’d actually suggest not gluing the inner ring of the bottom until the wall is in.  During assembly I realized this as I fought to get it in the groove.    Once you get the sidewall in, add the inner ring.

3

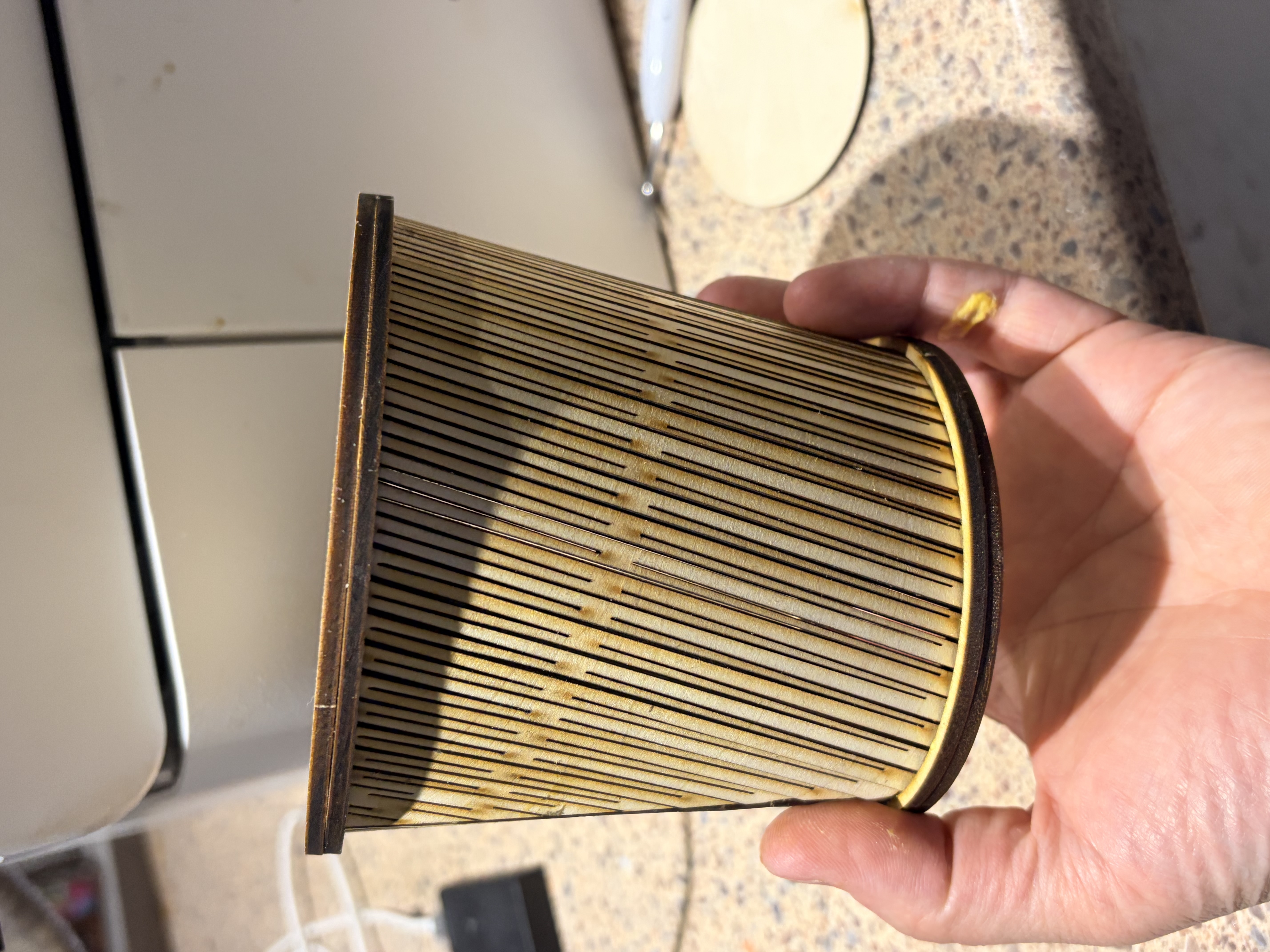

Step3: Few Side Notes

Live hinge pint ice cream holder that Insulates instruction: step 3 - Few Side Notes
Preview
Live hinge pint ice cream holder that Insulates instruction: step 3 - Few Side Notes
Preview
Live hinge pint ice cream holder that Insulates instruction: step 3 - Few Side Notes
Preview

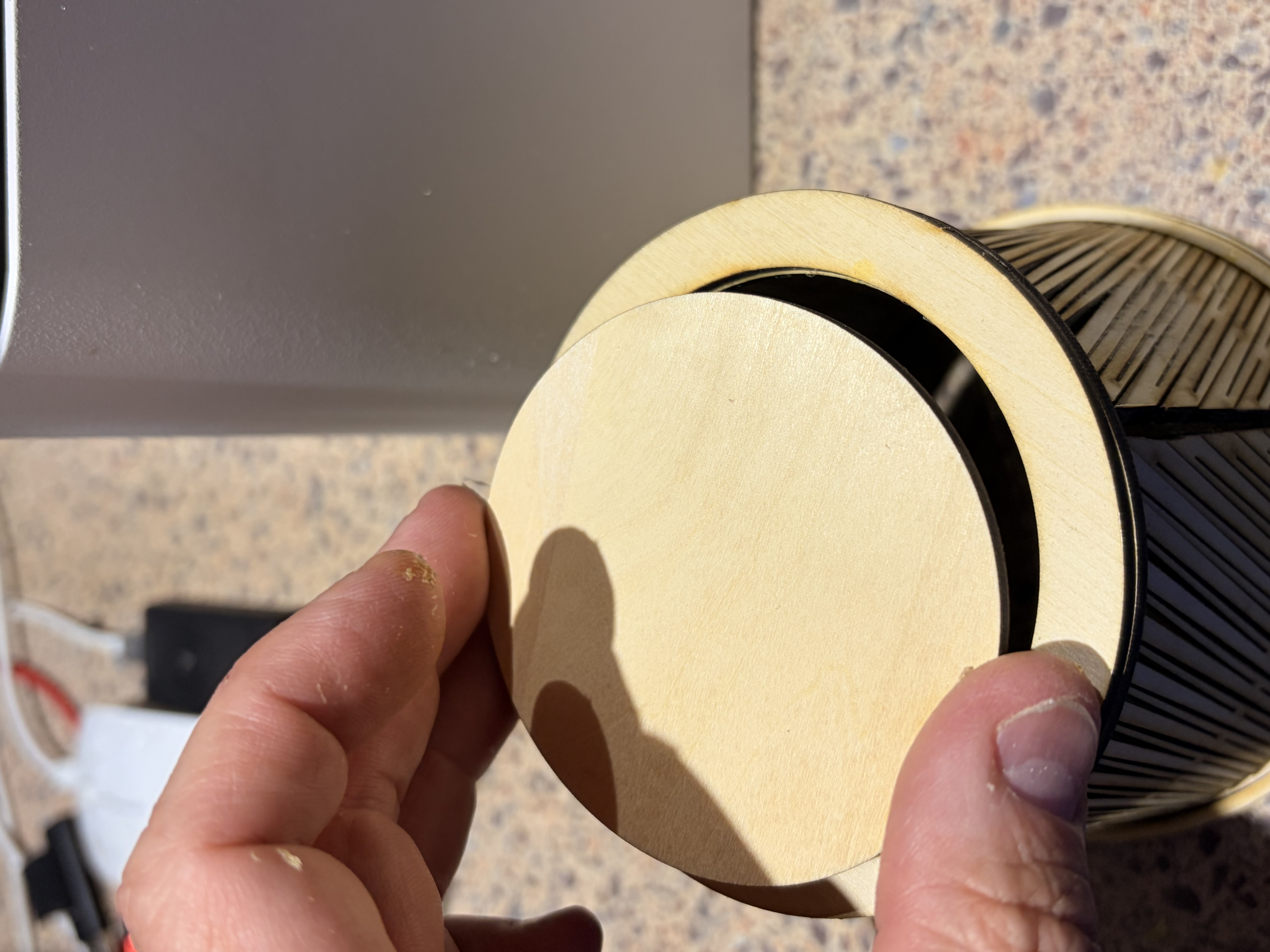

Bottom circle can be cut out or left in place for a bottom.  I added a side strip along the seam for strength and to mimic the look of a pint of ice cream.  In the future I may add a spoon holder,but may I’ll see one in a remix.  Enjoy!
