Layered Wood Wall Art Featuring a Deer in a Mountain Forest Landscape - 4 Layers Wall Art

Instruction

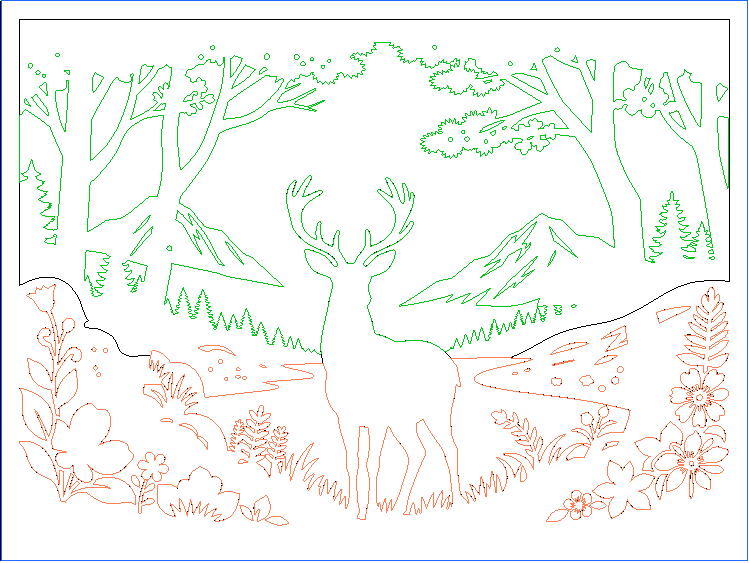

Pixelza 223.xcs
Pixelza 223
.xcs
Application scenario
Laser processing
Machine & module
xTool S1
20W
Compatibles · 14
Material used
1/8"(3mm) Birch Plywood
gift
158
1184

Information

      4-Layer Deer Forest Landscape design, featuring a majestic stag standing peacefully in a woodland clearing surrounded by towering trees, rolling mountains, flowing rivers, and floral forest details. Perfect for laser cutting, this highly detailed multilayer composition captures the beauty of wilderness and rustic nature décor, making it an ideal project for cabins, lodges, outdoor enthusiasts, and wildlife lovers.

Each layer is precision-optimized for smooth laser cutting and easy alignment, creating a stunning 3D depth effect once assembled. The design looks beautiful in natural wood finishes, stained plywood, or painted layers, bringing warmth and elegance to any home decor setup.


Instruction

1

Step1: Materials

  • 4× plywood or MDF sheets (recommended: 3–4 mm thickness each)

  • Wood glue or CA glue

  • Paints, stains, or spray paint (optional)

  • Sandpaper (fine grit, optional)
2

Step2: Cutting the Layers

Layered Wood Wall Art Featuring a Deer in a Mountain Forest Landscape - 4 Layers Wall Art instruction: step 2 - Cutting the Layers
Preview
  • Import the design into your laser software (LightBurn, xTool Creative Space, etc.).

  • Each layer is provided separately or grouped by color.

  • Adjust your power/speed settings based on your material.

  • Cut each layer individually.

💡 Tip: Run a small test cut first to ensure clean edges and proper cut-through.

3

Step3: Painting Options

You can paint before or after cutting, depending on your workflow:

Option A – Paint Before Cutting (cleaner finish)

  • Apply paint or primer to the full sheet.

  • Let it dry completely.

  • Then proceed with cutting.

Option B – Paint After Cutting (more precision)

  • Cut all layers first.

  • Lightly sand edges if needed.

  • Paint each layer individually.

💡 Tip: Apply thin coats to avoid swelling or warping the material.

4

Step4: Assembly (Stacking the Layers)

  • Arrange all 4 layers in order (back → front).

  • Apply a small amount of glue to the back of each layer.

  • Carefully align and stack them.

  • Press gently and allow to dry.

💡 Tip: Work from the back layer forward for easier alignment.

5

Step5: Finishing Touches

  • Apply a clear coat for protection (optional).

  • Add a hanger, frame, or double-sided tape for mounting.
6

Step6: Pro Tips (For Best Results)

  • For a premium layered effect, use contrast: darker colors in the back, lighter tones toward the front.

  • If you want extra depth, add thin spacers (1–3 mm) between layers to create a shadow box look.

  • For ultra-clean results, consider sealing or priming the wood before painting.

  • A light sanding or quick wipe after cutting helps remove soot and improves paint adhesion.
