[Laser cut and engrave] Pendentif rond en métal avec points colorés gravés au laser
Project made with f2 machine for Laser cut and engrave.

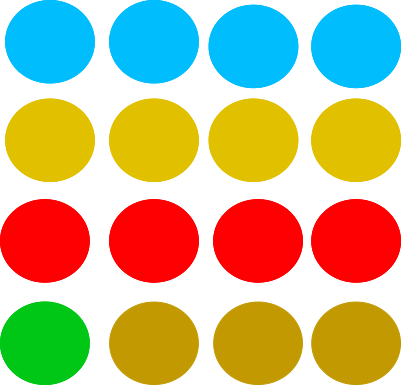

16 colors palette on Stainless Steel, speed 200 mm/s

Instruction
SS_Color_F2_100ms_1000lpcm_0-90.xcs
SS_Color_F2_100ms_1000lpcm_0-90
.xcs
Application scenario
Laser processing (4min)
Machine & module
f2
5W, Infrared
Material used
Stainless Steel mirror polished
gift
484
4427

Information

      Set of 16 colors for fast engraving on F2 (stainless steel)
Laser engraving
Stainless steel
Colors
Color Palette
F2 infrared

Instruction

1

Step1: Engrave the first layer

Enable infrared preheat, focus well

Click on the group named “Layer 0° first”

Enable Output

Click on the group named “Layer 90° second”

Check output is Disabled

Process

2

Step2: Engrave the second layer

Click on the group named “Layer 0° first”

Disable Output

Click on the group named “Layer 90° second”

Enable Output

Process

3

Step3: Clean the result

Clean well with a towel paper + alcohol

Dry with microfiber
