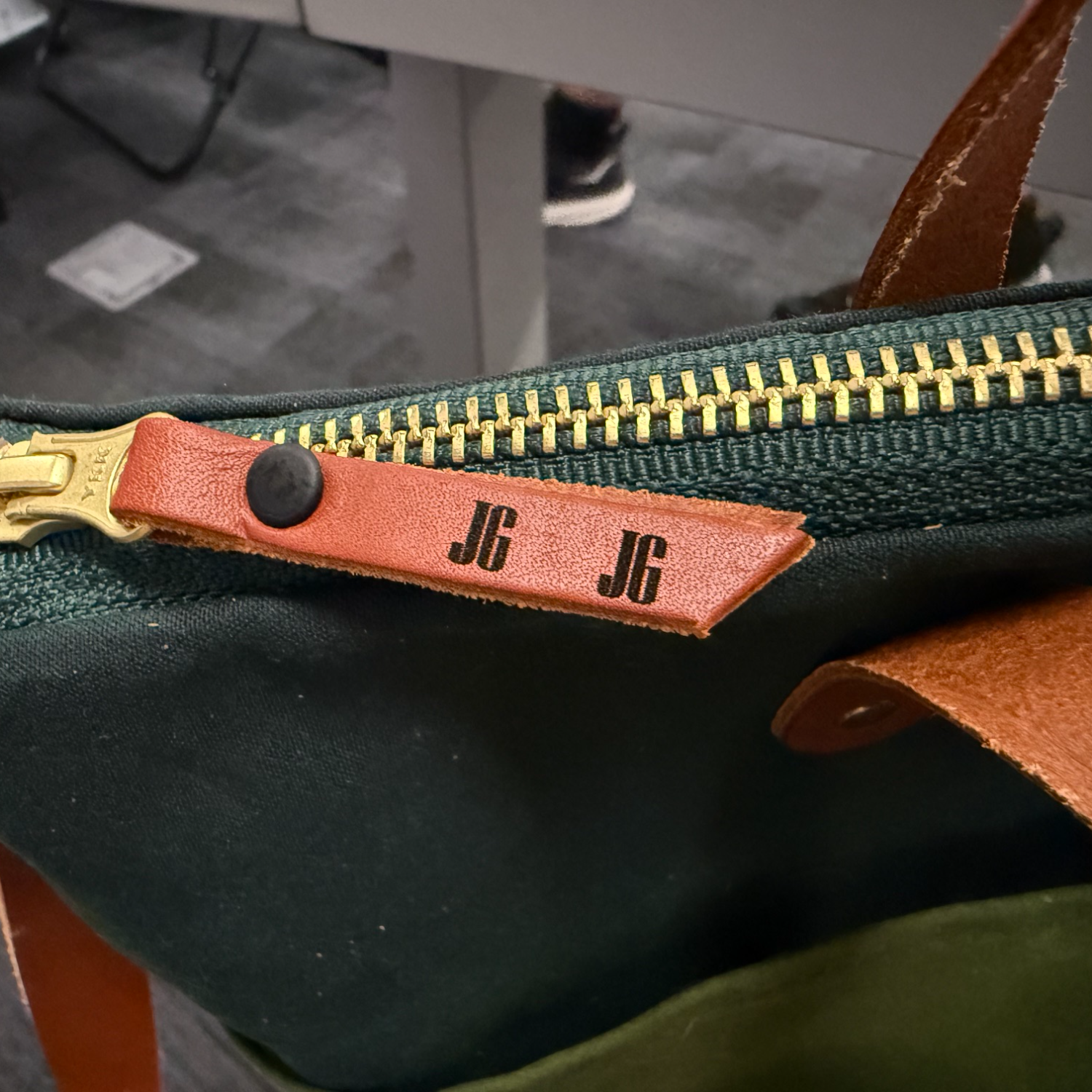

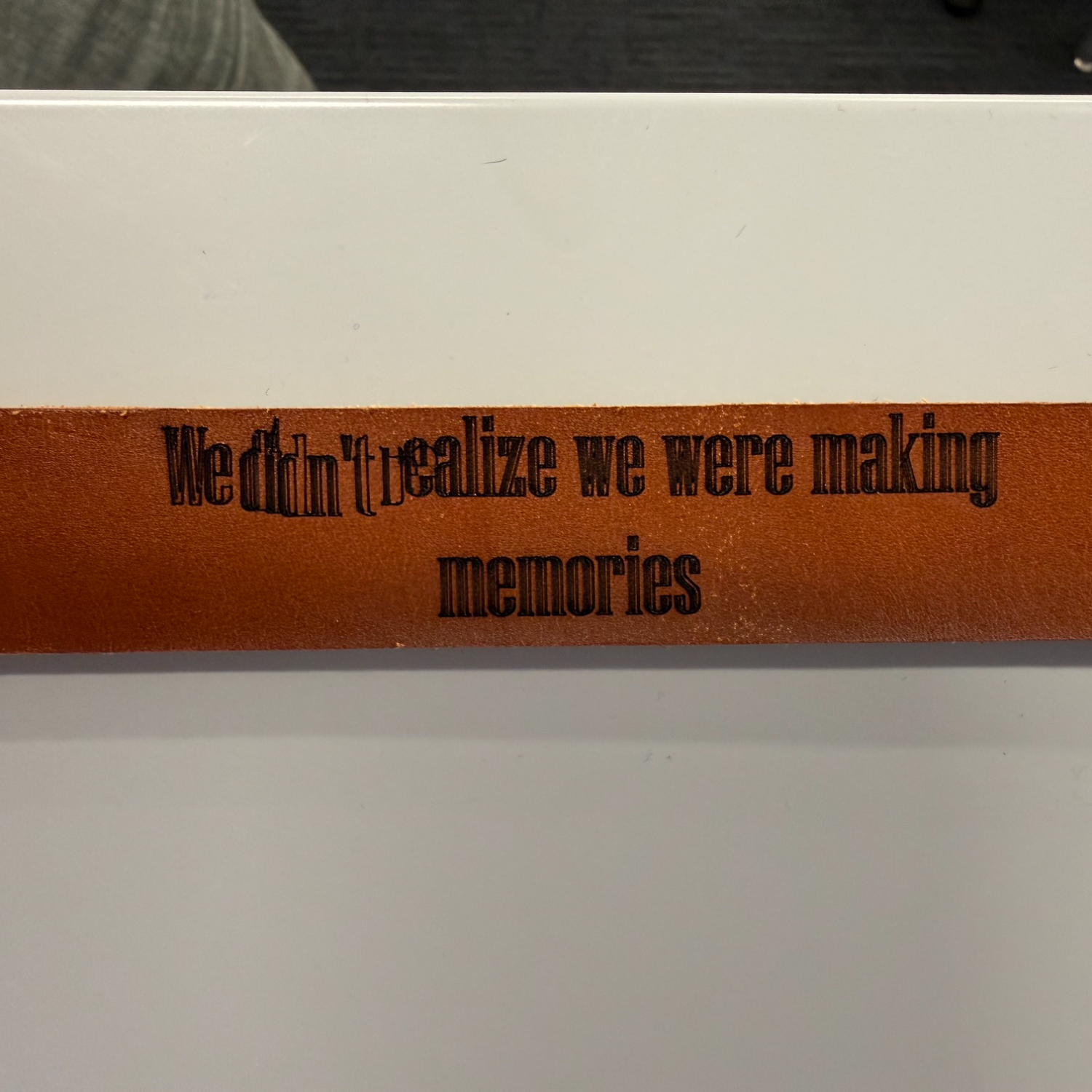

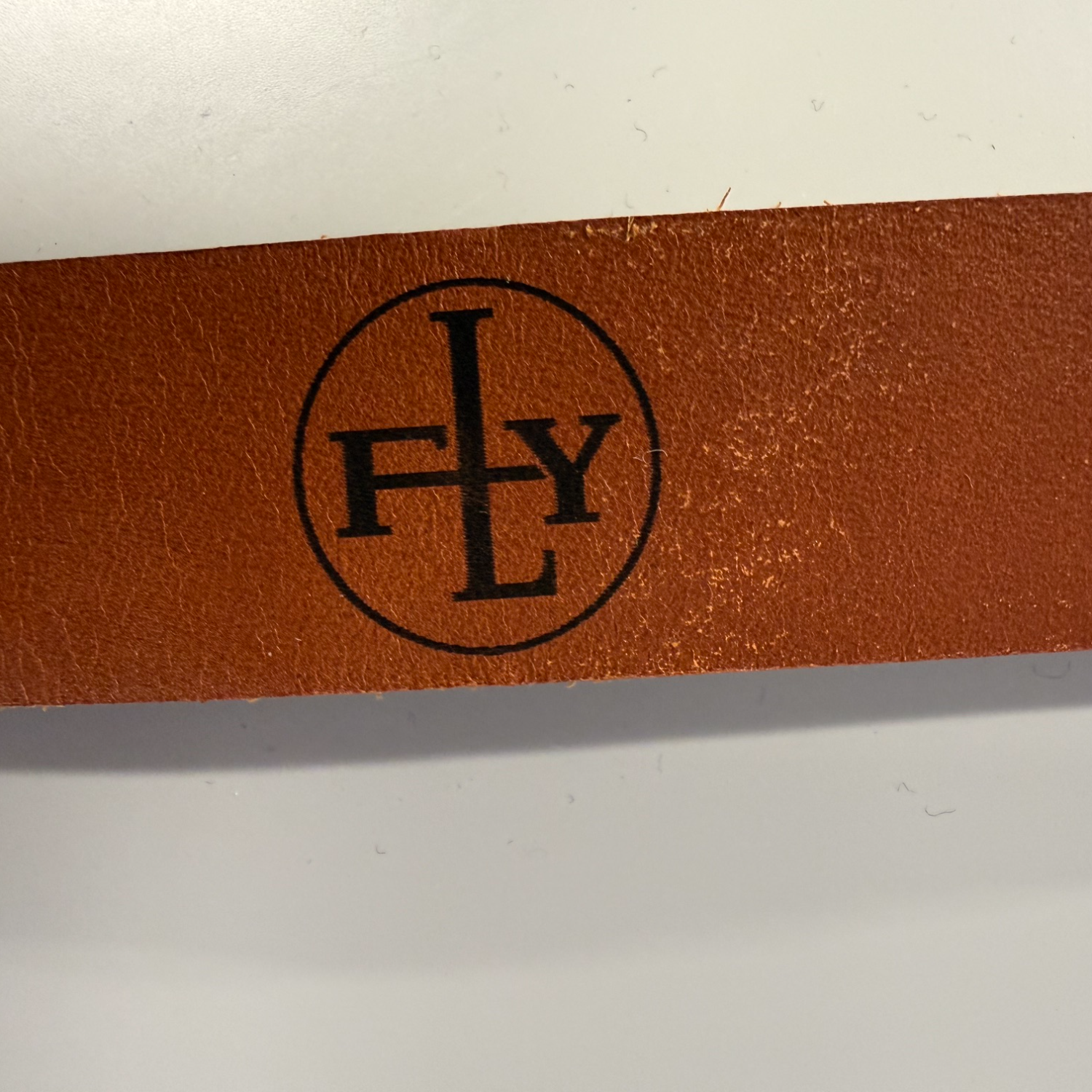

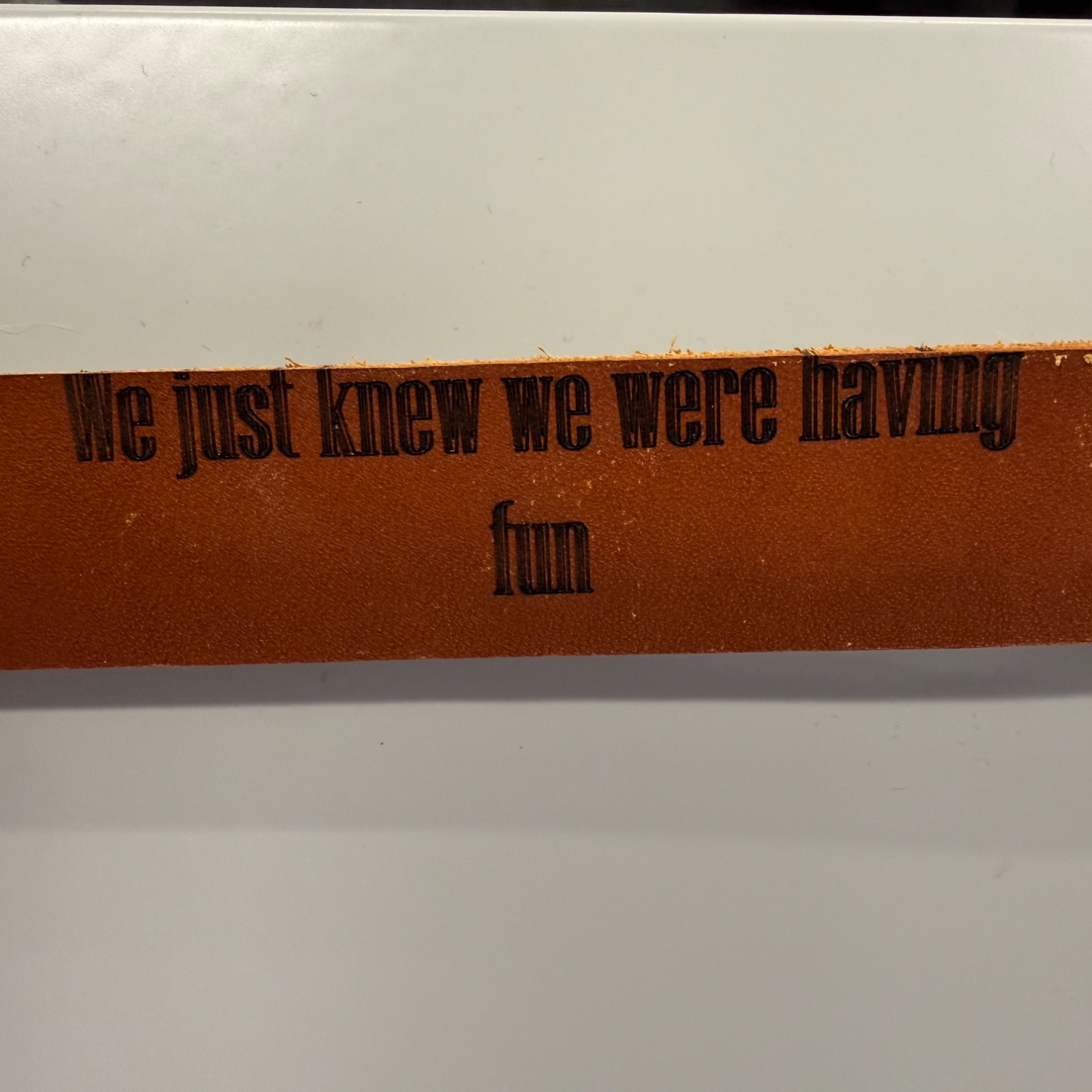

Brown Top Grain Cowhide Leather
5 & 7 oz leather straps
MachineM1 Ultra(Blue light · 10W)
Processing ModeProcess on baseplate
Processing typeEngrave
Thickness26.5mm
Material colorBrown
Brand/SupplierKlum House
SettingsPass1
Speed1000mm/s
Power70%
Spacing200
DPI500DPI
Dot duration100s
Engraving directionBi-directional
Laser typeBlue light
Pass1
Speed1000mm/s
Power70%
Spacing200
DPI500DPI
Dot duration100s
Engraving directionBi-directional
Laser typeBlue light
Version: 2.0.0
0
Precautions
When operating with open covers or using open-type devices, be sure to wear laser goggles that match the wavelength of the light source. Different light sources (blue light/infrared/CO2/UV) have different wavelengths; please pay attention to whether the wavelength protected by the goggles matches the laser;
Processing chlorine-containing materials is prohibitedIt is strictly forbidden to process chlorine-containing materials such as PVC, artificial leather, or veneer soft rubber. Laser burning releases highly corrosive toxic gases such as hydrogen chloride, endangering human health and corroding guide rails, lenses, and circuit boards. When unsure about the material, first conduct a small-area test and observe the smell.
Pay attention to odor prevention during processingMaterials such as leather, rubber, and silicone produce noticeable odors; ensure good ventilation and wear protective masks if necessary.
Prevent high-temperature burns after processingFreshly processed materials and cuts are very hot; please wait for cooling or wear gloves to pick up parts; do not touch them directly.
Did these settings work?No results yet
No one has shared a result yet. Be the first to let other makers know if these settings worked.
