Stainless Steel Military Pendant (Keychain, Necklace)

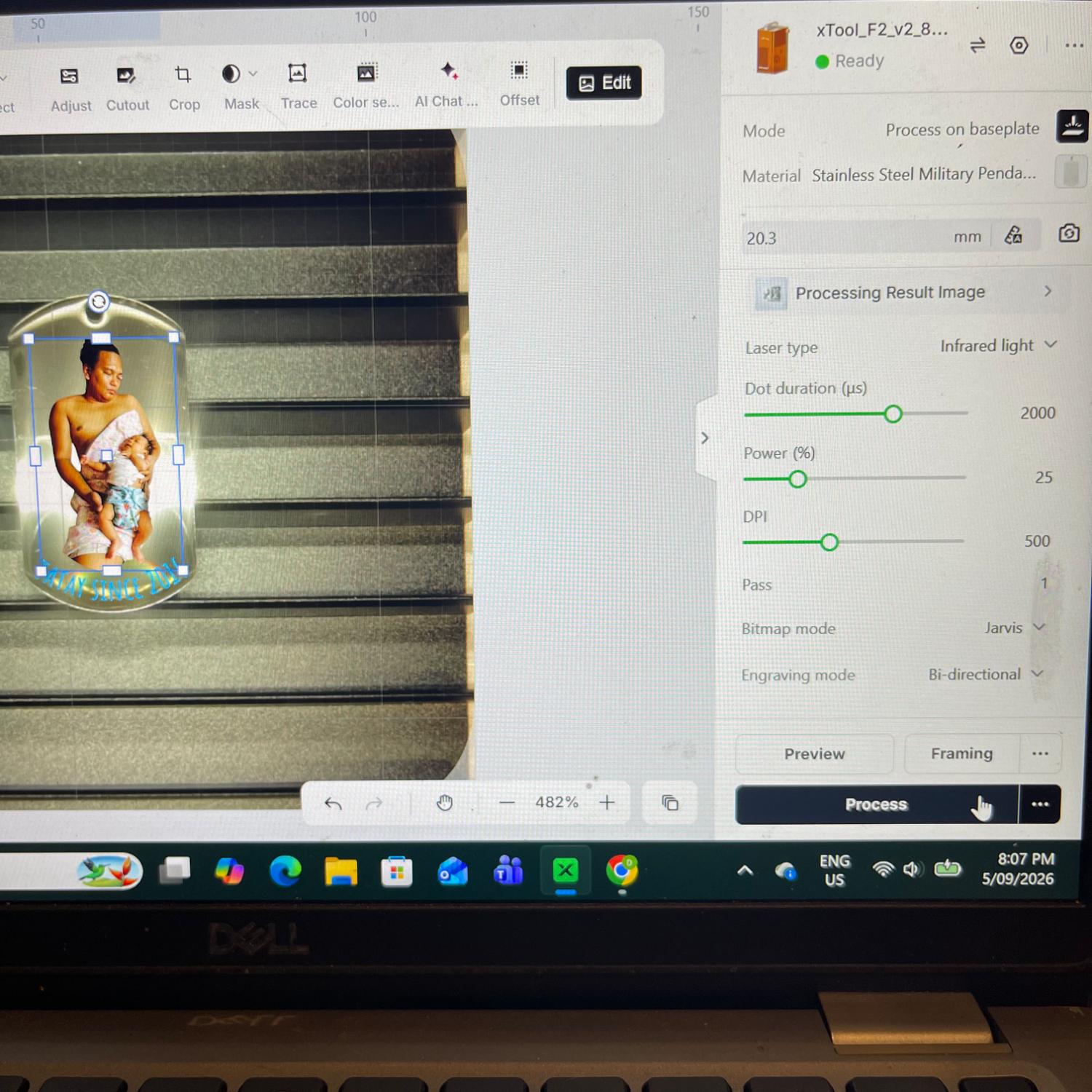

Machine & Source: xTool F2 Series (Infrared Light Source)
Material / Blank: Stainless Steel Military Pendant
Operation Mode: Process on Baseplate (Engrave / Bitmap Photo Engraving)
Dot Duration: 2000 μs
Power: 25%DPI: 500
DPIPasses: 1 Pass
Bitmap Mode: Jarvis Mode
Engraving Mode: Bi-directional

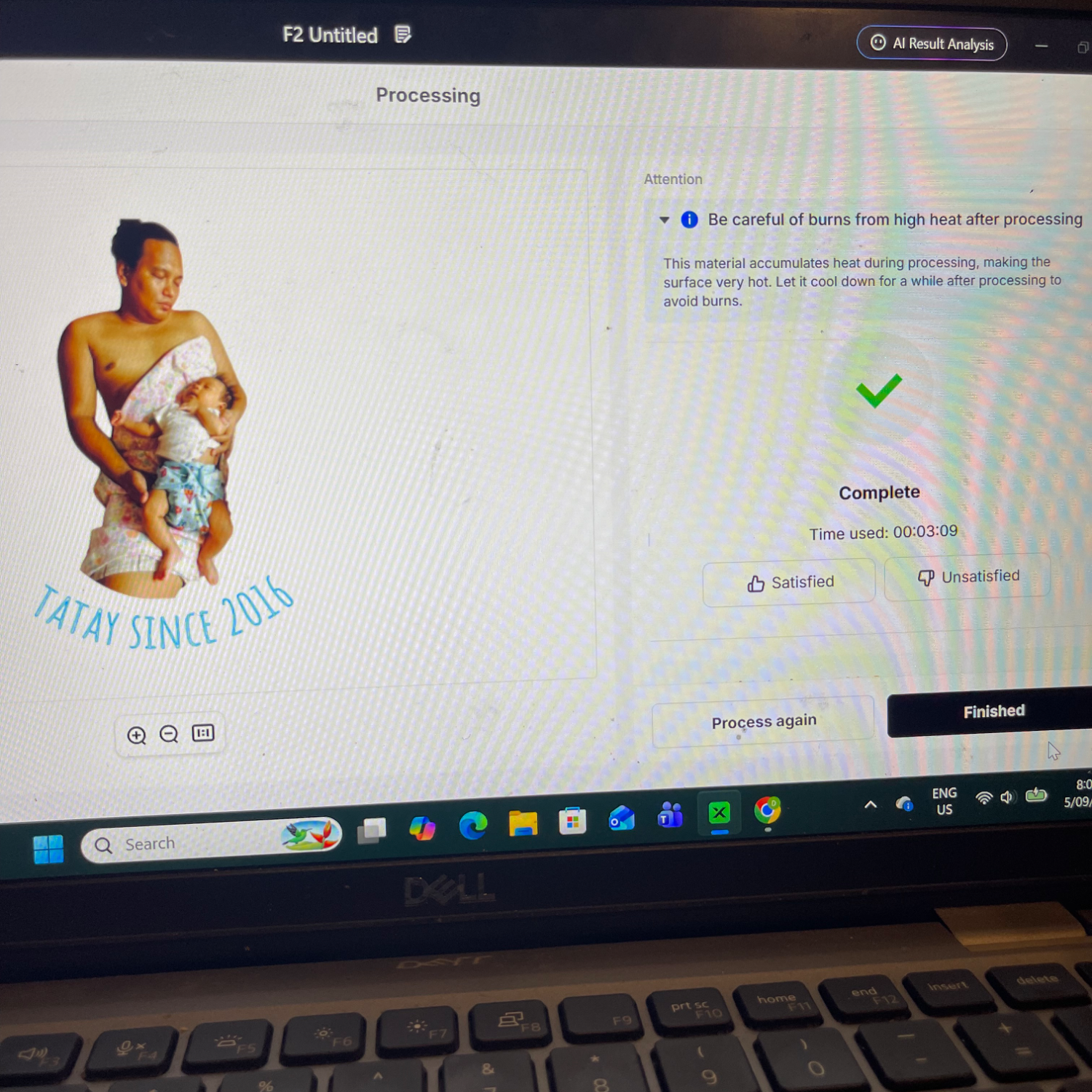

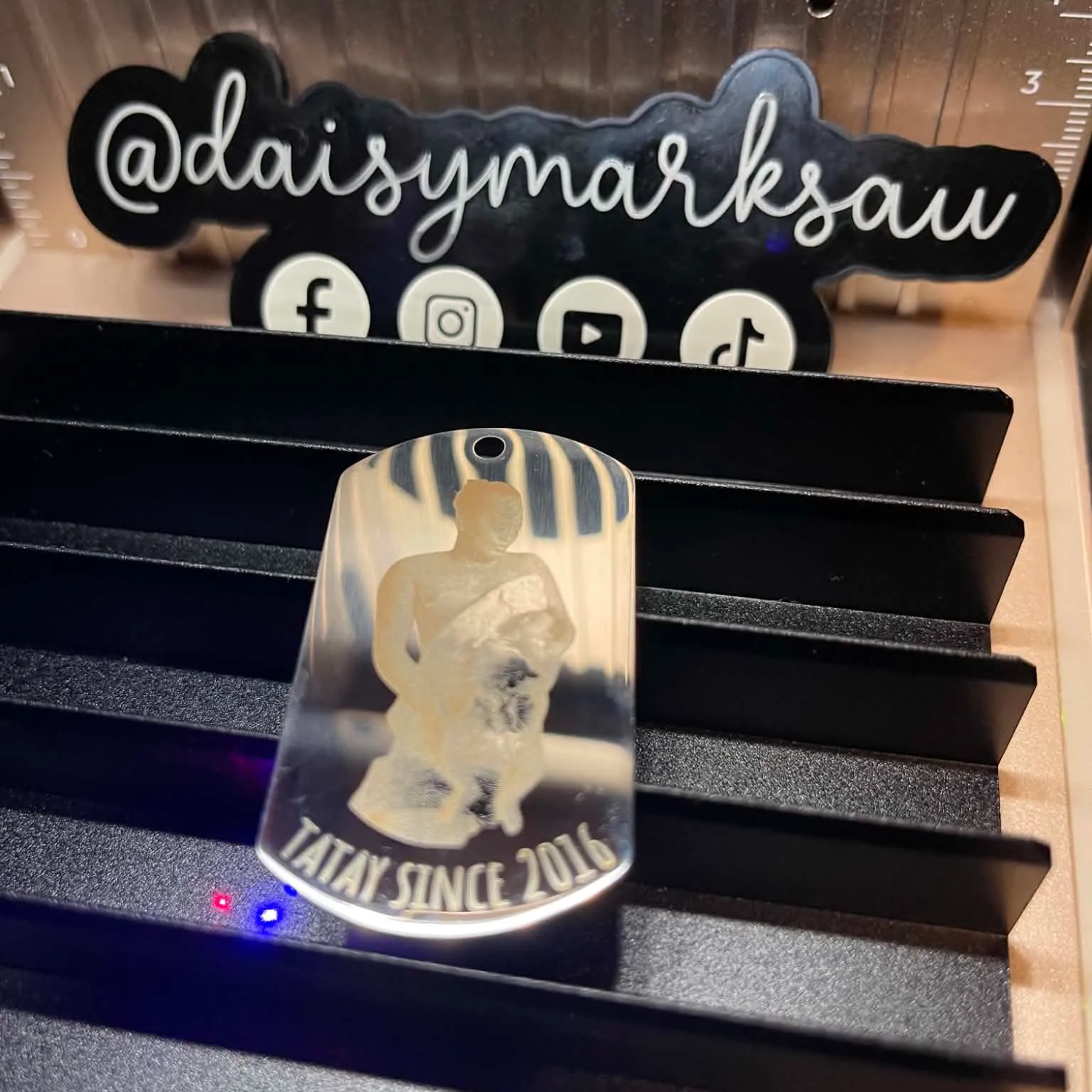

Used these settings to engrave a detailed grayscale family photo onto a stainless steel military dog tag using the xTool F2 Infrared light source.

Kept the power moderately low at 25% combined with a high 2000 μs Dot Duration and 500 DPI to bring out crisp details and smooth shading in the portrait without over-burning or melting the metal. Jarvis Mode was used for the bitmap dithering to handle the skin tones and fabric textures naturally.

MachineF2(Fiber IR · 5W)

Processing ModeProcess on baseplate

Processing typeEngrave

Brand/Supplierxtool sample from f2

Settings

Pass1

Speed80mm/s

Power25%

DPI500DPI

Dot duration2000s

Power range[1, 25]

Bitmap modeJarvis

Engraving modeBi-directional

Engraving methodDotting

Laser typeIR

Version: 1.8.22

🔔 Processing Tips

Prep the material and Manual Focus

Thoroughly clean the stainless steel surface with isopropyl alcohol before processing to remove any fingerprint oils or smudge marks. Make sure to dial in a precise manual focus since shiny metal tags can occasionally confuse the automatic height sensors.
