Can glass

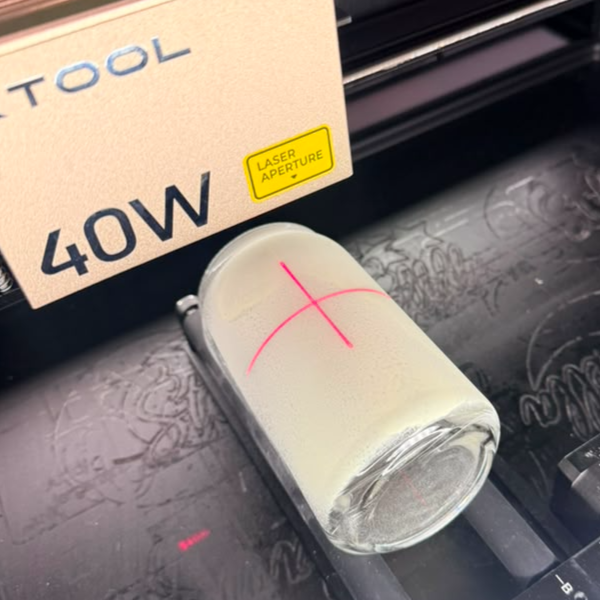

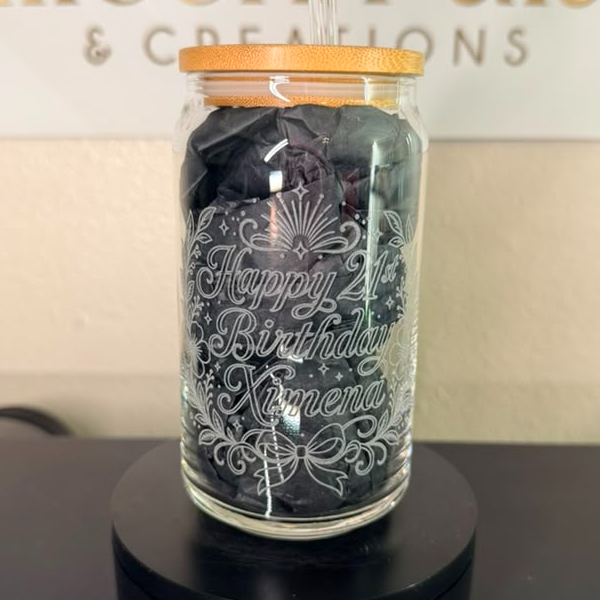

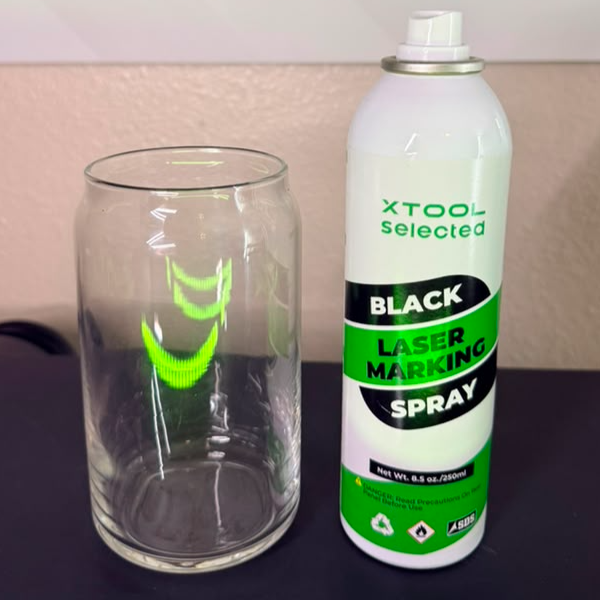

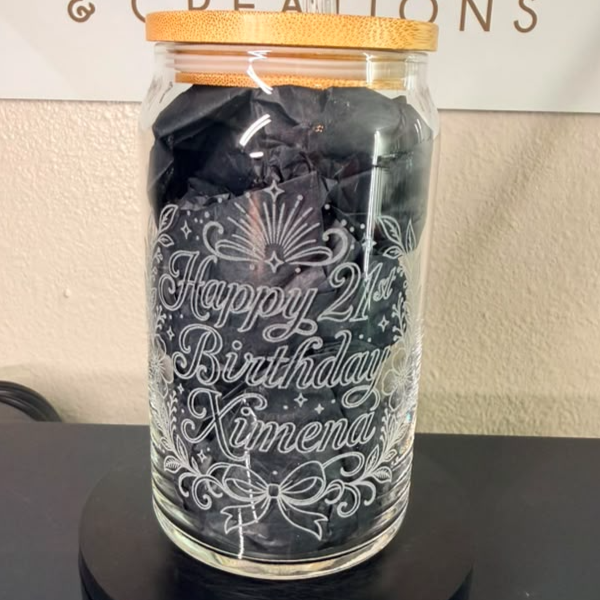

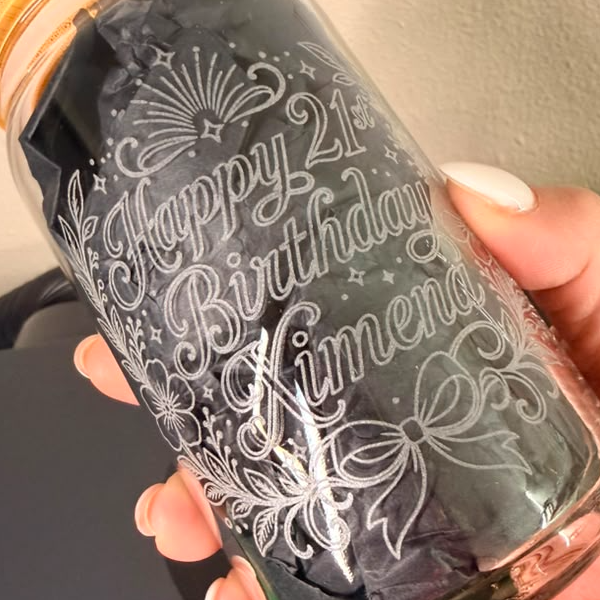

Engraved a clear can glass using the xTool S1 40W with the rotary attachment. I used 190 mm/s speed, 90% power, and 1 pass. The glass was prepared with a coating before engraving to help the blue diode laser mark the clear surface. The engraving came out clean, detailed, and consistent around the glass. These settings worked well for detailed designs on clear can glass.

MachineS1(Blue light · 40W)

Processing ModeUse rotary attachment

Processing typeEngrave

Thickness3mm

Settings

Pass1

Speed190mm/s

Power90%

Spacing130°

Engraving modeBi-directional

Laser typeBlue light

Pass1

Speed190mm/s

Power90%

Spacing130°

Engraving modeBi-directional

Laser typeBlue light
