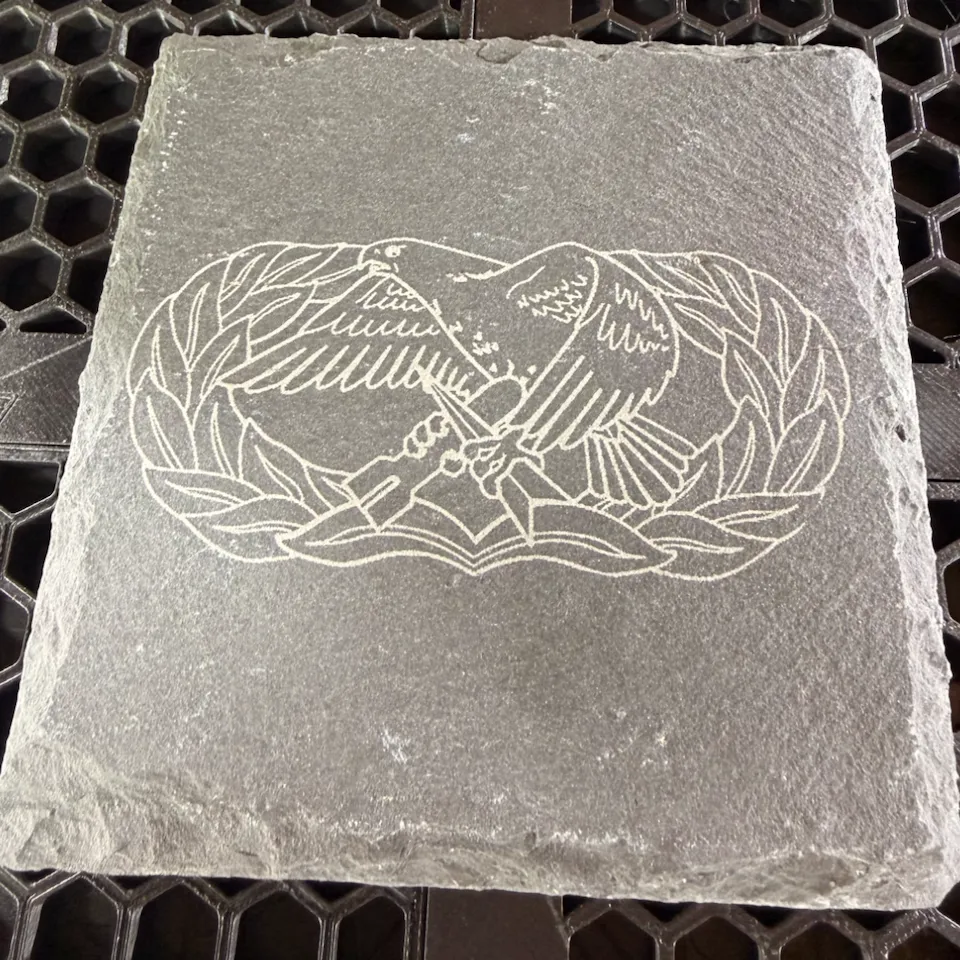

Square Rock Coaster

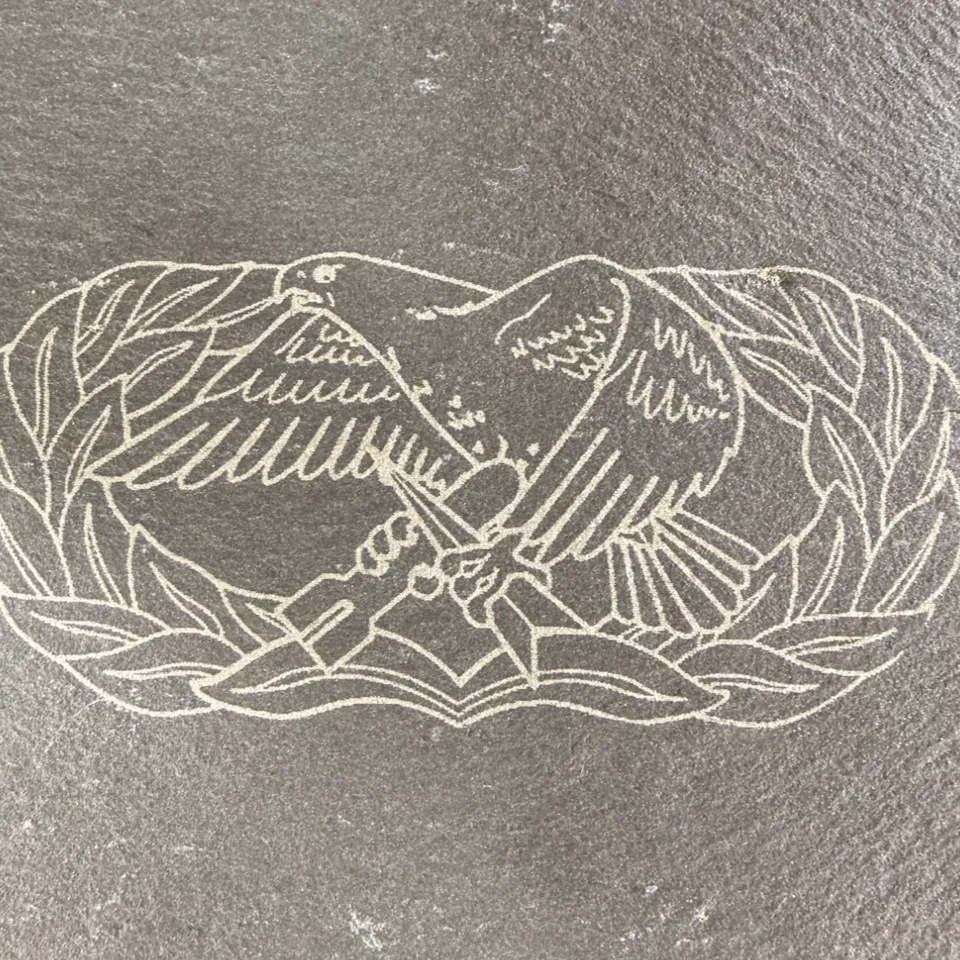

Air Force Maintenance Badge - Slate Coasters. Crisp Lines with great detail from photo converted to SVG. Recommended setting within xTool was at 50% power but found this to be a bit too light on the engrave therefore adjusted to 58%.
MachineM2(Blue light · 10W)
Processing ModeProcess on baseplate
Processing typeEngrave
Thickness5mm
Material colorGray
SettingsPass1
Speed120mm/s
Power58%
Spacing100°
Bitmap modeJarvis
Engraving modeBi-directional
Airflow of air pump15%
Min Output Power3%
Power control modeFOLLOW_ACTUALLY_POWER
Pass1
Speed120mm/s
Power58%
Spacing100°
Bitmap modeJarvis
Engraving modeBi-directional
Airflow of air pump15%
Min Output Power3%
Power control modeFOLLOW_ACTUALLY_POWER
Version: 2.0.0
Parameter ConverterLimited-time Free
Convert to My Machine Parameters0
Precautions
Wear goggles that match the wavelength of the light sourceWhen operating with open covers or using open-type devices, be sure to wear laser goggles that match the wavelength of the light source. Different light sources (blue light/infrared/CO2/UV) have different wavelengths; please pay attention to whether the wavelength protected by the goggles matches the laser;
Prevent high-temperature burns after processingFreshly processed materials and cuts are very hot; please wait for cooling or wear gloves to pick up parts; do not touch them directly.
