1mm copper

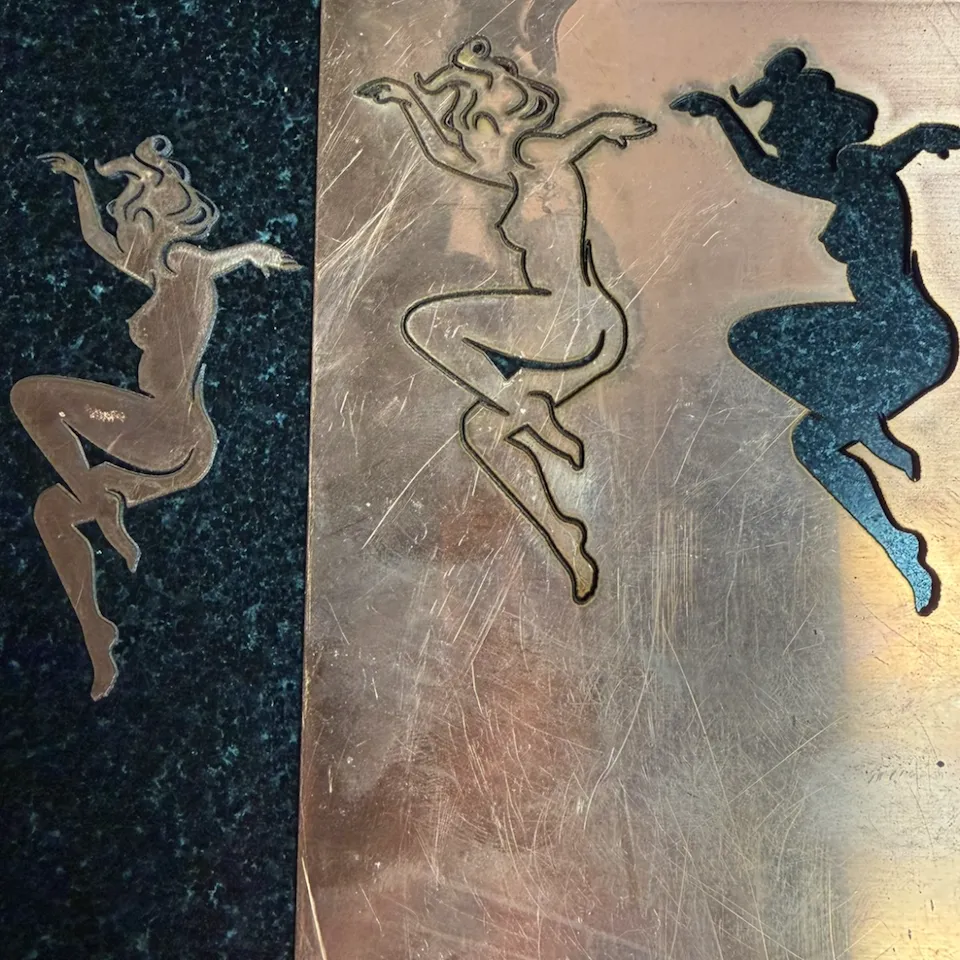

1 mm copper plate cut
MachineF2 Ultra(Fiber IR · 60W)
Processing ModeEmbossment
Processing typeIncise
Thickness1mm
SettingsPass1
Speed30mm/s
Power100%
Spacing120°
Engraving modeBi-directional
Engraving methodScanning
Laser typeIR
Frequency25kHz
Pulse width200s
Engraving angle15°
Number of layers200
Descend at the z-axistrue
by N mm0.01
for every N layers1
Pass1
Speed30mm/s
Power100%
Spacing120°
Engraving modeBi-directional
Engraving methodScanning
Laser typeIR
Frequency25kHz
Pulse width200s
Engraving angle15°
Number of layers200
Descend at the z-axistrue
by N mm0.01
for every N layers1
