Acrylic has become one of the most beloved materials in the laser cutting community, and for good reason. This versatile plastic offers a perfect combination of durability, clarity, and workability that makes it ideal for everything from intricate jewelry and custom signage to protective enclosures and artistic installations. When you combine acrylic's inherent qualities with the precision of laser cutting technology, you unlock a world of creative possibilities that can transform your DIY projects from ordinary to extraordinary.
Whether you're a seasoned maker looking to refine your technique or a curious beginner wondering if laser cutting acrylic is within your reach, this comprehensive guide will walk you through everything you need to know about how to laser cut acrylic successfully. We'll explore the fundamentals of the process, help you choose the right equipment, and share professional tips that will elevate the quality of your finished pieces.
Understanding Acrylic and Laser Cutting Compatibility
Before diving into the practical aspects of how to laser cut acrylic, it's essential to understand what makes this material so well-suited for laser processing. Acrylic, also known by brand names like Plexiglas, Perspex, and Acrylite, is a thermoplastic that responds exceptionally well to laser energy. When a focused laser beam strikes the acrylic surface, it rapidly heats the material, causing it to melt and vaporize along the cutting path. This process creates remarkably clean cuts with smooth, often flame-polished edges that require minimal post-processing.
The laser cutting process works particularly well with acrylic because of how the material absorbs laser energy. CO₂ lasers, which emit light at a wavelength of 9.6 to 10.6 micrometers, are especially effective because acrylic readily absorbs energy at this wavelength. This efficient energy absorption allows for clean cuts even through clear acrylic sheets, making CO₂ lasers the gold standard for professional acrylic cutting.
However, the rise of diode laser cutters has opened new possibilities for home makers and small workshops. While diode lasers work differently than CO₂ systems, they can effectively cut certain types of acrylic, particularly darker and non-transparent varieties. Understanding which type of acrylic works best with your specific laser system is crucial for achieving optimal results.

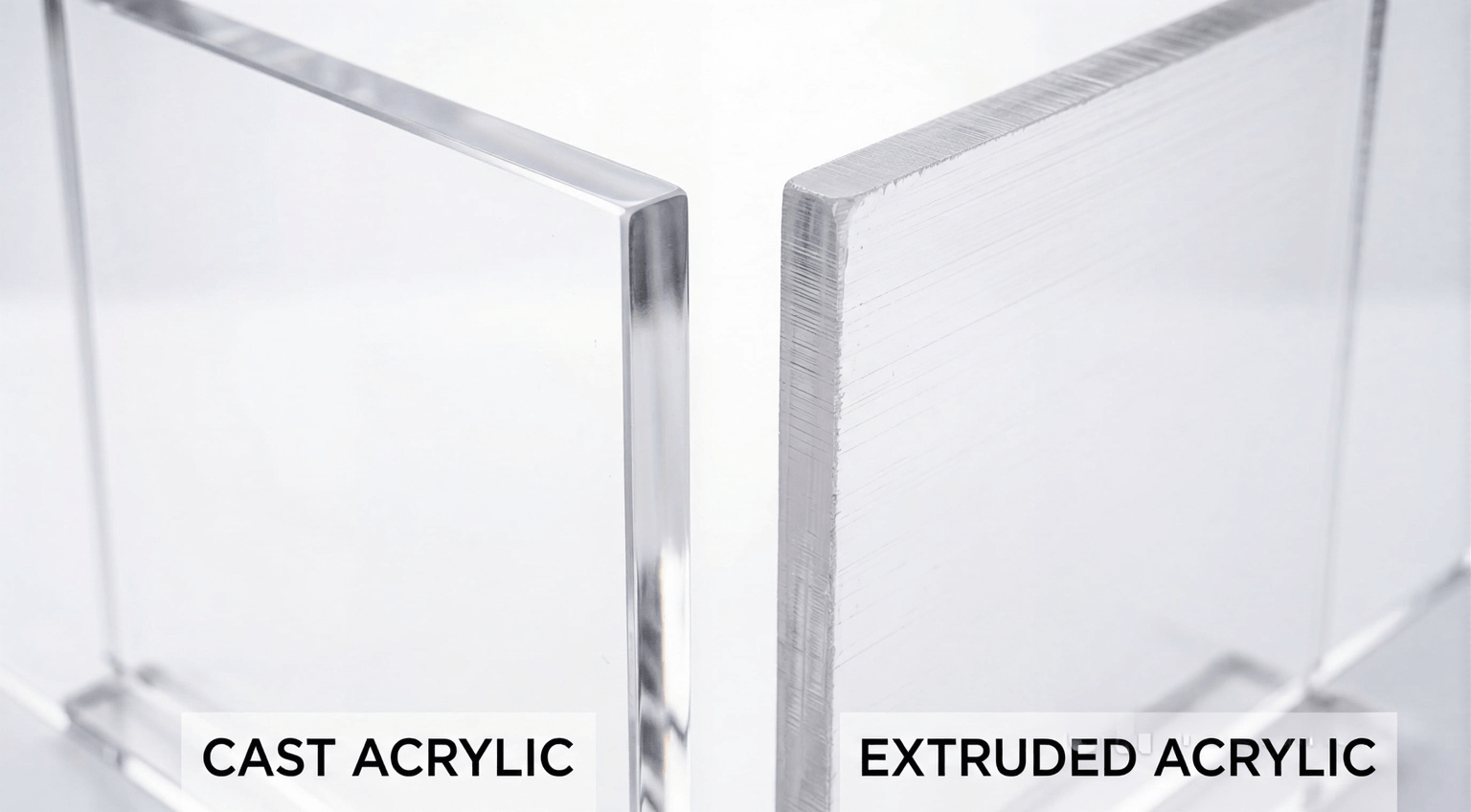

Cast Acrylic vs. Extruded Acrylic: Choosing the Right Material
One of the most important decisions you'll make when learning how to laser cut acrylic is selecting between cast and extruded acrylic sheets. These two manufacturing processes create materials with distinctly different characteristics that affect both cutting and engraving results.
Cast acrylic is produced by pouring liquid acrylic into molds, where it slowly cures into sheets. This manufacturing method creates a material with a higher melting point and more uniform internal structure. When you laser cut cast acrylic, you'll notice that it produces exceptionally clean engraving results with a frosted, white appearance that creates beautiful contrast against the material's base color. The cut edges of cast acrylic can achieve a brilliant flame-polished finish that looks almost glass-like in its clarity and smoothness.
Extruded acrylic, on the other hand, is manufactured by pushing heated acrylic through rollers to create continuous sheets. This process makes extruded acrylic more affordable and readily available, though it has a lower melting point than cast acrylic. While extruded acrylic is less ideal for engraving—it tends to melt rather than frost, producing less defined marks—it excels at cutting. The lower melting point means extruded acrylic can often be cut at slightly lower power settings, and it still produces beautifully smooth, flame-polished edges.
For most laser cutting projects, especially those focused on creating parts, enclosures, or decorative pieces where cutting quality matters more than engraving, extruded acrylic offers an excellent balance of performance and value. However, if your project involves detailed engraving work or you want the absolute best edge finish, investing in cast acrylic will deliver superior results.
Essential Equipment: Choosing Your Laser Cutter
Understanding how to laser cut acrylic effectively begins with selecting the right equipment for your needs and budget. The laser cutter market offers several options, each with distinct advantages for acrylic processing.
CO₂ laser cutters remain the professional standard for acrylic work. These machines use a gas laser to generate a beam that acrylic absorbs extremely efficiently. CO₂ lasers can cut through clear acrylic with ease and handle a wide range of acrylic thicknesses, from thin 1mm sheets to thick 25mm slabs. If you're serious about acrylic cutting and have the budget and space for a larger machine, a CO₂ laser cutter will provide the most versatile and reliable performance.
Diode laser cutters have emerged as popular alternatives, particularly for home workshops and makers working with limited space and budgets. Modern high-power diode lasers, typically ranging from 10W to 60W, can effectively cut dark and non-transparent acrylic sheets. A 10W diode laser can typically cut through 5-6mm of dark acrylic in a single pass, while more powerful 20W to 40W systems can handle thicker materials or cut faster. The key limitation of diode lasers is their struggle with clear acrylic—the visible light wavelength they emit tends to pass through transparent materials rather than being absorbed, making cutting inefficient or impossible.
When selecting a laser cutter for acrylic work, consider these critical features:
- Power output determines the maximum thickness you can cut and your cutting speed. As a general rule, CO₂ laser systems require approximately 8-15 watts of power per millimeter of acrylic thickness. For diode lasers, a minimum of 10W is recommended for cutting acrylic, with 20W or higher providing better performance for thicker materials.
- Working area defines the maximum size of projects you can create. Consider not just your current needs but also future projects you might want to tackle. A larger working area provides more flexibility but comes with a higher price tag.
- Air assist capability is absolutely essential for quality acrylic cutting. An air assist system directs a focused stream of air at the cutting point, which serves multiple crucial functions: it blows away molten material and fumes, prevents flaming and charring, and helps cool the cut edge for a cleaner finish. Without proper air assist, you'll struggle to achieve professional-quality results.
Preparing Your Acrylic for Laser Cutting
Proper preparation is a crucial step in learning how to laser cut acrylic successfully. Taking time to prepare your material correctly will dramatically improve your results and reduce frustration.
Most acrylic sheets arrive with protective paper or plastic film on both sides. This protective covering prevents scratches during shipping and storage, but it requires careful consideration when laser cutting. For the top surface where the laser beam first contacts the material, removing the protective film is generally recommended. Leaving the film on can cause several problems: it may melt and create sticky residue on your cut edges, it can increase flaming and smoke production, and it may interfere with the laser's ability to cut cleanly.
The bottom protective film presents a more nuanced decision. Some makers prefer to leave it on to reduce "flashback" marks—small blemishes that occur when the laser beam reflects off the cutting bed and back onto the material's underside. However, the bottom film can also melt and adhere to the cut edge, requiring additional cleanup. The best approach depends on your specific setup. If you're using a honeycomb cutting bed or have your material properly elevated, removing both protective films typically produces the cleanest results.
Before committing to your final project, always secure your acrylic sheet firmly to your cutting bed. Proper material fixation prevents shifting during cutting, which can ruin intricate designs. Many laser cutters include pin tables or other elevation systems that lift the acrylic slightly above the bed surface. This elevation is important because it allows the laser beam to complete its cut without reflecting off the bed surface, and it prevents grid patterns from the bed from being marked onto your material.
Mastering Laser Settings for Perfect Acrylic Cuts
Learning how to laser cut acrylic effectively requires understanding and optimizing three primary parameters: power, speed, and frequency. These settings work together to determine cut quality, and finding the right balance for your specific material and machine is essential.
- Power determines how much laser energy is delivered to the material. For cutting acrylic, you generally want to use relatively high power settings—typically 70-100% of your laser's maximum output, depending on material thickness. Higher power allows the laser to fully penetrate the material and create that desirable flame-polished edge. However, excessive power can cause overheating, leading to melted edges or dimensional inaccuracies.
- Speed controls how quickly the laser beam moves across the material. Slower speeds give the laser more time to melt and vaporize material at each point along the cut path. For quality cuts in acrylic, you'll typically use slower speeds than you might for engraving. The ideal speed depends on your laser's power and the acrylic's thickness—thicker materials require slower speeds to ensure complete penetration. Finding the sweet spot where the laser cuts completely through without excessive melting is key to achieving those beautiful, clear edges that make laser-cut acrylic so appealing.
- Frequency (or pulse rate) determines how many times per second the laser fires. For acrylic cutting, frequencies typically range from 5,000 to 20,000 Hz. Cast acrylic generally performs well at higher frequencies, while extruded acrylic often benefits from lower frequencies to reduce melting. Experimenting with frequency settings can help you fine-tune edge quality.
The relationship between these parameters is interconnected. If you increase power, you can typically increase speed while maintaining cut quality. If you're experiencing incomplete cuts, you can either increase power, decrease speed, or make multiple passes at moderate settings. For thicker acrylic, multiple passes at moderate power often produce better results than a single pass at maximum power, as this approach reduces heat buildup and prevents edge deformation.
Material testing is absolutely non-negotiable when learning how to laser cut acrylic. Every sheet of acrylic can vary slightly in composition, thickness, and how it responds to laser energy. Before cutting your final project, always run test cuts on scrap pieces of the exact same material. Start with conservative settings and gradually adjust until you achieve the desired result. Document your successful settings for future reference—building a personal library of tested settings for different acrylic types and thicknesses will save you time and material in the long run.
Step-by-Step Process: How to Laser Cut Acrylic
Now that we've covered the fundamentals, let's walk through the complete process of how to laser cut acrylic from start to finish.
Step 1: Design Your Project
Begin by creating or selecting your design in vector format. Vector files use mathematical paths rather than pixels, which allows the laser cutter to follow precise cutting lines. Popular design software includes Adobe Illustrator, Inkscape (free), CorelDRAW, and specialized laser cutting software. When designing for acrylic, keep in mind that the laser beam has a finite width (called kerf), typically around 0.1-0.3mm. For projects requiring precise fit, you may need to account for this kerf in your design.
Pay attention to your design's complexity and cutting sequence. When cutting multiple parts from a single sheet, plan your cuts to minimize heat buildup in any one area. Alternating between different sections of your sheet allows previously cut areas to cool while the laser works elsewhere.
Step 2: Prepare Your Material
Select the appropriate acrylic type and thickness for your project. Clean the surface to remove any dust or debris that could interfere with cutting. Decide whether to remove the protective film based on the considerations discussed earlier. Secure the acrylic sheet firmly to your cutting bed, ensuring it's flat and level.
Step 3: Configure Your Laser Cutter
Load your design file into your laser cutter's control software. Set the correct focal length—this is critical for achieving optimal cut quality. Most laser cutters include focusing tools or auto-focus features to help you set the proper distance between the laser lens and material surface. Configure your initial cutting parameters based on your material type and thickness. If you're working with a new material or haven't cut acrylic before, start with conservative settings and plan to run test cuts.
Step 4: Run Test Cuts
Using scrap material, run test cuts with your initial settings. Examine the results carefully. A perfect cut should penetrate completely through the material with smooth, clear edges. If the laser doesn't cut all the way through, increase power or decrease speed. If edges are melted or discolored, try increasing speed or decreasing power. If you see excessive charring or flaming, ensure your air assist is working properly and consider adjusting your settings.
Step 5: Execute Your Final Cut
Once you've dialed in the perfect settings through testing, load your production material and run your final cut. Monitor the cutting process, especially for longer jobs, to ensure everything proceeds smoothly. After cutting is complete, allow the acrylic to cool before handling—freshly cut edges can be hot.
Step 6: Finishing and Cleanup
Remove your cut pieces carefully. If any protective film remains, peel it off gently. Inspect edges for quality—properly laser-cut acrylic should have smooth, often flame-polished edges that require no additional finishing. If you do notice minor imperfections, you can polish edges with fine-grit sandpaper followed by a plastic polish, though this should rarely be necessary with optimal cutting settings.
Professional Tips for Superior Results
As you develop your skills in how to laser cut acrylic, these professional tips will help you achieve consistently excellent results:
Optimize your air assist. Proper airflow is perhaps the single most important factor in achieving clean cuts. Ensure your air assist nozzle is clean, properly positioned, and delivering adequate pressure. The air stream should be focused directly at the cutting point.
Consider your cutting order. When cutting complex designs with both interior and exterior cuts, always cut interior features first. This ensures the piece remains stable and properly positioned throughout the cutting process.
Account for material variations. Even sheets from the same manufacturer can vary slightly. Always test new batches of material before running production cuts.
Maintain your equipment. Keep your laser lens clean, check your air assist system regularly, and ensure your cutting bed remains level and clean. Well-maintained equipment produces consistently better results.
Experiment with multiple passes. For thicker acrylic, running two or three passes at moderate power often produces better edge quality than a single pass at maximum power. This approach reduces heat buildup and minimizes the risk of edge deformation.
Use proper ventilation. While acrylic doesn't produce toxic fumes like some plastics, laser cutting still generates smoke and particulates that should be properly ventilated. Ensure your workspace has adequate fume extraction.
Troubleshooting Common Acrylic Cutting Issues
Even experienced makers occasionally encounter challenges when learning how to laser cut acrylic. Here are solutions to common problems:
Incomplete cuts indicate insufficient laser power or too-fast cutting speed. Increase power, decrease speed, or add additional passes. Also verify that your focal length is set correctly.
Melted or rough edges suggest too much heat input. Try increasing cutting speed, decreasing power, or ensuring your air assist is working effectively. For extruded acrylic, reducing pulse frequency can also help.
Charring or discoloration around cuts typically results from inadequate air assist or accumulated residue. Clean your material surface, ensure proper airflow, and verify that your air assist nozzle isn't clogged.
Cracking or stress marks after cutting usually indicate too much heat buildup. Allow more cooling time between cuts in the same area, use multiple lighter passes instead of one heavy pass, or reduce your power settings.
Conclusion
Mastering how to laser cut acrylic opens up an incredible range of creative possibilities for makers, crafters, and DIY enthusiasts. By understanding the differences between cast and extruded acrylic, selecting appropriate equipment, optimizing your cutting parameters, and following proper preparation and cutting procedures, you can achieve professional-quality results that showcase the beauty and versatility of this remarkable material.
Remember that success with acrylic laser cutting comes from a combination of knowledge, proper equipment, and hands-on experience. Don't be discouraged if your first attempts aren't perfect—even professionals continue refining their technique with each project. Start with simple designs, document your successful settings, and gradually tackle more complex projects as your confidence grows.
