Wooden puzzles are having a moment. Wood-based puzzles dominated the market in 2024, accounting for over 45% of global share, and the COVID pandemic sparked a puzzling renaissance as people sought screen-free entertainment. What's driving this boom? Laser-cutting technology has made wooden puzzles more accessible and affordable, bringing precision once reserved for expensive hand-cut puzzles to everyday makers.
This guide shows you how to make laser cut wooden puzzles. You'll learn to design puzzle patterns, achieve perfect interlocking cuts, finish pieces like a pro, and even turn your hobby into income using a laser cutter — whether you're selling on Etsy or building a local business.
Step 1: Choose the Right Wood for Laser Cut Wooden Puzzles
Your wood choice sets everything else up for success — or frustration. The wrong material leads to rough edges, weak pieces, and puzzles that fall apart during assembly. The right material? Clean cuts, satisfying tactile feel, and pieces that snap together perfectly.
Baltic Birch Plywood is the gold standard for most makers, and for good reason. Its layered structure resists warping, cuts cleanly without excessive charring, and holds up to repeated assembly and disassembly. For standard jigsaw puzzles, stick at 3mm (1/8 inch) thickness. If you're designing layered or 3D puzzles, bump up to 4-5mm for extra stability and a more premium feel.
When you're ready to level up your puzzle game, hardwoods like maple, cherry, and walnut bring a completely different aesthetic. These woods turn puzzles into heirloom pieces — think personalized name puzzles for nurseries, wedding gifts with engraved dates, or decorative art puzzles that double as wall hangings. The natural grain patterns add character that plywood simply can't match.
Just starting out? Basswood and poplar are your friends. They're forgiving to cut, easy on your laser tube, and budget-friendly enough that mistakes won't sting. Plus, their light color makes them perfect canvases if you plan to paint or stain your puzzles.
Here's a pro tip that'll save you hours of sanding frustration: always use laser-grade plywood. Regular construction plywood uses interior glue that creates uneven burn marks and excessive smoke. Laser-grade plywood costs a bit more, but the difference in cut quality is immediately obvious.
Step 2: Design Your Wooden Puzzle
This is where hobby projects become "how did you make that?" showstoppers. Good design separates puzzles people actually want to solve from ones that end up shoved in a closet.
Understanding kerf is non-negotiable. When your laser cuts through wood, it doesn't just split the material — it vaporizes a thin line, typically between 0.08mm and 0.2mm wide. Ignore this, and your puzzle pieces will either fit way too loosely (pieces sliding around, frustrating to assemble) or too tightly (forcing pieces together, risking breakage). Run one kerf test with your specific laser and material, note the measurement, and use it for every future design. That five-minute test saves countless hours of reprinting.
Start with a style that matches your skill level. Classic jigsaw puzzles are surprisingly forgiving for beginners — the interlocking tabs hide minor imperfections. Animal silhouette puzzles work beautifully for kids' rooms and make great gifts. Name puzzles remain consistently popular sellers. Map puzzles tap into people's love of travel and geography. Layered 3D landscape puzzles create stunning desk pieces but require more precise cutting. Mechanical interlocking puzzles challenge both the designer and solver but demand exact tolerances.
If you're new to puzzle design, resist the urge to get fancy right away. A well-executed simple design beats an ambitious mess every time. Complexity scales quickly — what seems like a small addition can triple your troubleshooting time.
For software, most makers work with Adobe Illustrator, Inkscape (which is free), LightBurn, or Fusion 360 for mechanical puzzles. The key technical detail: use vector lines with hairline strokes for your cutting paths. Avoid overlapping paths at all costs — they cause double cuts that burn through the wood and leave ugly char marks.
Step 3: Set Up Your Laser Cutter Correctly
Perfect designs mean nothing if your machine settings are off. Dialing in your laser cutter is where theory meets reality.
For a typical CO₂ laser (40-60W) cutting 3mm Baltic Birch, start with 60-75% power at 15-25 mm/s speed. Make sure air assist is on — it prevents flames and reduces char. Focus must be precisely adjusted, not "close enough." Even a millimeter off creates wider kerfs and rougher edges.
But here's the reality: every machine behaves differently. Your laser's actual power output, mirror alignment, lens condition, and even ambient temperature affect results. Treat those numbers as starting points, not gospel. Always run a small test square before committing your full design. That test cut shows you exactly what's happening and lets you adjust before wasting material.
Step 4: Cut Your Laser Cut Wooden Puzzle
You've designed it, you've dialed in settings — now comes the moment of truth.
Before hitting start, run through your pre-flight checklist: Is the material flat against the bed? Are the lens and mirrors clean? Is air assist flowing properly? Are there any duplicate cutting paths in your file? These quick checks prevent most failed cuts.
During the cut, stay present. Watch for excessive flaming — if flames shoot up higher than an inch, your speed might be too slow or power too high. Check that pieces are separating cleanly without needing force to pop them out. If you see warping starting, stop immediately. Warped wood means uneven cutting, which ruins piece fit.
One simple trick that drastically improves results: apply masking tape to the wood surface before cutting. It catches most of the smoke residue and soot, leaving you with significantly less cleaning afterward. For puzzles you're selling or gifting, this step is absolutely worth the extra minute.
Step 5: Clean and Finish the Puzzle Pieces
Fresh-cut pieces look impressive, but they need finishing work to feel professional.
Light soot and burn residue are normal. Grab 220-320 grit sandpaper and give edges a quick pass. This removes char, smooths any roughness, and dramatically improves how the puzzle feels in hand. Don't over-sand — you just need to knock off the rough bits, not reshape edges.
For sealing and finishing, you've got options depending on your end goal. Natural oils like mineral oil or beeswax create a rustic, organic look that highlights wood grain. Clear polyurethane provides durable protection and a slight sheen — great for puzzles that'll see heavy use. Water-based varnishes dry faster, clean up easily, and are the safest choice if you're making children's puzzles.
Speaking of kids' puzzles: always use non-toxic finishes. Parents notice and appreciate this detail, and it's the right thing to do.
Step 6: Add Personalization (Optional but Profitable)
Here's where laser cutters really shine compared to traditional cutting methods.
Laser engraving lets you add names, birthdates, special messages, decorative patterns, or logos directly into the wood. This transforms a $15 puzzle into a $40 personalized gift. Personalized products command premium prices, and custom wooden puzzles consistently sell well as gifts for birthdays, weddings, and holidays SimplifiedseoconsultingSkyquestt.
Run engraving passes before cutting the puzzle pieces out — it's easier to handle and position. A child's name engraved on a shape puzzle, a wedding date on a heart-shaped couples puzzle, or a family name on a map puzzle turns functional items into keepsakes people actually keep.
Step 7: Test the Fit and Playability
Never skip this step, especially if you're selling puzzles or giving them as gifts.
Assemble the entire puzzle yourself before considering it finished. This reveals problems you can't see by looking at individual pieces. Are pieces too tight, requiring excessive force? Do they fall apart when you pick up sections? Are any connector tabs fragile or too thin? Are there rough spots you missed while sanding?
If pieces separate too easily, increase your tab size in the design file. If they're fighting you during assembly, adjust your kerf compensation — you probably need to account for a slightly wider cut. This testing and refinement process separates amateur puzzles from ones that feel professionally made.
The difference between a puzzle someone solves once and one they recommend to friends often comes down to these finishing details. Take the time to get them right.
Creative Laser Cut Wooden Puzzle Ideas
Looking for inspiration? Here are ten unique laser cut wooden puzzle ideas you can try in your workshop:

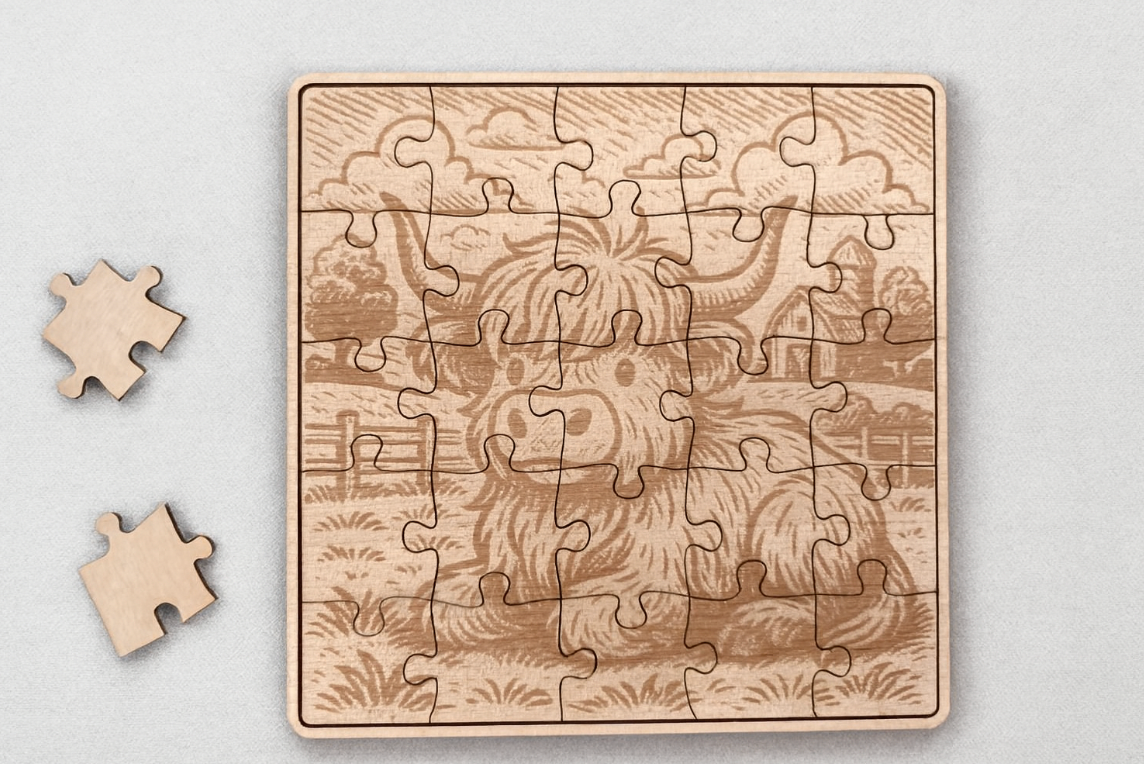

1. Wildlife-Shaped Jigsaw Puzzles: Cut animals like bears, owls, or dolphins into intricate puzzle pieces. These nature-inspired designs are fun for kids and adults alike.
Related Project: Highland Cow Jigsaw Puzzle
2. Educational Alphabet Boards: Create puzzles that help children learn letters and spelling. Each piece can be engraved with letters or simple words for interactive learning.
Related Project: Laser Cut Educational Animal Alphabet Puzzle

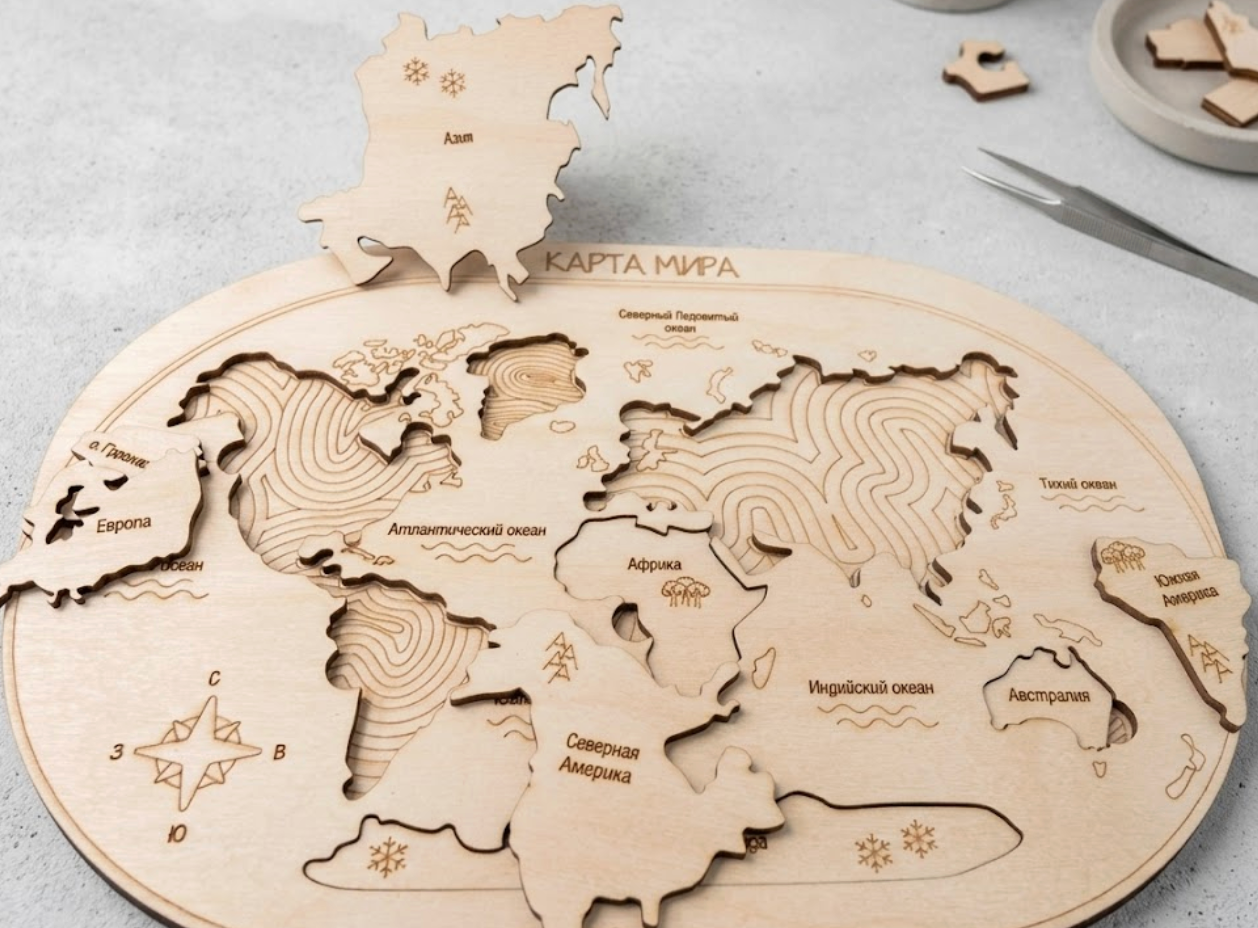

3. State or Country Map Puzzles: Design puzzles shaped like US states or world countries. Great for geography lessons, travel lovers, or souvenir gifts.
Related Project: Map Puzzles

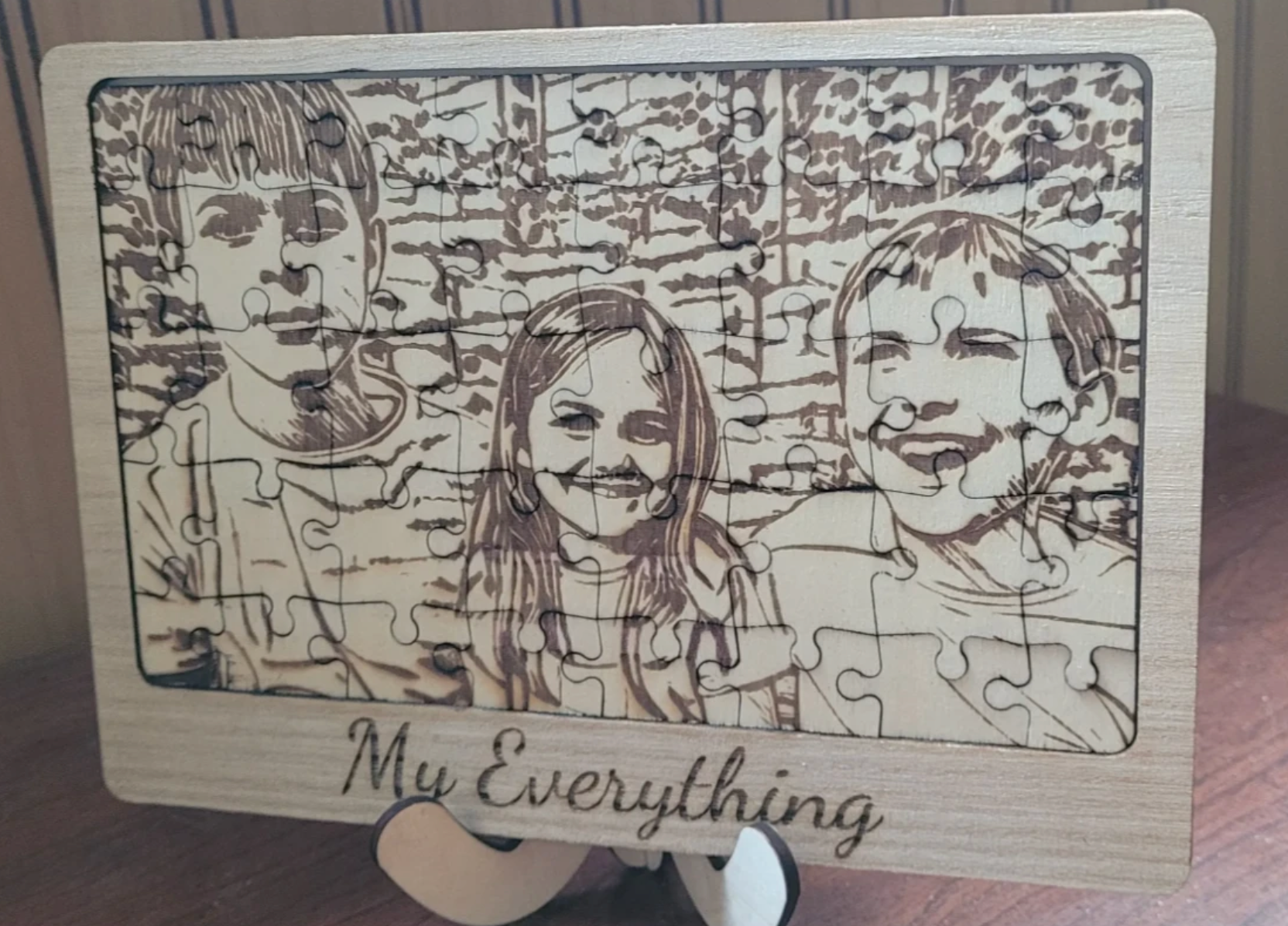

4. Photo-Engraved Memory Puzzles: Turn family photos or special images into personalized puzzles. A creative way to preserve memories while adding a challenge.
Related Project: Photo Frame and Picture Puzzle

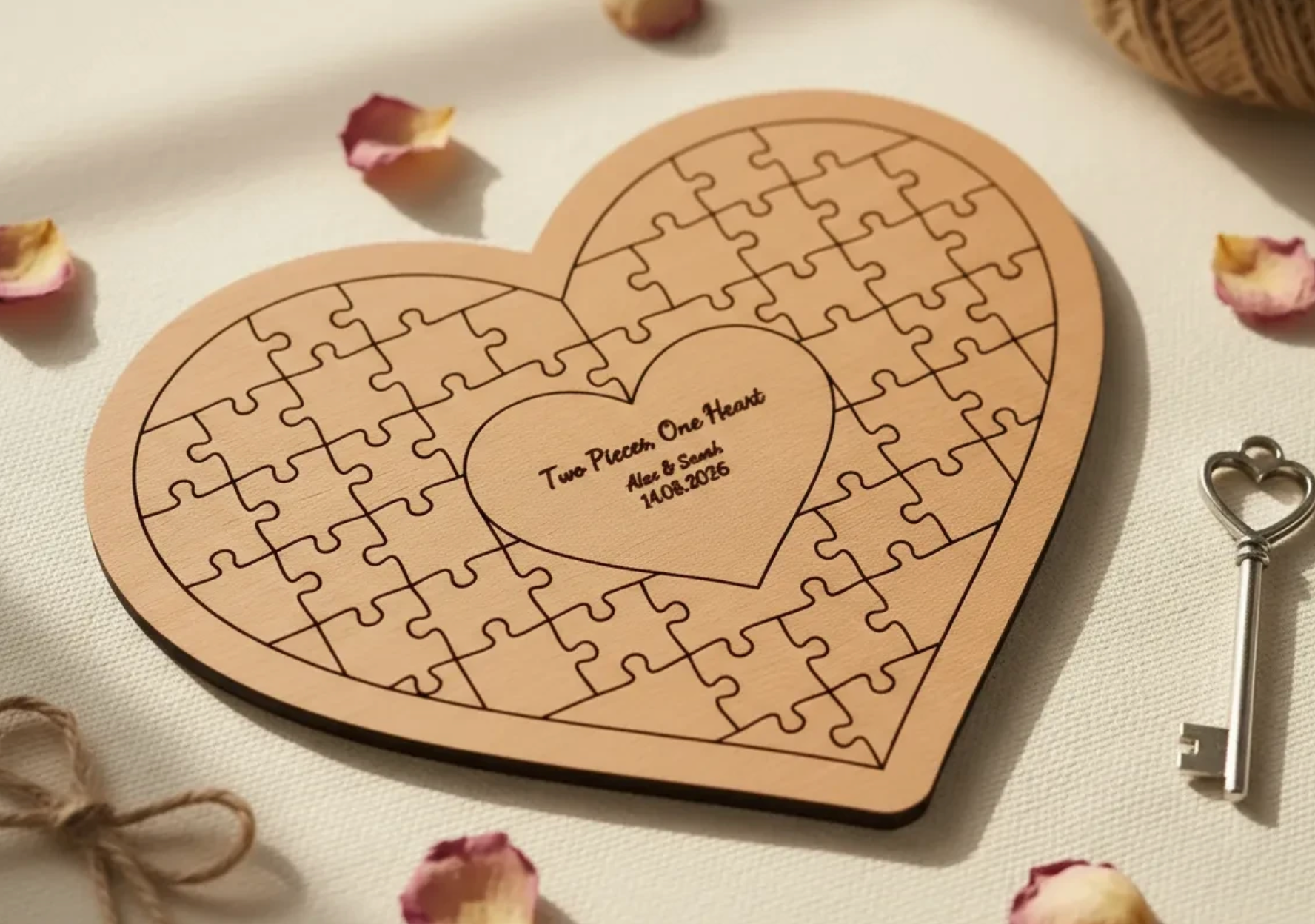

5. Wedding Keepsake Puzzles: Craft puzzles engraved with names, dates, or wedding photos. Couples can assemble them as a meaningful keepsake.
Related Project: Laser Cut Wooden Heart Puzzle with Personalized Engraving

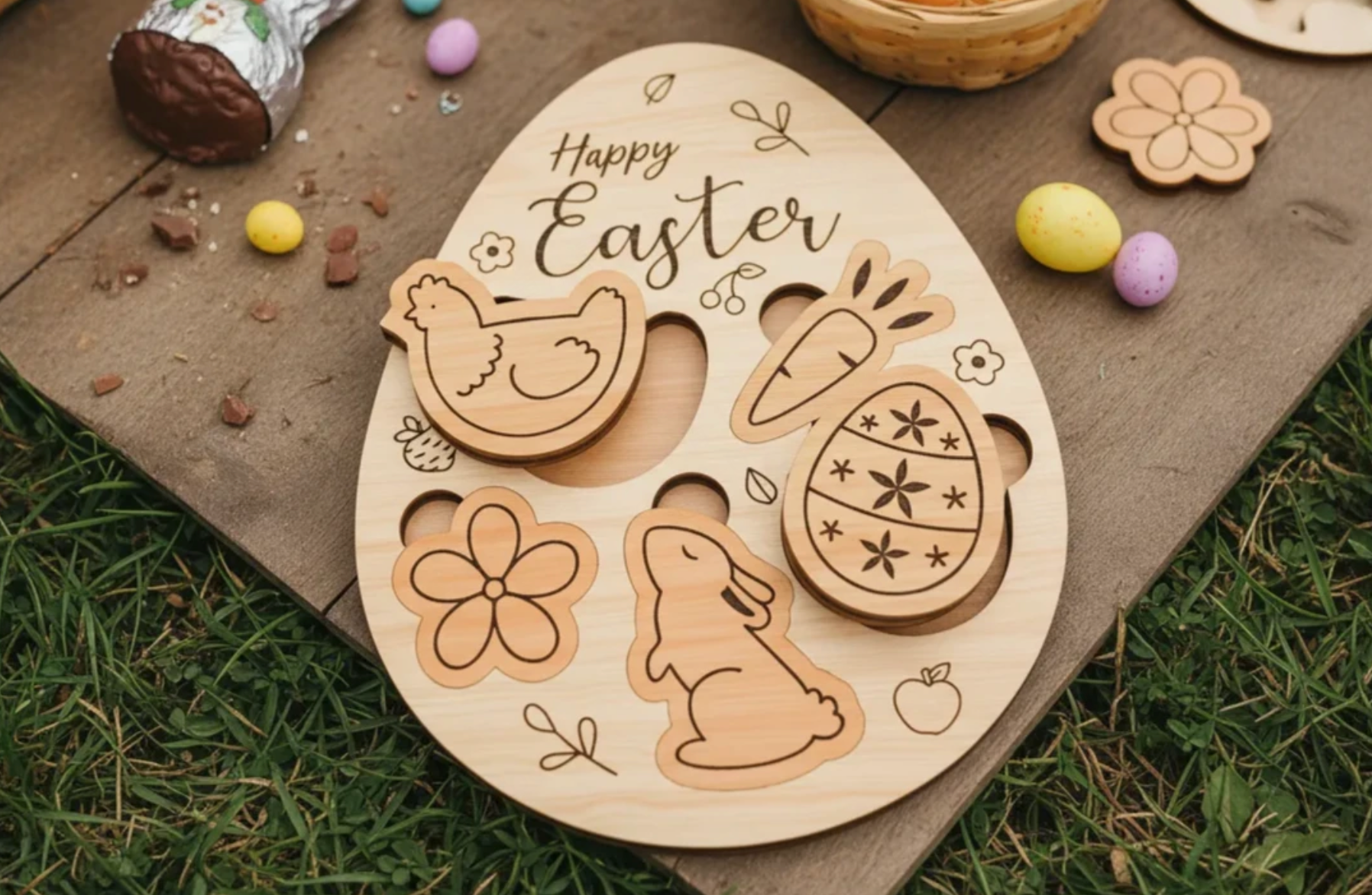

6. Seasonal Holiday Puzzles: Make themed puzzles for Christmas, Halloween, or Easter. These festive designs are perfect for gifts or seasonal décor.
Related Project: Wooden Easter Egg Puzzle

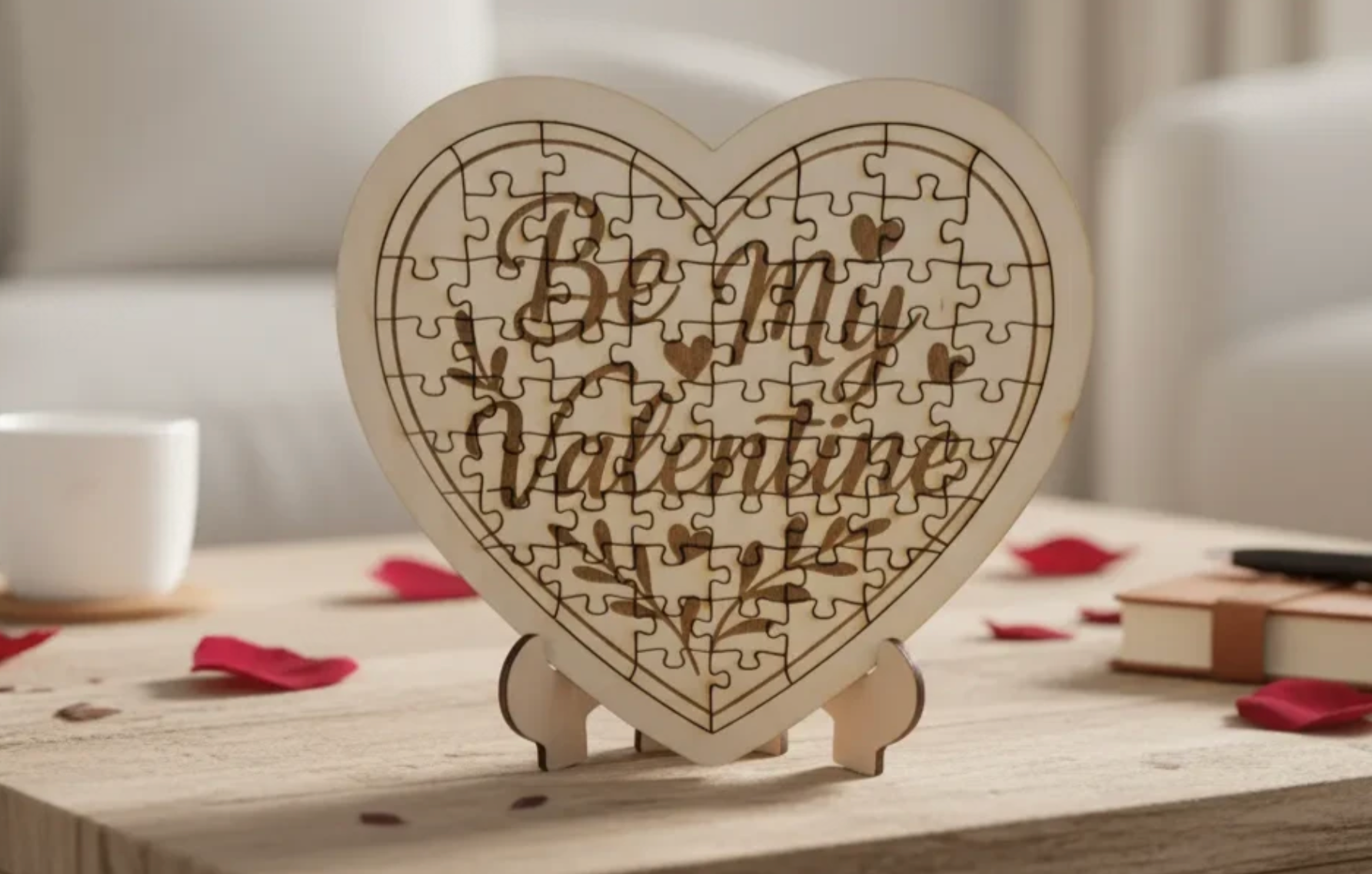

7. Hidden-Message Reveal Puzzles: Design puzzles that reveal a secret word, phrase, or image once completed. Perfect for surprise gifts or marketing promotions.
Related Project: Laser Cut Heart Shaped Valentine Puzzle
8. Mechanical Gear Brainteasers: Go beyond flat puzzles by cutting interlocking gears and mechanical shapes. These brainteasers challenge problem-solving skills.
9. Layered Topographic Landscape Puzzles: Use stacked layers of wood to mimic mountains, rivers, or city skylines. A striking mix of art and puzzle design.
10. Custom Pet Silhouette Puzzles: Create puzzles shaped like dogs, cats, or other pets. Personalized designs make them highly shareable and sellable.
The more unique your puzzle design, the more likely it is to stand out, get shared, and even become a profitable product.
Final Thoughts: Start Making Your Own Laser Cut Wooden Puzzles
Start creating your own laser cut wooden puzzles and discover how rewarding it can be to blend creativity with precision. With the right materials, smart design choices, proper laser settings, and a clean finish, you can craft puzzles that look professional and feel satisfying to solve.
Whether you’re making puzzles for fun, unique gifts, or even selling them for profit, the possibilities are endless. Each project is a chance to experiment, innovate, and bring your ideas to life.
